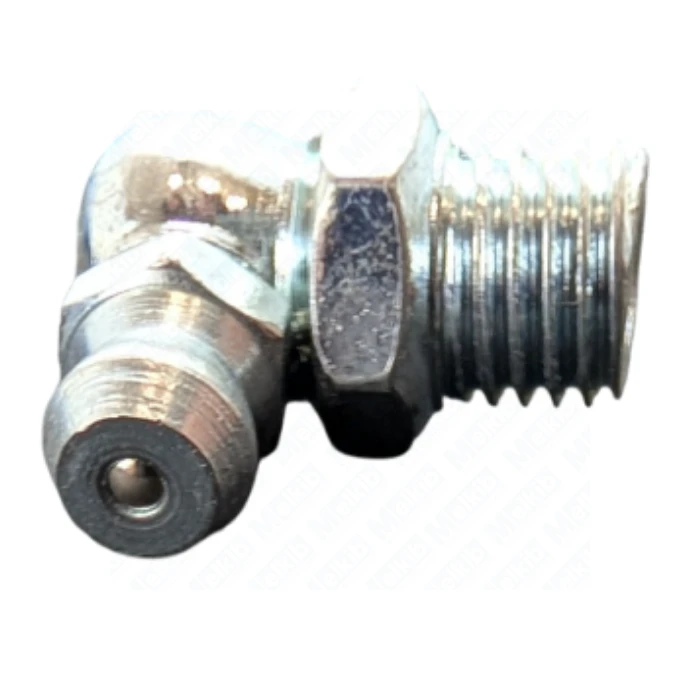

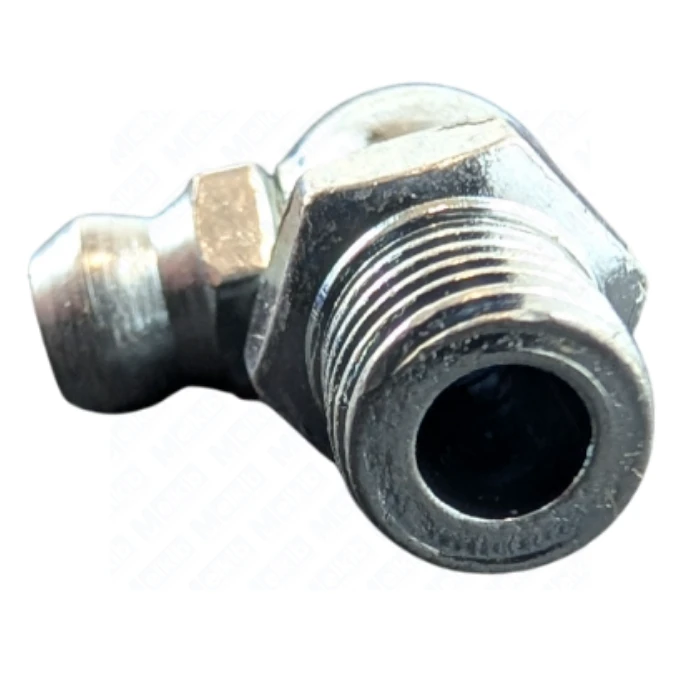

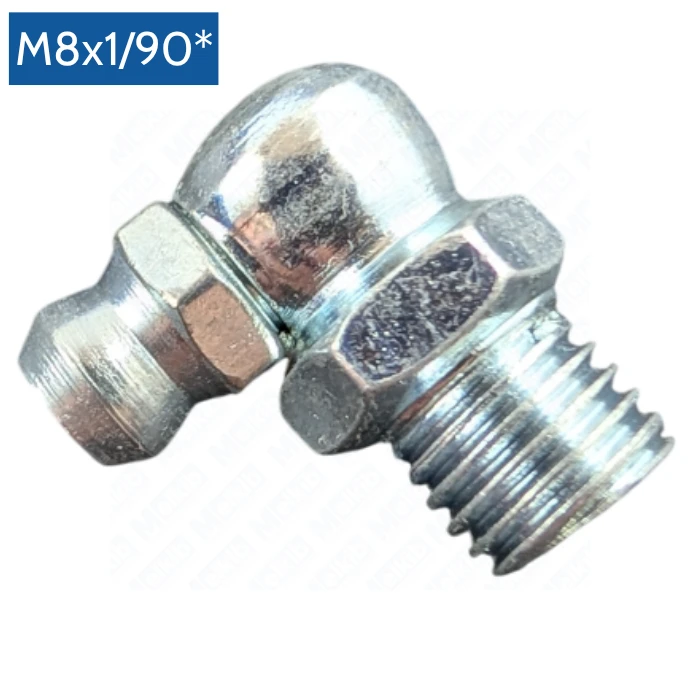

Melkib MB-0273 90° M8×1 zinc-plated angle grease fitting

Melkib MB-0273 90° M8×1 angle grease fitting for lubrication points

Melkib MB-0273 is an angle grease fitting with an M8×1 thread for supplying grease to bearings, pins, joints, guides and other moving mechanical components.

The 90° connection allows the grease gun to be attached from the side, making it easier to service lubrication points located close to a housing, guard, frame or another structural component.

Applications of the MB-0273

The fitting is intended for equipment and assemblies with an M8×1 threaded port. It can be used in industrial machines, workshop equipment, vehicles and other mechanisms requiring periodic grease replenishment.

Key features of the M8×1 90° version

The component is made of free-cutting steel and has a zinc-plated surface. Its angled construction changes the access direction without requiring modification of the lubricated assembly.

The fitting is compatible with manual and pneumatic grease guns equipped with a suitable jaw-type coupler.

Selecting the correct thread

Before purchase, confirm that the equipment requires an M8×1 thread. M8 threads may be available with different pitches, so the complete thread designation must be checked.

Installing the MB-0273

Clean the threaded port and inspect the thread condition before installation. Start threading the fitting by hand. If it does not engage freely on the first threads, verify compatibility with the port again.

Technical data of Melkib MB-0273

Storage

Store in a clean and dry place. Protect the grease passage from moisture, dust, metal particles and other contamination. Clean the fitting head before connecting the grease gun.

FAQ

Does the MB-0273 fit every M8 threaded port?

No. The fitting requires an M8×1 port. A different thread pitch means that the parts are not compatible.

Why is the fitting angled at 90°?

The 90° angle allows the grease gun to be connected from the side where access directly above the lubrication point is restricted.

Can the MB-0273 be used with a manual grease gun?

Yes. It is compatible with manual and pneumatic grease guns fitted with a suitable coupler.

Does zinc plating mean stainless steel?

No. The fitting is made of free-cutting steel and has a zinc-plated surface.
