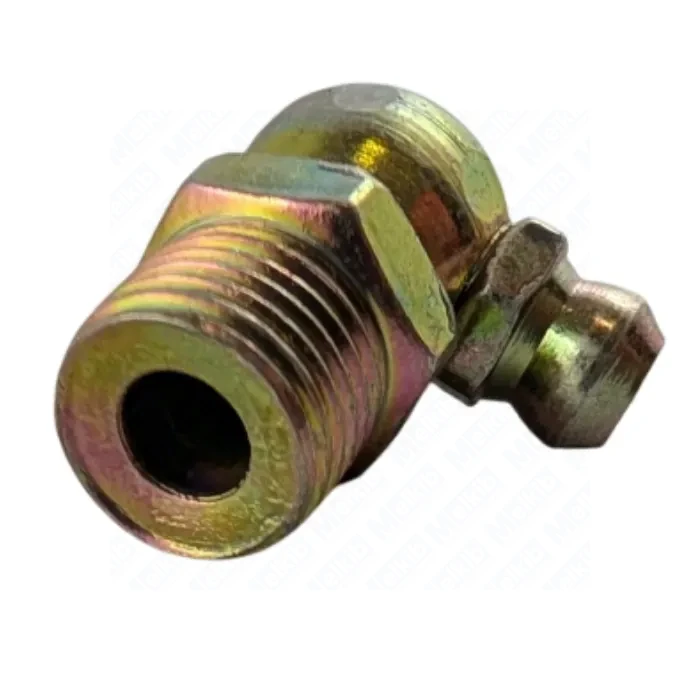

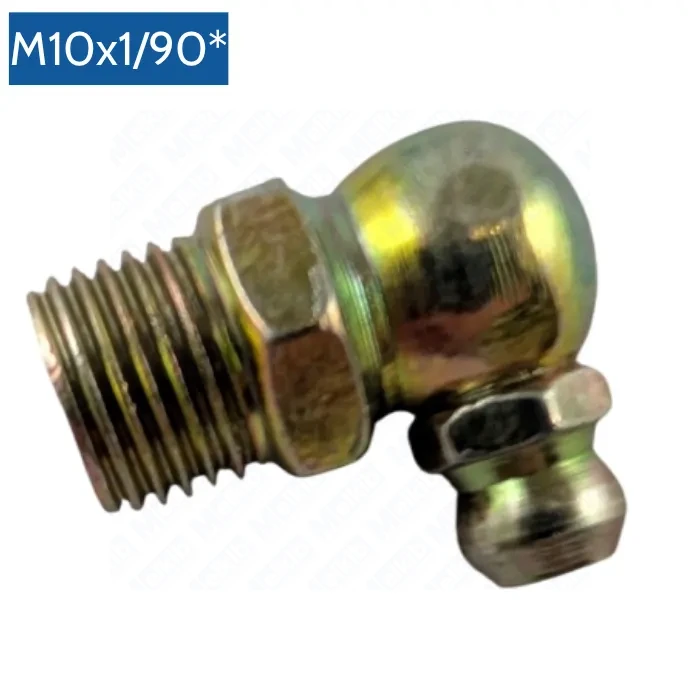

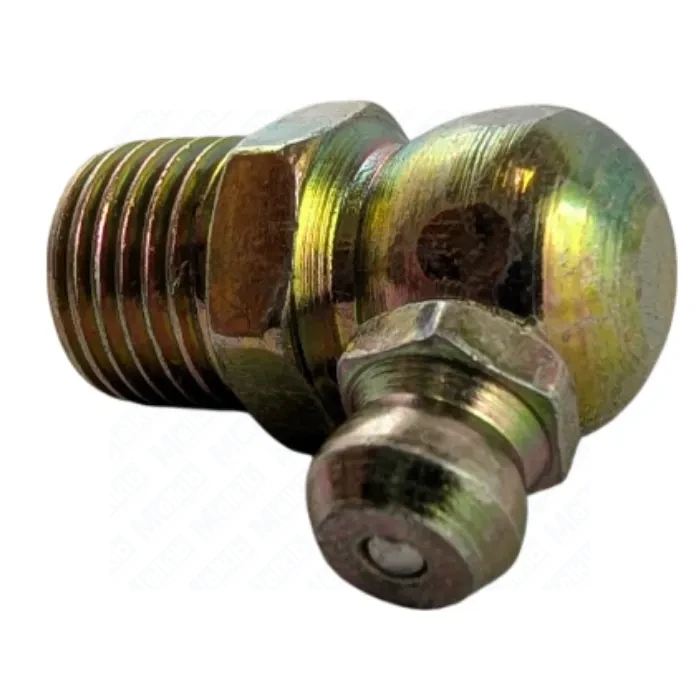

Melkib MB-0276 90° M10×1 zinc-plated angle grease fitting

Melkib MB-0276 90° M10×1 angle grease fitting for restricted access

Melkib MB-0276 is an angle grease fitting with an M10×1 thread for supplying grease to moving components of machines and equipment. The 90° connection allows the grease gun to be attached from the side where access directly above the lubrication point is restricted.

Applications of the MB-0276 grease fitting

The product can be used for lubrication points in bearings, pins, joints, guides and other mechanisms equipped with an M10×1 threaded port.

The angled design is particularly useful near machine housings, guards and structural components that prevent convenient access to a straight grease fitting.

Material and construction

The MB-0276 is made of free-cutting steel and has a zinc-plated surface. It is not made of stainless steel.

The fitting is compatible with standard jaw-type couplers used with manual and pneumatic grease guns.

When to choose an M10×1 thread

Choose the MB-0276 only when the equipment is fitted with an M10×1 port. This designation includes the M10 nominal diameter and a 1 mm thread pitch.

Before replacement, compare the new component with the removed fitting or the technical documentation of the equipment.

Installation guidance

Clean the threaded port and begin installation by hand. The fitting should thread in without binding or excessive force. After installation, check that the angled position provides free access for the grease gun coupler.

Technical data of Melkib MB-0276

Storage

Store in a clean and dry place. Protect the fitting from moisture, dust, metal particles and contamination of the grease passage. Clean its surface before each use.

FAQ

Does the MB-0276 fit every M10 thread?

No. This model is intended for an M10×1 thread. A different thread pitch will not provide the correct fit.

Can an angle fitting replace a straight fitting?

Yes, provided that the thread and mounting arrangement match and there is enough space around the port for the 90° body.

Can the MB-0276 be used with a pneumatic grease gun?

Yes. It is compatible with manual and pneumatic grease guns equipped with a suitable coupler.

What material is the fitting made from?

It is made of free-cutting steel with a zinc-plated surface.
