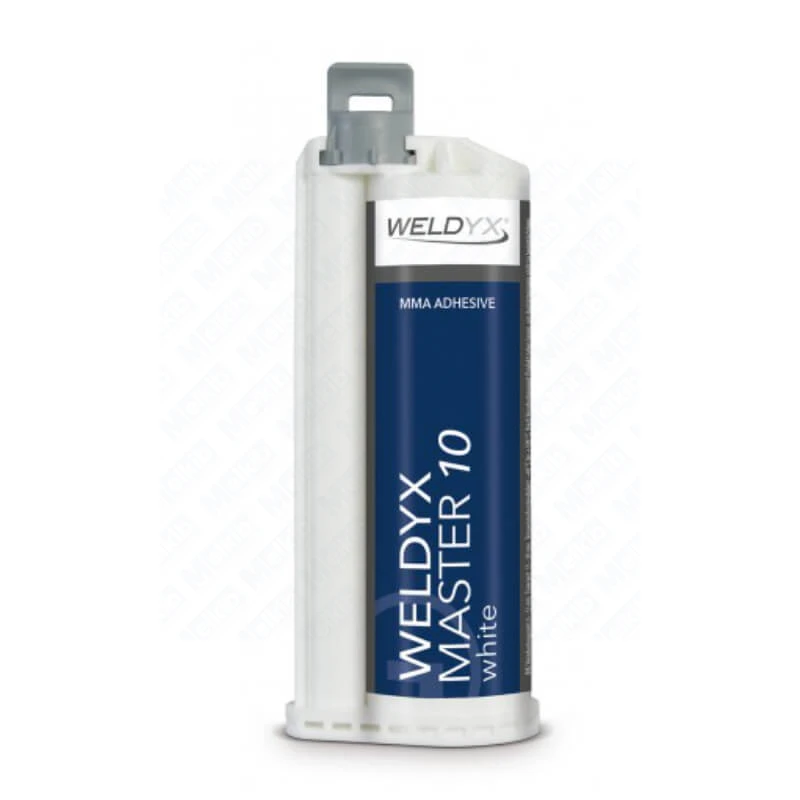

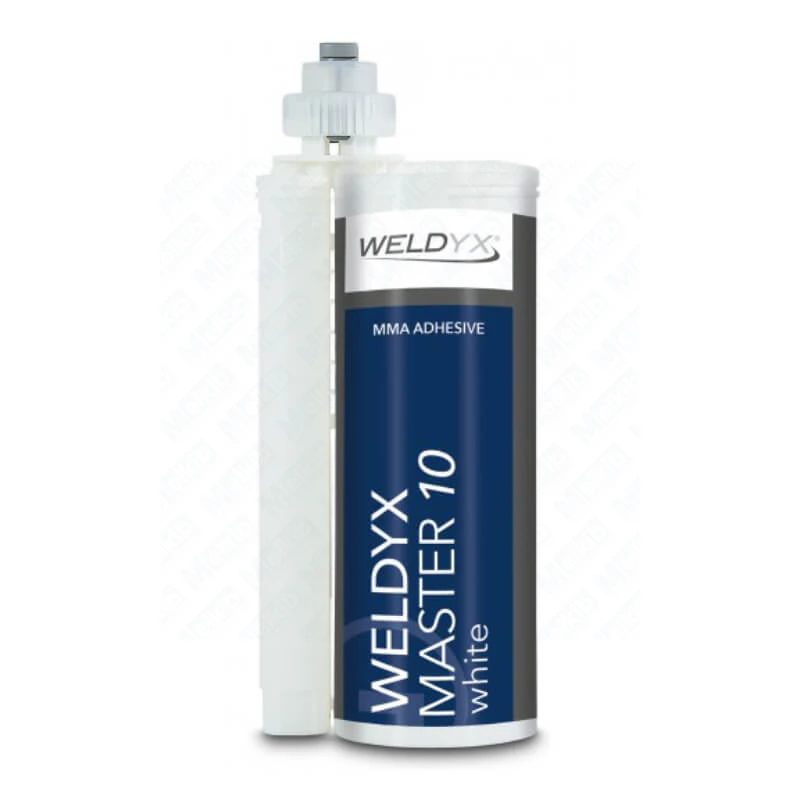

Weldyx Master 10 white 50ml, 490ml 10:1 two-component acrylic adhesive for metals, plastics, low shrinkage, thermal stability
Product code: WXM10Wq
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Select product variant:
Individual variants may differ in price
Secure purchase guarantee
Product description
Weldyx Master 10 white is a high-performance two-component adhesive, created for structural connections of metals, composite materials and plastics. It allows you to create strong, flexible and durable structural connections. Thanks to its flexibility, it is ideal for gluing materials with different thermal expansion coefficients. This adhesive is characterized by low shrinkage and is available in versions with different reaction times, allowing the user to achieve accurate connections in a timely manner. It does not require the use of a primer, which speeds up the gluing process and saves time and costs.
Properties:
- Perfect for body construction, production and repairs.
- Ideal for gluing materials with different thermal expansion coefficients.
- Fire protection approval of HL 3, making it suitable for use on rail vehicles with a high fire risk.
- The adhesive has low shrinkage.
- The adhesive has above-average elongation parameters (about 100%).
- Provides excellent resistance to high temperatures and many chemicals.
- Exhibits high resistance to dynamic shocks and vibrations.
Application:
- Ideal for body building, vehicle production and repair.
- Suitable for structural bonding and sealing of elements in the maritime sector.
- It can be used for the construction and repair of ventilation and air conditioning systems.
- Suitable for sealing and gluing electrical components.
- Suitable for a wide variety of metal and sheet metal working applications.
- Suitable for various plastics processing applications.
Parameters:
|
Properties (of individual components) |
||
|---|---|---|
|
Base |
Activator |
|
|
Color |
beige |
white |
|
Viscosity (mPas) |
100,000-140,000 |
80,000-120,000 |
|
Mixing ratio A:B (by volume) |
10:1 |
10:1 |
|
Mixing ratio A:B (by weight) |
9:1 |
9:1 |
|
Density (g/ml) |
0.96-1.02 |
1.05-1.15 |
|
Flash point (°C) |
+12 |
+12 |
|
Gap filling capacity (mm) |
0.25-15 | 0.25-15 |
|
Shear strength |
|
|---|---|
|
Substrate |
Shear strength(N/mm2) |
|
Glass fiber reinforced plastic (GRP) |
7-9 (substrate crack) |
|
PVC |
11-13 (substrate crack) |
|
ABS |
7-9 |
|
Cold rolled steel |
ok. 17 |
|
Aluminum |
14-18 |
|
Stainless steel |
14-18 |
|
Acrylate |
approx.19 |
|
Properties (cured glue) |
|
|---|---|
|
Color |
white |
|
Open time (min) |
6-12 |
|
Hardening time (min) |
15-30 |
|
Final strength after (h) |
24 |
|
Density (g/ml) |
0.97 |
|
Temperature resistance (°C) |
-40bis +100 |
Product features
- Cartridge type Typ F 10:1 490ml
Product safety
Manufacturer
GLUETEC Industrieklebstoffe GmbH & Co. KG
Am Biotop 8a
97259 Greußenheim, Germany
Responsible person in the EU
GLUETEC Industrieklebstoffe GmbH & Co. KG
Am Biotop 8a
97259 Greußenheim, Germany
