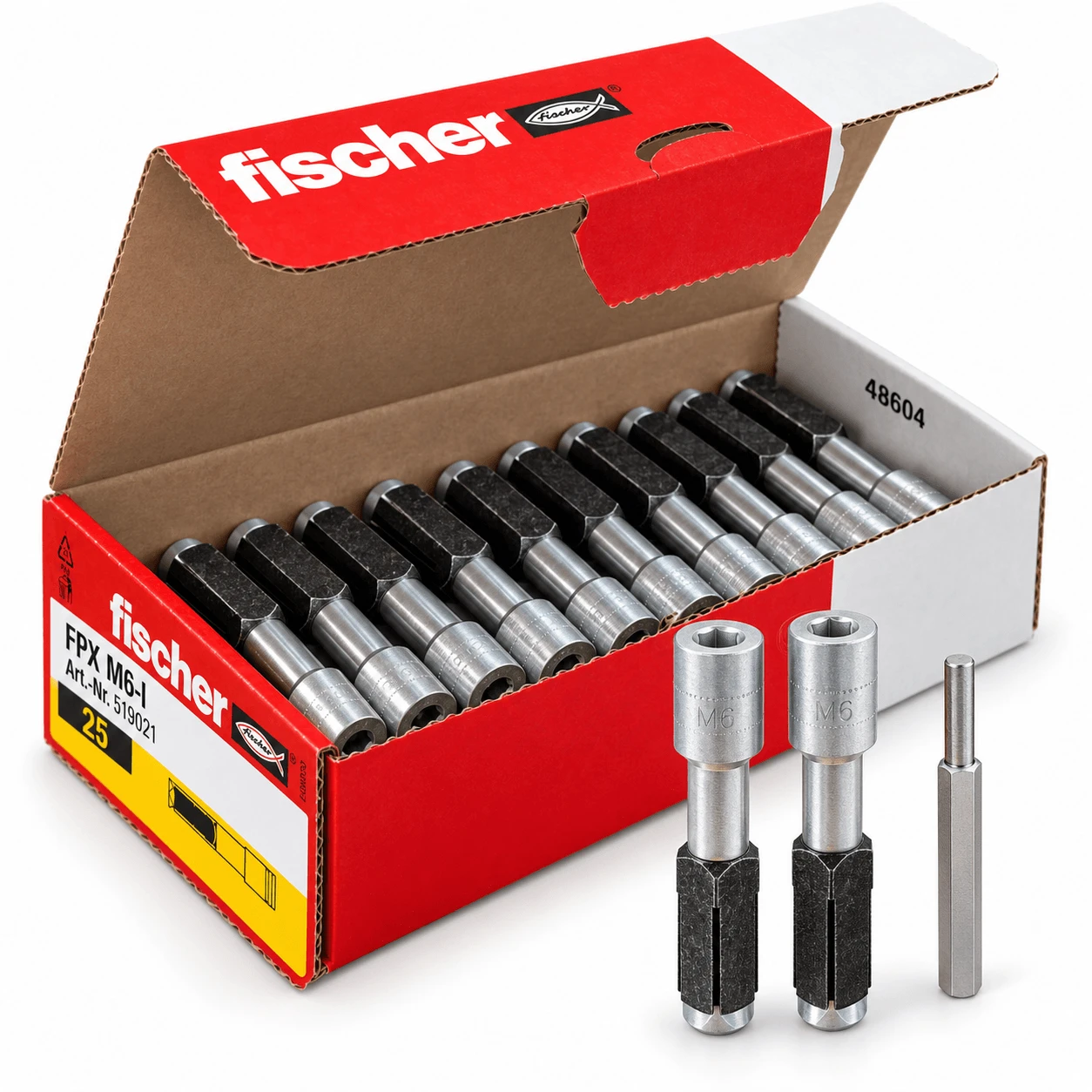

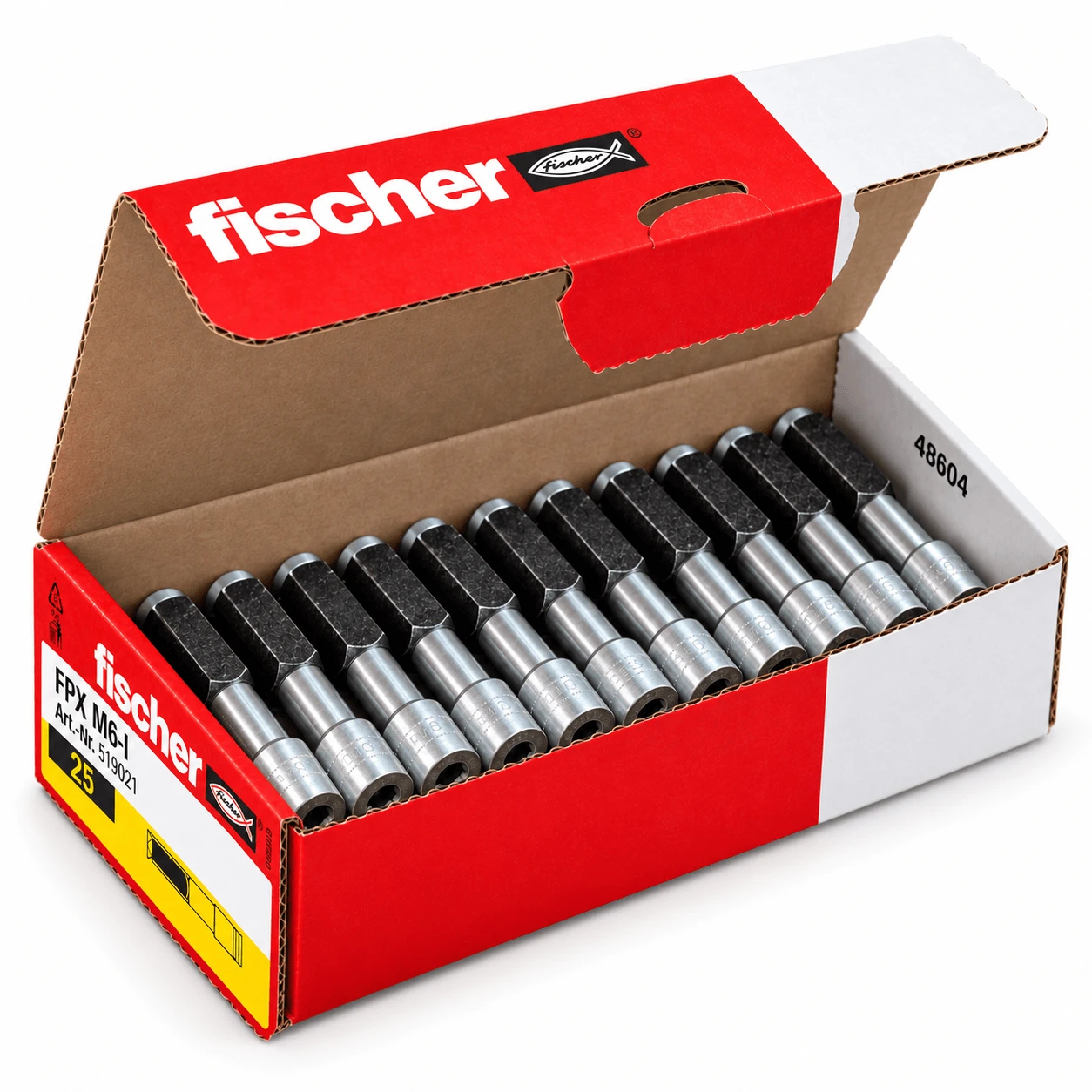

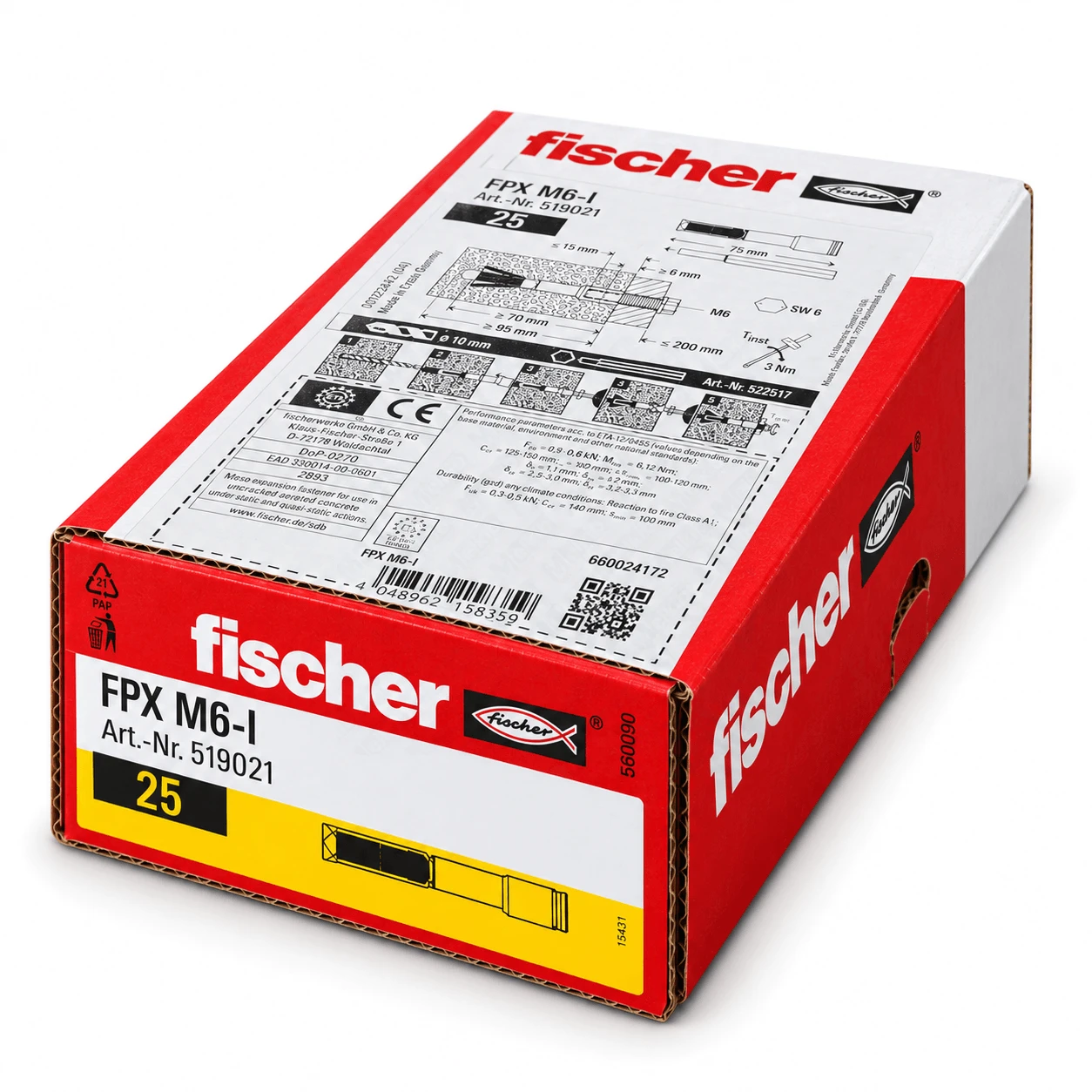

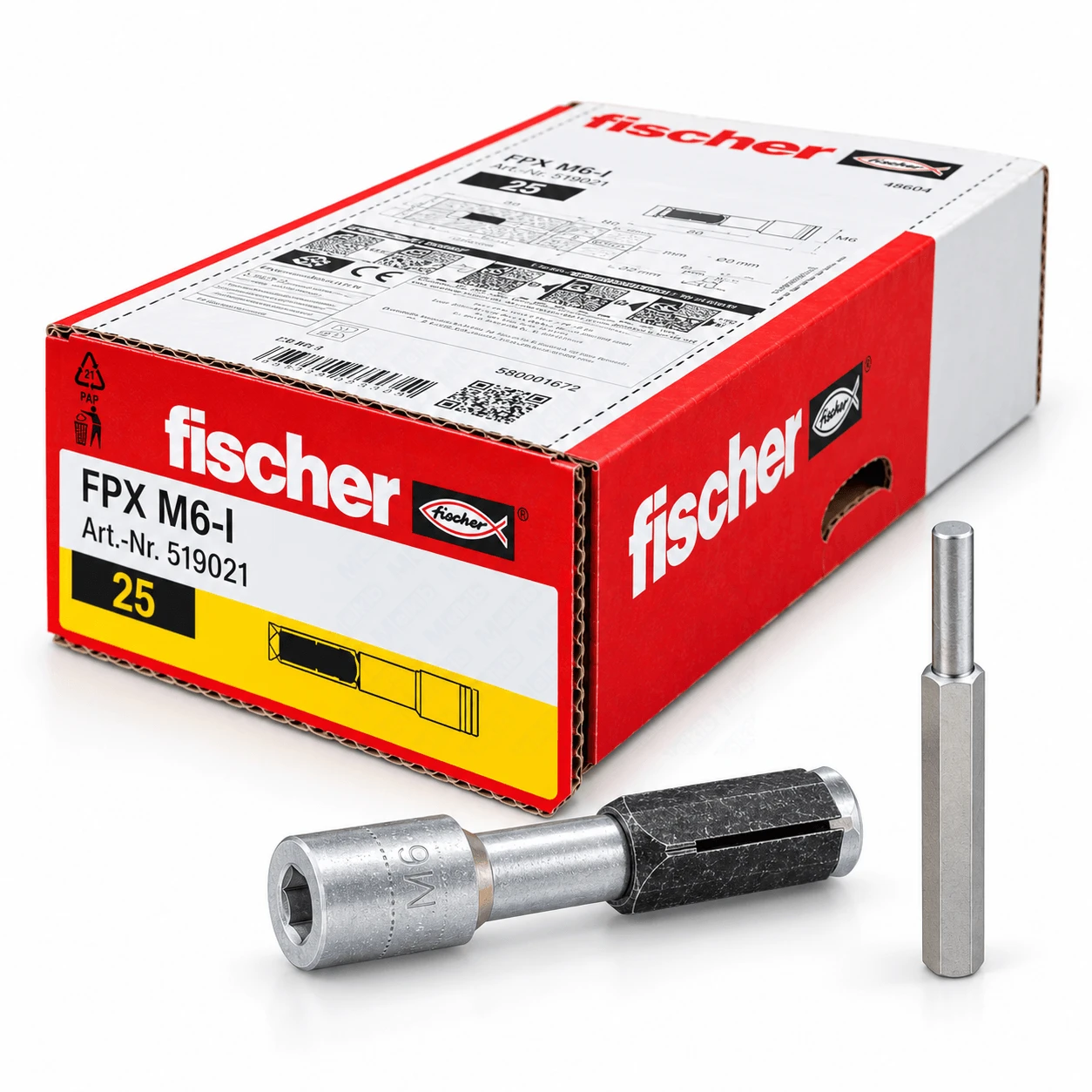

Fischer FPX M6-I aerated concrete anchor with M6 internal thread 25 pcs
Product code: 00519021
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer FPX M6-I – aerated concrete anchor with M6 internal thread
Fischer FPX M6-I is a mechanical steel anchor with an M6 internal thread designed for fastening in autoclaved aerated concrete. The M6 version creates a fixing point for a suitably selected screw or another compatible M6 threaded element.
The FPX-I system expands in four directions. During installation, the cone is drawn into the square expansion sleeve and the expansion elements create an undercut in the aerated concrete. The sleeve design helps prevent the anchor from rotating in the drill hole.
When should FPX M6-I be selected?
FPX M6-I is intended for applications requiring a fixing point with an M6 internal thread. The manufacturer specifies a minimum insertion depth of 10 mm and a maximum insertion depth of 15 mm for the mating M6 threaded element.
Applications in aerated concrete
The FPX-I system can be used, among other applications, for suspended ceilings, cable trays, pipes, ventilation ducts, railings and handrails, brackets, cabinets and stand-off installations.
The scope of ETA-12/0456 covers use in autoclaved aerated concrete within the parameters specified by the manufacturer. For safety-relevant fixings, the fixing parameters should be selected according to the ETA and the manufacturer's current load tables.
Installing FPX M6-I
For the FPX M6-I version, the manufacturer specifies a 10 mm drill hole. The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm. The anchor is 75 mm long.
FPX-I is designed for pre-positioned installation. After drilling the hole, the anchor is inserted into the substrate and expanded using the internal hex drive. The installation mechanism provides controlled setting once the correct expansion is achieved. The manufacturer states that standard installation does not require cleaning of the drill hole.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | FPX M6-I |
| Manufacturer article number | 519021 |
| Internal thread | M6 |
| Material | steel |
| Coating | electro-galvanized |
| Drill diameter d0 | 10 mm |
| Anchor length | 75 mm |
| Minimum anchorage depth hef | 70 mm |
| Minimum drill hole depth h1 | 95 mm |
| Minimum insertion depth of M6 threaded element | 10 mm |
| Maximum insertion depth of M6 threaded element | 15 mm |
| Substrate | aerated concrete / autoclaved aerated concrete |
| Packaging | 25 anchors |
| GTIN / EAN | 4048962158359 |
| European Technical Assessment | ETA-12/0456 |
| Declaration of Performance | DoP No. 0270 |
Storage
No specific storage temperature range or separate storage conditions for FPX M6-I are stated in the manufacturer data reviewed for this description.
Selecting the fixing
The M6 thread size alone does not determine the permissible load of the anchor. Load capacity depends on the properties of the aerated concrete, substrate geometry, anchor spacing, edge distances and load direction. Use ETA-12/0456 and the manufacturer's current load tables when selecting the fixing.
FAQ
What is FPX M6-I designed for?
The anchor is designed for fastening in aerated concrete, including autoclaved aerated concrete within the scope of ETA-12/0456.
What thread does FPX M6-I have?
The anchor has an M6 internal thread.
How far should the M6 threaded element be inserted?
The manufacturer specifies an insertion depth of 10 to 15 mm.
What drill bit is required?
FPX M6-I requires a 10 mm drill hole.
How deep should the drill hole be?
The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm.
What is the main difference between FPX M6-I and the M8 or M12 versions?
The key difference is the internal thread size. FPX M6-I is designed for M6 threaded elements and provides an insertion depth of 10–15 mm.
How many anchors are included in product 00519021?
The pack contains 25 Fischer FPX M6-I anchors.
