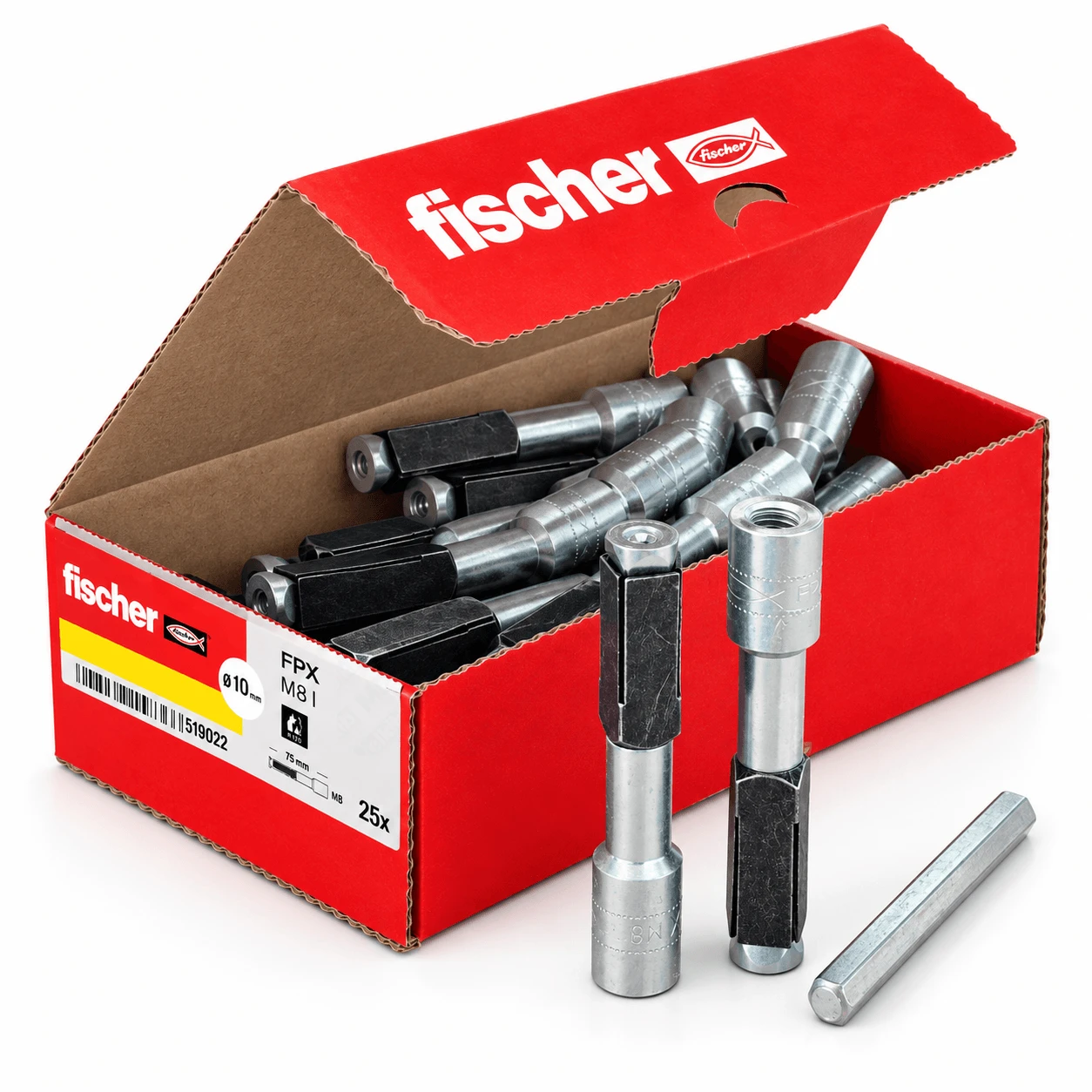

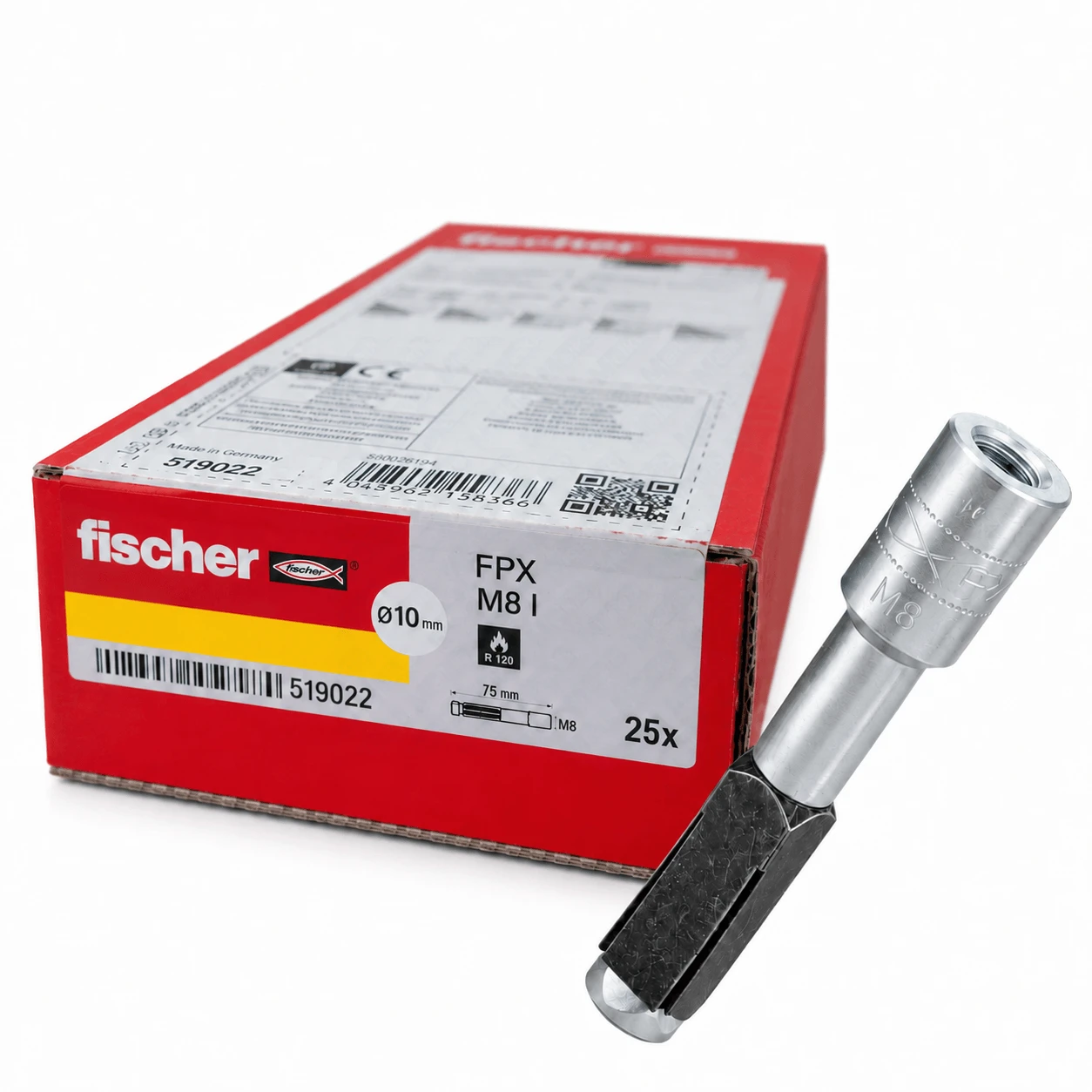

Fischer FPX M8-I aerated concrete anchor with M8 internal thread 25 pcs
Product code: 00519022
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer FPX M8-I – anchor with M8 internal thread for aerated concrete
Fischer FPX M8-I is a mechanical steel anchor with an M8 internal thread designed for fastening in aerated concrete. The M8 version creates a durable fixing point that can be used with a suitably selected M8 threaded element.
The FPX-I design uses four expansion zones which create an undercut in the aerated concrete during installation. This helps secure the anchor in the substrate and reduces rotation during installation.
What is Fischer FPX M8-I used for?
The FPX M8-I anchor is designed for fastening in aerated concrete. The system can be used, among other applications, for installing services, brackets, equipment, cable trays, ventilation ducts, pipes and other components requiring a fixing point with an M8 internal thread.
Why choose the M8 version?
The M8 internal thread allows a screw or another compatible threaded element to be selected for the specific application. The minimum insertion depth of the M8 threaded element is 8 mm and the maximum is 15 mm.
Installing the FPX M8-I anchor
For the FPX M8-I version, the manufacturer specifies a 10 mm drill hole. The minimum anchorage depth is 70 mm and the minimum drill hole depth is 95 mm. During installation, the expansion element causes the four expansion zones of the anchor to open in the aerated concrete.
The exact installation method, fixing spacing, edge distances and permissible loads must be selected in accordance with ETA-12/0456 and the manufacturer's current technical data.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | FPX M8-I |
| Manufacturer article number | 519022 |
| Internal thread | M8 |
| Material | steel |
| Coating | electro-galvanized |
| Drill diameter d0 | 10 mm |
| Anchor length | 75 mm |
| Minimum anchorage depth hef | 70 mm |
| Minimum drill hole depth h1 | 95 mm |
| Minimum insertion depth of M8 threaded element | 8 mm |
| Maximum insertion depth of M8 threaded element | 15 mm |
| Substrate | aerated concrete |
| Packaging | 25 anchors |
| GTIN / EAN | 4048962158366 |
| European Technical Assessment | ETA-12/0456 |
| Declaration of Performance | DoP No. 0270 |
Storage
No specific storage temperature range or separate storage conditions for FPX M8-I are stated in the manufacturer data reviewed for this description.
Selection and fastening safety
The load capacity of the fixing depends, among other factors, on the properties of the aerated concrete, substrate geometry, anchor spacing and edge distances. For safety-relevant fixings, use the parameters specified in ETA-12/0456 and the manufacturer's current load tables.
FAQ
Which substrate is Fischer FPX M8-I designed for?
The anchor is designed for fastening in aerated concrete.
What thread does FPX M8-I have?
The anchor has an M8 internal thread, allowing the use of a suitably selected M8 threaded element.
What drill bit is required?
The manufacturer specifies a 10 mm drill hole for FPX M8-I.
How deep should the drill hole be?
The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm.
How far can an M8 threaded element be inserted?
The insertion depth of the threaded element ranges from 8 to 15 mm.
How many anchors are included in the pack?
Product 00519022 contains 25 Fischer FPX M8-I anchors.
