Fischer SXRL 10 x 290 FUS frame fixing with TX40/SW13 electro-galvanized screw 1 pc
Product code: 00522729SZT
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

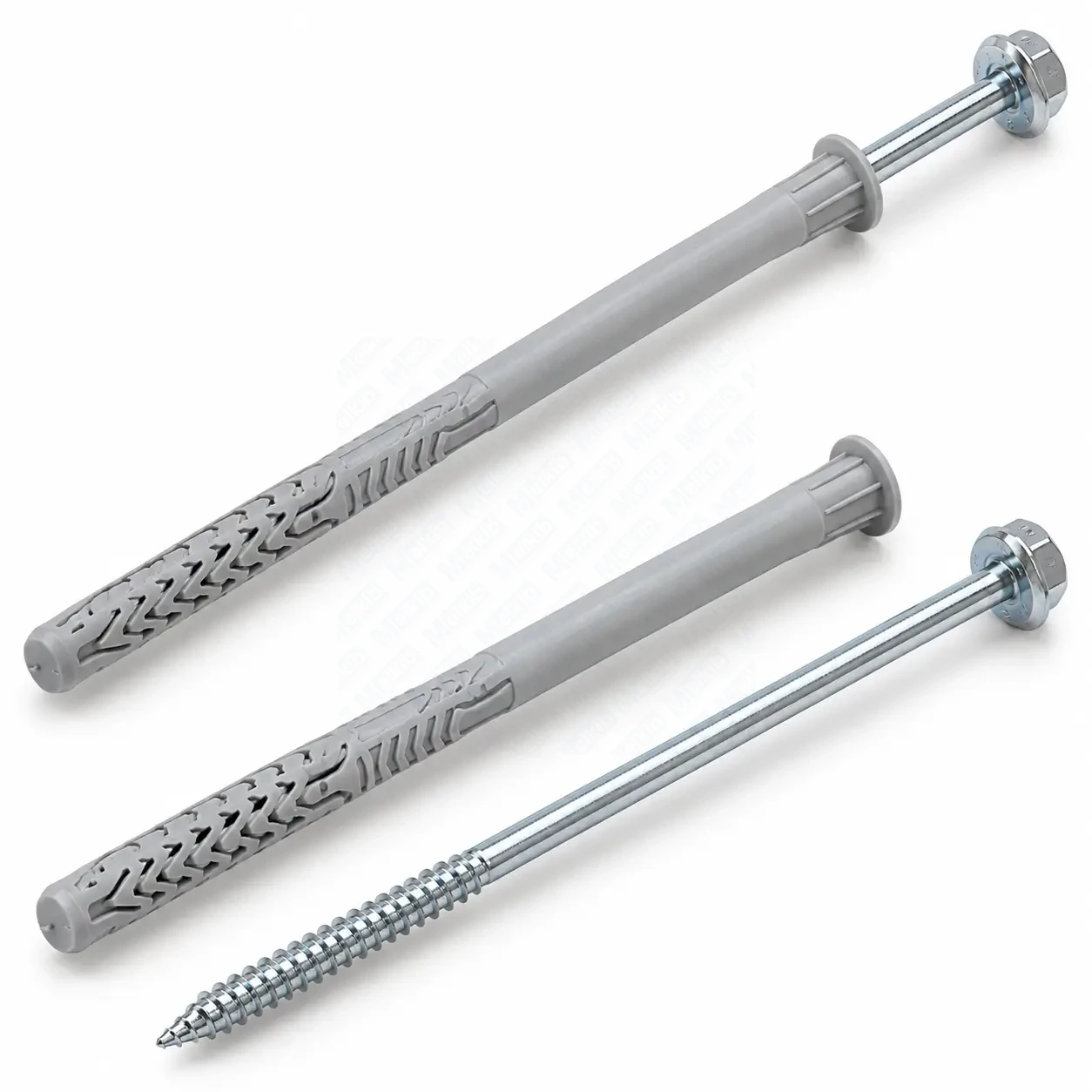

Fischer SXRL 10 x 290 FUS – single frame fixing with screw
Fischer SXRL 10 x 290 FUS is a complete frame fixing designed for through installation in concrete, masonry and aerated concrete. This Melkib sales variant contains 1 complete fixing: one SXRL 10 x 290 mm plug and one matching Ø7.0 x 299 mm screw.
The full factory pack containing 50 complete fixings is available under Melkib code 00522729.
One fixing for thick fixtures
The 290 mm plug length makes SXRL suitable where a large distance must be bridged between the surface of the fixture and the anchoring zone. Depending on the selected anchorage depth, the maximum usable length is 240, 220 or 200 mm.
At a nominal anchorage depth of 50 mm, the maximum fixture thickness is 240 mm. At 70 mm anchorage depth it is 220 mm, and at 90 mm it is 200 mm.
SXRL plug with two expansion zones
The SXRL design uses two expansion zones. In hollow building materials, they help distribute the load over a larger area of the substrate. In solid materials and aerated concrete, both zones work together as a long expansion section.
Longitudinal ribs help prevent the plug from rotating in the drill hole while the screw is tightened.

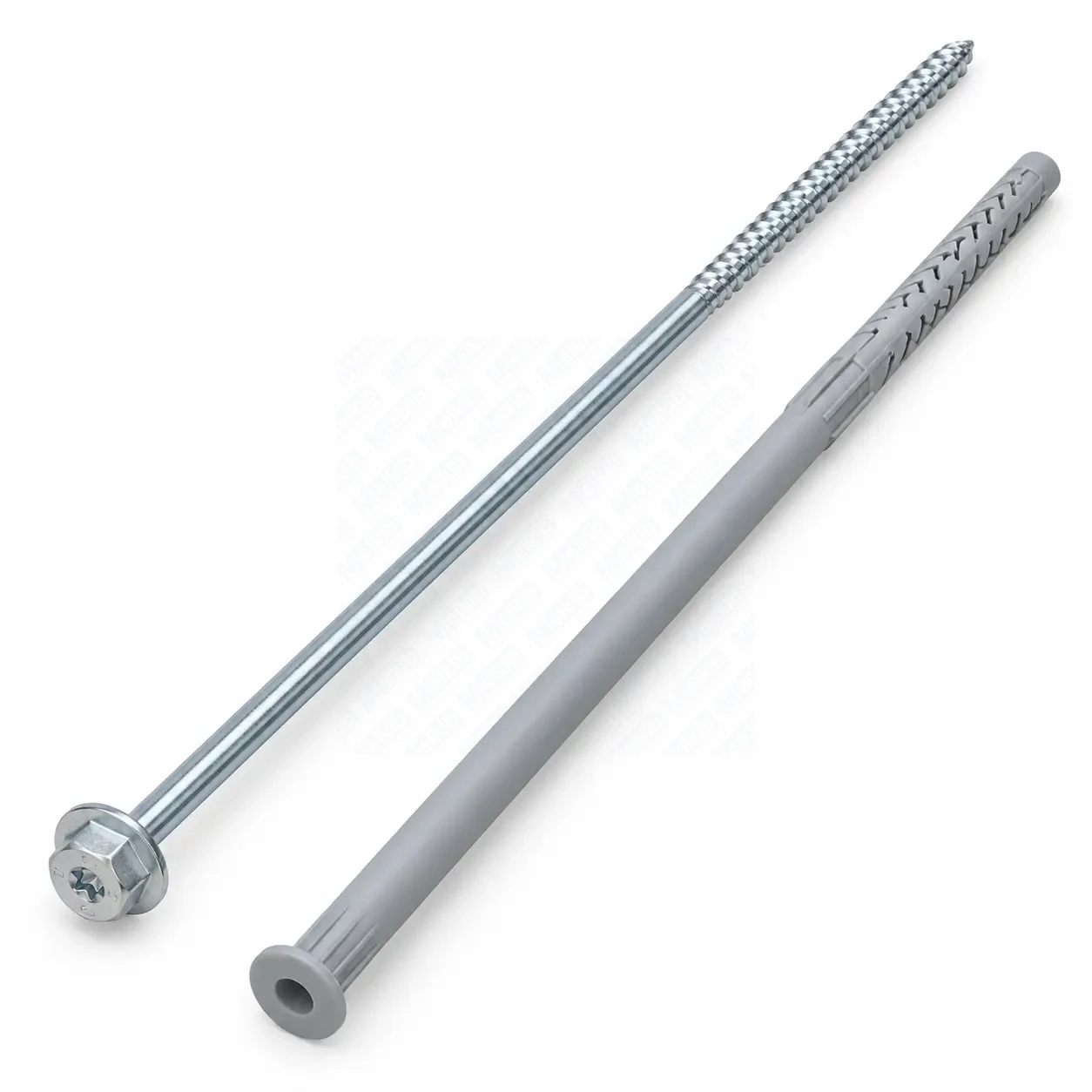

FUS screw with TX40 / SW13 drive
The fixing is supplied with a Ø7.0 x 299 mm electro-galvanized steel screw. It features an SW13 hexagonal head, a TX40 recess and an integrated washer. This configuration is particularly practical for fastening metal components.
Applications
SXRL 10 x 290 FUS can be used for applications including façade, ceiling and roof substructures, metal brackets, cladding, windows, gates, doors, beams, cabinets, wall-mounted cupboards, ducts and cable trays.
The ETA covers defined applications in concrete, solid and hollow masonry and aerated concrete. Permissible loads and installation conditions must be selected in accordance with ETA-07/0121.
Through installation
SXRL 10 x 290 FUS requires a 10 mm drill hole. The minimum drill hole depth for through installation is 300 mm.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Series | SXRL |
| Version | SXRL 10 x 290 FUS |
| Manufacturer article number of the base product | 522729 |
| Plug / drill diameter | 10 mm |
| Plug length | 290 mm |
| Screw | Ø7.0 x 299 mm |
| Screw material | electro-galvanized steel |
| Drive | TX40 / SW13 |
| Anchorage / max. fixture thickness – configuration 1 | 50 / 240 mm |
| Anchorage / max. fixture thickness – configuration 2 | 70 / 220 mm |
| Anchorage / max. fixture thickness – configuration 3 | 90 / 200 mm |
| Minimum drill hole depth for through installation | 300 mm |
| Installation type | through installation |
| Melkib sales unit | 1 complete fixing: 1 plug + 1 screw |
| European Technical Assessment | ETA-07/0121 |
| Declaration of Performance | DoP No. 0329 |
Fixing selection
The selected anchorage depth determines the maximum fixture thickness. The available configurations for the 290 mm version are 50/240 mm, 70/220 mm and 90/200 mm. Load capacity must be selected according to the specific substrate, fixing geometry, spacing and edge distances.
FAQ
Does 00522729SZT mean one plug only?
No. This SKU contains 1 complete fixing: 1 SXRL 10 x 290 mm plug and 1 matching Ø7.0 x 299 mm screw.
Where is the full pack available?
The full pack containing 50 complete fixings is available under Melkib code 00522729.
How thick can the fixture be?
The maximum fixture thickness is 240 mm at a 50 mm anchorage depth, 220 mm at 70 mm and 200 mm at 90 mm.
What drill bit is required?
SXRL 10 x 290 FUS requires a 10 mm drill hole.
How deep should the drill hole be?
The minimum drill hole depth for through installation is 300 mm.
How is the screw tightened?
The screw can be driven using the TX40 recess or the SW13 hexagonal head.
