AG Thermopad 30x30x1.0 mm 6 W/mK – thermal pad with adhesive for electronics and LED systems

Availability: Available - <10 pcs

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €2.09 2.09

Net price: €1.70

quantity szt.

You gain 0 points []

add to wish list

Rating:

Vendor:

Product code: AGT-159

ask about product
recommend to a friend
add your review

Description

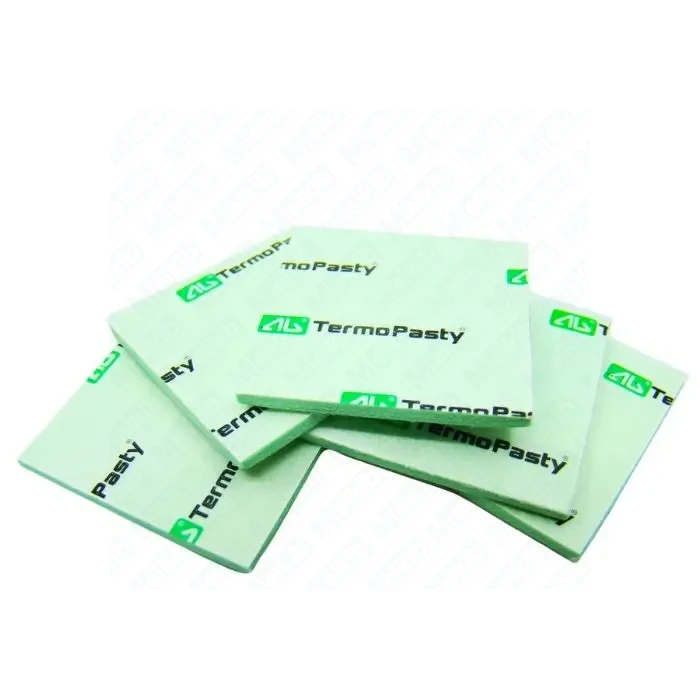

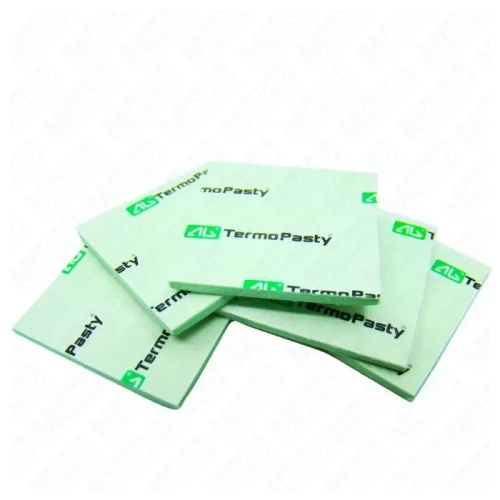

AG Thermopad 30x30x1.0 mm (6 W/mK) is a high-performance thermal interface pad with double-sided adhesive, designed for effective heat dissipation and fast mounting in electronics, LED systems, and industrial applications.

Advantages and unique features

High thermal conductivity: 6 W/mK
Double-sided adhesive layer – quick and stable installation
Wide operating temperature range: –60 °C to 200 °C
Excellent flexibility and surface conformity
No need for additional mounting materials

Properties and applications

Applications: computers, servers, LED systems, industrial cooling modules
Material: flexible thermal pad with adhesive on both sides
Dielectric properties: resistivity 1.1×10¹¹ Ω/m, dielectric constant 7.5 (1 kHz)
Format: ready-to-use 30 × 30 mm square, 1.0 mm thick

Technical parameters

Parameter	Value
Dimensions	30 × 30 × 1.0 mm
Thermal conductivity	6 W/mK
Operating temperature	–60 °C to 200 °C
Density at 20 °C	3.0 ± 0.1 g/cm³
Hardness (Shore A)	30 ± 5
Volume resistivity	1.1×10¹¹ Ω/m
Dielectric constant	7.5 (1 kHz)
Shelf life	3 years
Adhesive layer	Double-sided

Storage recommendations

Store in a dry place away from heat sources and direct sunlight. Keep in the original resealable packaging.
