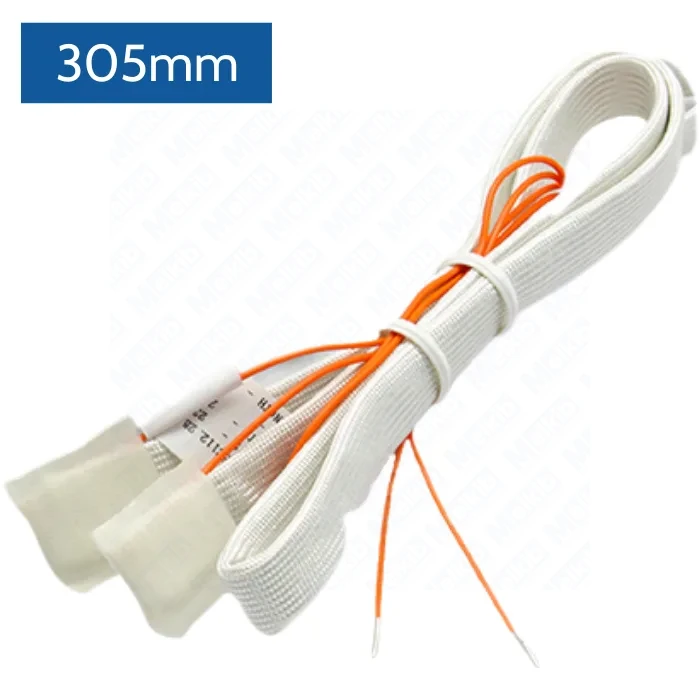

MIOTTI SCSS02.0305.SB500 anti-condensation heater 305 mm, 220 V, 20 W, 500 mm leads, condensation protection, -60°C to +200°C
Product code: MB-0464
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The MIOTTI SCSS02.0305.SB500 anti-condensation heater is designed to help prevent moisture condensation inside rotating electrical equipment. It is recommended for electric motors, generators and alternators operating in humid conditions (e.g., offshore, marine, tropical environments). The SCSS02.0305.SB500 version is 305 mm long and runs on 220 V, providing 20 W.
Advantages and unique features
- Effective protection against condensation inside electrical machines
- Design suitable for vibration and shock
- Operating temperature range from -60°C to +200°C
- High dielectric strength: 2.5 kV / 10 s
- FEP insulated leads, 200°C / 600 V (AWG 20)
- 220 V / 20 W version for typical power supply
Properties and applications
- Application: reducing condensation in motors, generators, alternators and equipment operating in humid environments
- Installation: the heater is applied around the base of the winding heads before impregnation; cover at least three quarters of the circumference
- Installation note: if the heater is longer than the circumference, do not overlap; leave at least a 5 mm gap to avoid localized overheating
- Selection safety: verify that the heater nominal voltage matches the power supply voltage
- Suggested motor frame: 71
Technical parameters
| Parameter | Value |
|---|---|
| Name / type | anti-condensation heater |
| Product code | SCSS02.0305.SB500 |
| Length (L) | 305 mm |
| Nominal voltage | 220 V AC |
| Power | 20 W (±10%) |
| Lead wire length | 500 mm |
| Temperature range | -60°C to +200°C |
| Dielectric strength | 2.5 kV / 10 s |
| Cables | FEP UL 1330 AWG 20 (200°C, 600 V) |
| UL file number | E491086 |
| Suggested motor frame | 71 |
Storage recommendations
Store in a dry place, in the original packaging, away from direct sunlight and heat sources. Protect the leads and terminations from crushing and mechanical damage to maintain electrical performance and safe installation.
FAQ
1) What is SCSS02.0305.SB500 used for?
To reduce moisture condensation inside electrical machines operating in humid environments.
2) What are the power supply parameters?
This version is rated for 220 V AC and 20 W.
3) Can the heater be overlapped during installation?
No. If longer than the circumference, do not overlap; leave at least a 5 mm gap.
4) What is the operating temperature range?
-60°C to +200°C.
5) What is the lead wire length?
This version comes with 500 mm leads.
Product safety
Manufacturer
Miotti srl
Viale del Lavoro 22
36100 Vicenza, Italy
Responsible person in the EU
Miotti srl
Viale del Lavoro 22
36100 Vicenza, Italy
