<h2>Fischer FPX M6-I – pojedyncza kotwa M6 do gazobetonu</h2> <p>Fischer FPX M6-I to stalowa kotwa mechaniczna z gwintem wewnętrznym M6 przeznaczona do mocowania w autoklawizowanym betonie komórkowym. Ten SKU Melkib obejmuje 1 kotwę sprzedawaną pojedyncz
Product code: 00519021SZT
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer FPX M6-I – single M6 anchor for aerated concrete

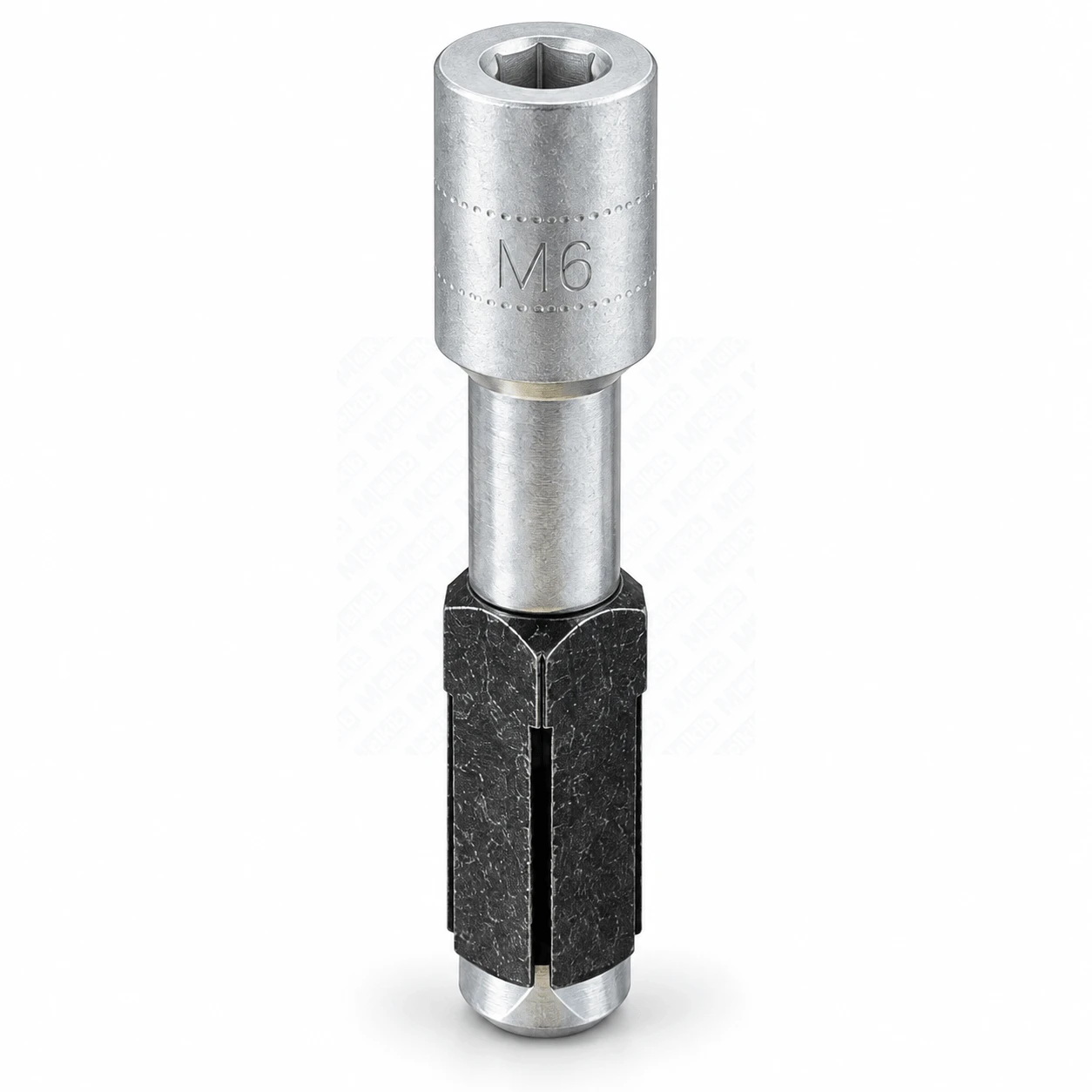

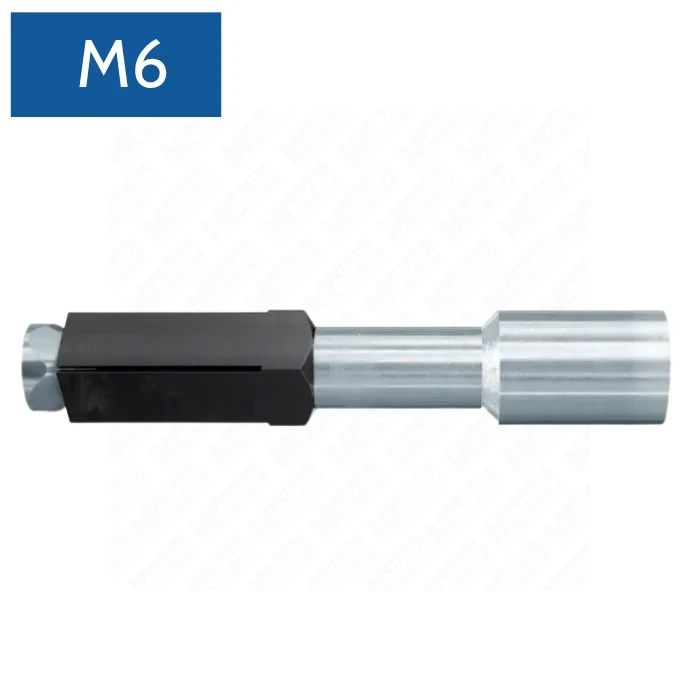

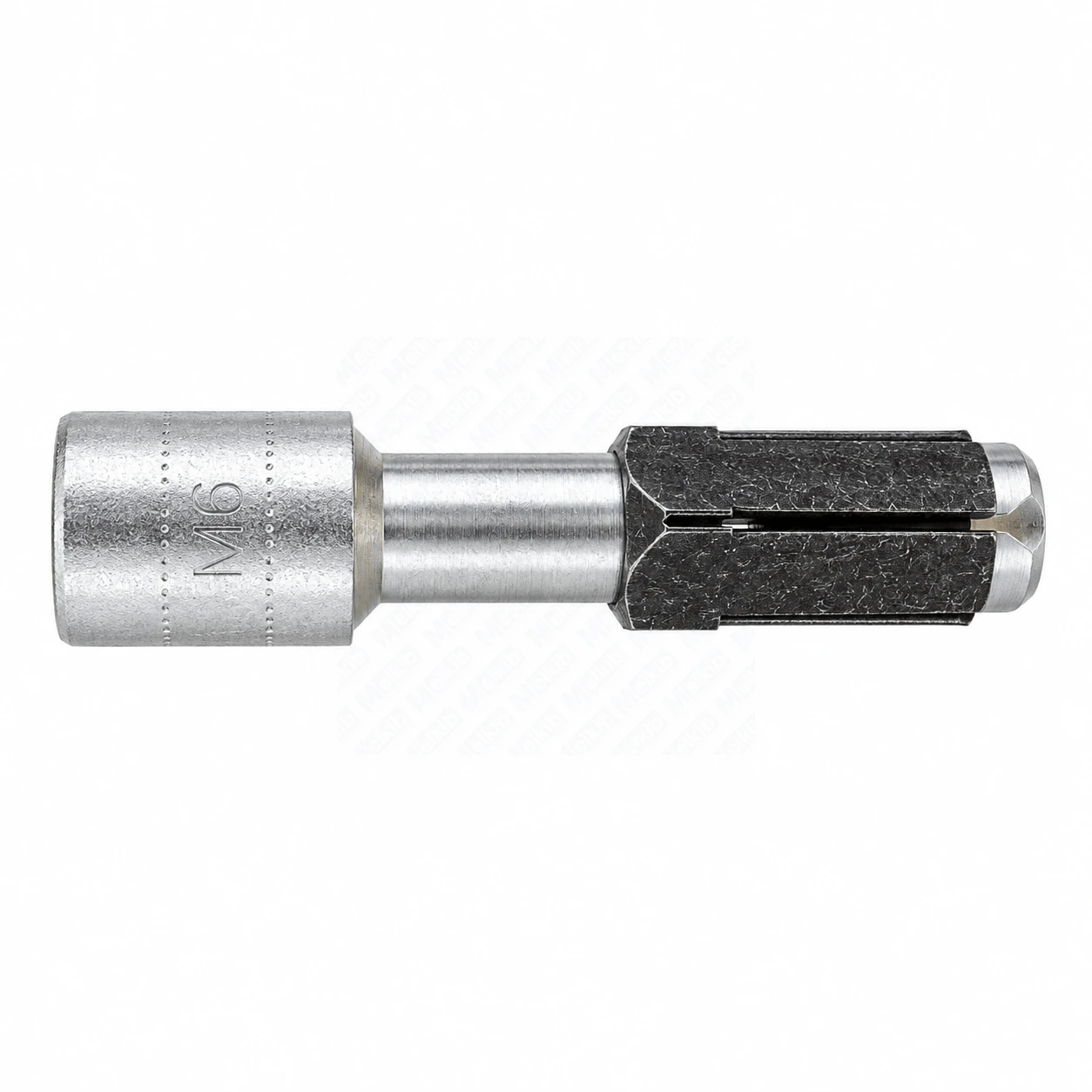

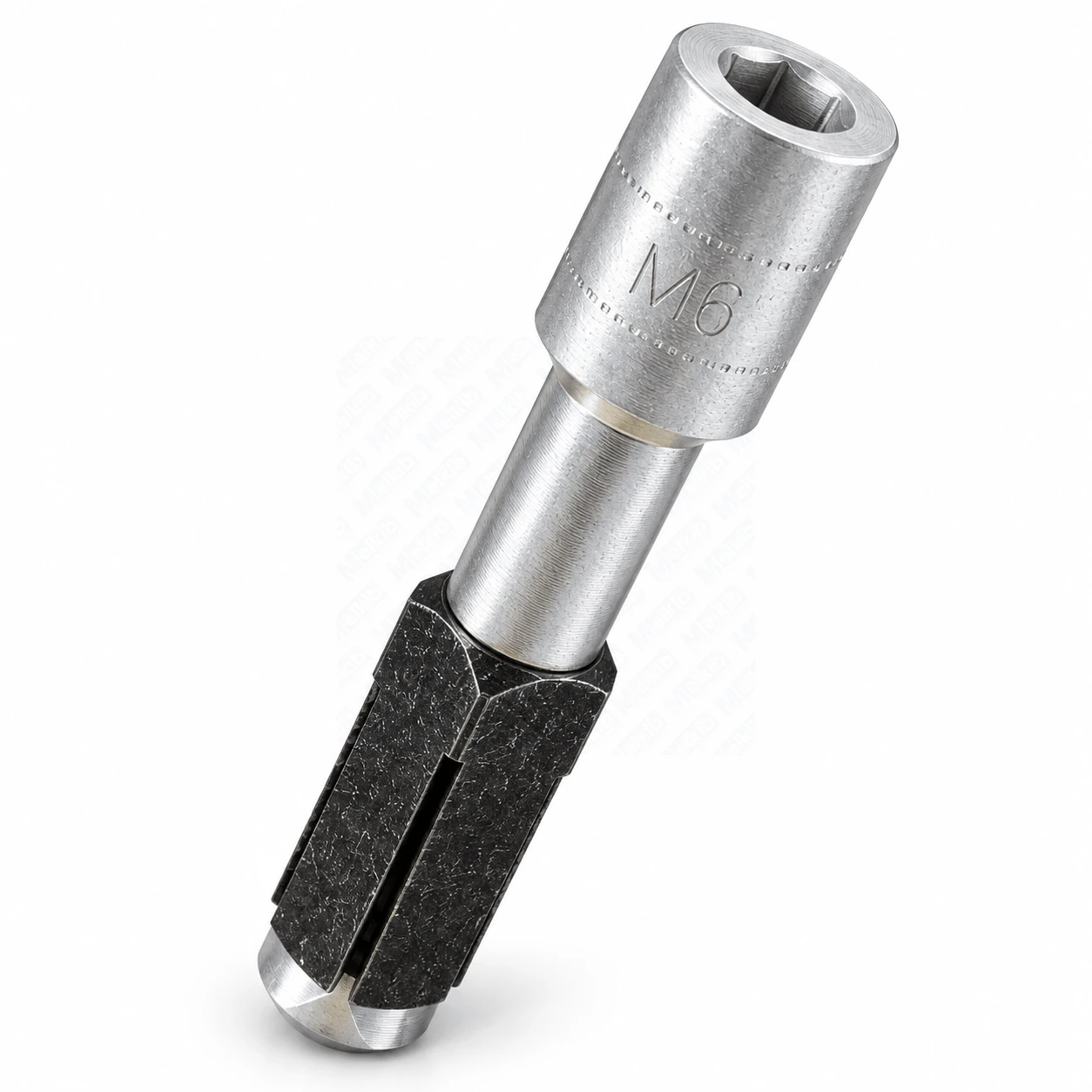

Fischer FPX M6-I is a mechanical steel anchor with an M6 internal thread designed for fastening in autoclaved aerated concrete. This Melkib sales variant contains 1 anchor and is intended for applications where only a single fixing is required instead of a full pack.
The full pack containing 25 Fischer FPX M6-I anchors is available from Melkib under code 00519021.
Single fixing point with M6 internal thread
FPX M6-I has an M6 internal thread for use with a suitably selected screw or another compatible M6 threaded element. The manufacturer specifies an insertion depth of 10 to 15 mm for the mating threaded element.
How does FPX M6-I work in aerated concrete?

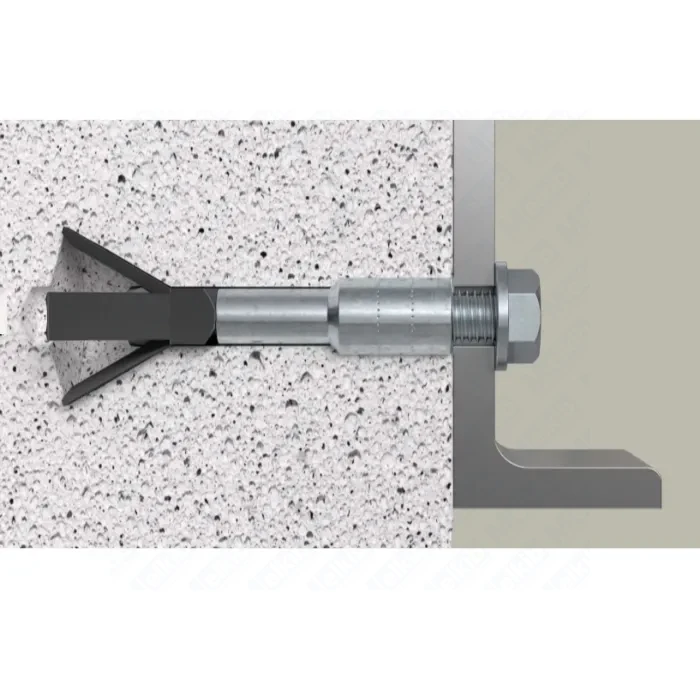

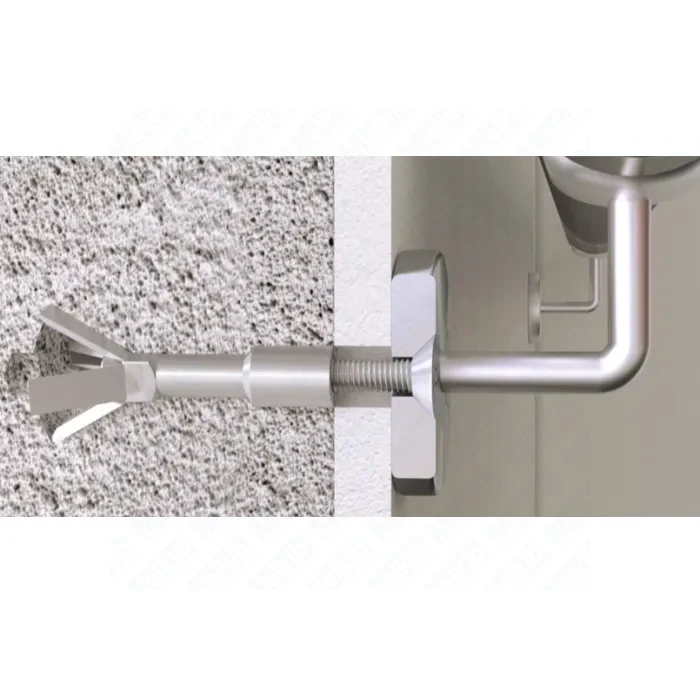

The FPX-I design expands in four directions. During installation, the expansion elements create an undercut in the aerated concrete, while the square expansion sleeve helps prevent the anchor from rotating in the drill hole.
When should the M6 version be selected?
The M6 version should be selected when the fixture requires a fixing point with an M6 internal thread. The thread size alone does not determine the permissible load. Load capacity must be selected according to the aerated concrete properties and fixing geometry in accordance with the ETA and the manufacturer's load tables.
Installation parameters of FPX M6-I
The anchor requires a 10 mm drill hole. The minimum drill hole depth is 95 mm, the minimum anchorage depth is 70 mm and the anchor itself is 75 mm long.
FPX-I is designed for pre-positioned installation. The manufacturer states that standard installation does not require cleaning of the drill hole. Detailed spacing, edge distances and permissible loads must be selected in accordance with ETA-12/0456.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | FPX M6-I |
| Manufacturer article number of the base product | 519021 |
| Internal thread | M6 |
| Material | steel |
| Coating | electro-galvanized |
| Drill diameter d0 | 10 mm |
| Anchor length | 75 mm |
| Minimum anchorage depth hef | 70 mm |
| Minimum drill hole depth h1 | 95 mm |
| Minimum insertion depth of M6 threaded element | 10 mm |
| Maximum insertion depth of M6 threaded element | 15 mm |
| Substrate | aerated concrete / autoclaved aerated concrete |
| Melkib sales unit | 1 anchor |
| European Technical Assessment | ETA-12/0456 |
| Declaration of Performance | DoP No. 0270 |
Storage
No specific storage temperature range or separate storage conditions for FPX M6-I are stated in the manufacturer data reviewed for this description.
Selection and fastening safety
Load capacity depends on the properties of the aerated concrete, substrate geometry, fixing spacing, edge distances and load direction. For safety-relevant fixings, use the values specified in ETA-12/0456 and the manufacturer's current load tables.
FAQ
Does 00519021SZT mean one anchor?
Yes. This SKU contains 1 Fischer FPX M6-I anchor sold individually.
Where can I buy the full pack of FPX M6-I?
The full pack containing 25 anchors is available from Melkib under code 00519021.
What thread does FPX M6-I have?
The anchor has an M6 internal thread.
How far can the M6 threaded element be inserted?
The manufacturer specifies an insertion depth of 10 to 15 mm.
What drill bit is required?
FPX M6-I requires a 10 mm drill hole.
How deep should the drill hole be?
The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm.
Is an installation tool included with the single anchor?
No. Product 00519021SZT contains only 1 Fischer FPX M6-I anchor.
