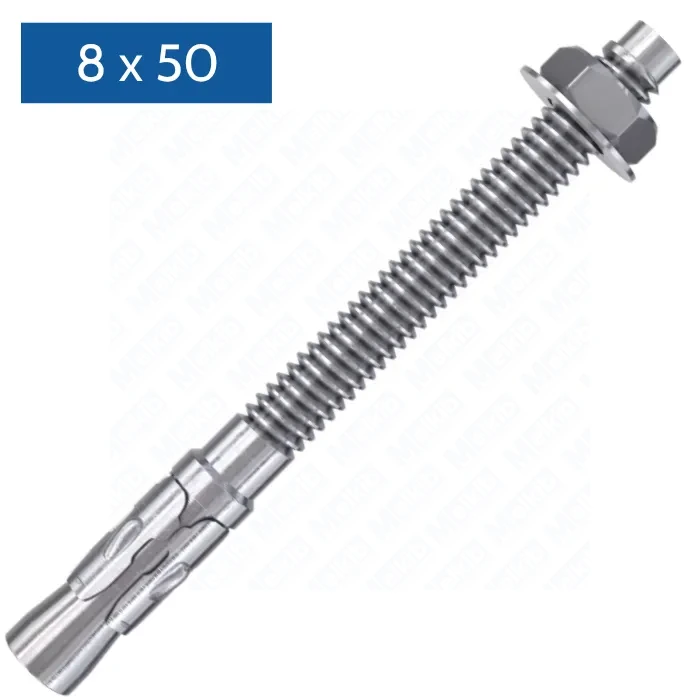

FISCHER FWA 8 × 50 – stud anchor for concrete, 13 mm wrench, box of 50
Product code: 00045644
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
FISCHER FWA 8 × 50 stud anchor is a cost-effective solution for fixings in non-cracked concrete. Standard embedment delivers high load capacity, while the reduced drilling depth speeds up installation.
Benefits and unique features
- Economic anchoring with technical assessment compliance.
- Available in electro-galvanized and hot-dip galvanized steel.
- Versions with metric or imperial thread.
- Reduced embedment allows shallower drilling and faster installation.
Properties and applications
- Base material: non-cracked concrete C20/25.
- Typical uses: steel structures, railings, brackets, ladders, cable trays, machinery, staircases, gates, façades.

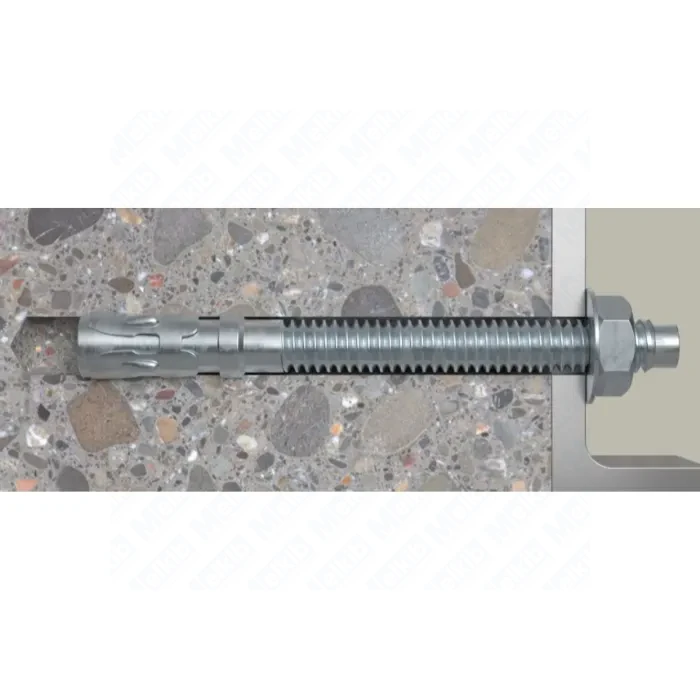

- Function: for pre-positioned and through installation; when torque is applied, the cone is drawn into the expansion clip and clamps against the hole wall.
Technical parameters
| Parameter | Value |
|---|---|
| Drill diameter (d0) | 8 mm |
| Min. hole depth, through installation (h2) | 50 mm |
| Anchor length | 50 mm |
| Wrench size | 13 mm |
| Packing / quantity | Folding box, 50 pcs |
| GTIN (EAN) | 4006209456446 |
| Approvals | DWU-FWA-01, DWU-FWA-1265 |
Storage recommendations
Store in a dry, clean place in the original packaging. Protect from moisture, contamination and mechanical damage to the thread and expansion element.
FAQ
1) Which drill bit?
Ø 8 mm; minimum hole depth 50 mm for through installation.
2) Base material?
Non-cracked concrete C20/25.
3) Approvals?
DWU-FWA-01 and DWU-FWA-1265.
4) Box quantity?
50 pcs; EAN 4006209456446.
