fischer stud anchor FWA 16×180, for non-cracked concrete, fast reduced-embedment installation, pack of 10
Product code: 00045799
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

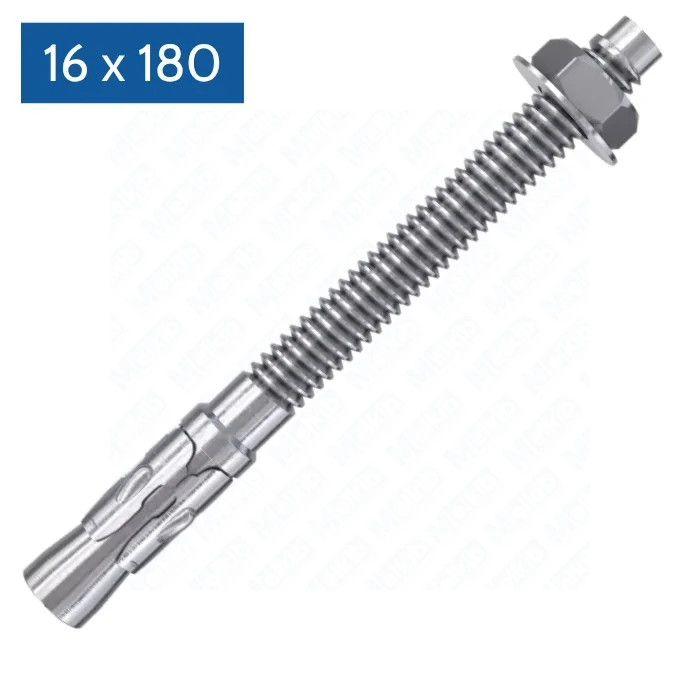

fischer Stud anchor FWA 16 × 180 is a cost-effective fixing for non-cracked concrete. At standard embedment it delivers high load capacity; the reduced embedment option allows shallower drilling for faster installation.
Benefits and unique features
- Economical anchoring with technical assessment.
- Available in electro-galvanized and hot-dip galvanized steel.
- Versions with metric or imperial thread (depending on variant).
- Reduced embedment option — shorter drilling time.
- Pre-positioned and through-installation possible.
Properties and applications
- Base material: non-cracked concrete C20/25.
- Applications: steel structures, railings, brackets, ladders, cable trays, machines, stairways, gates and façades.

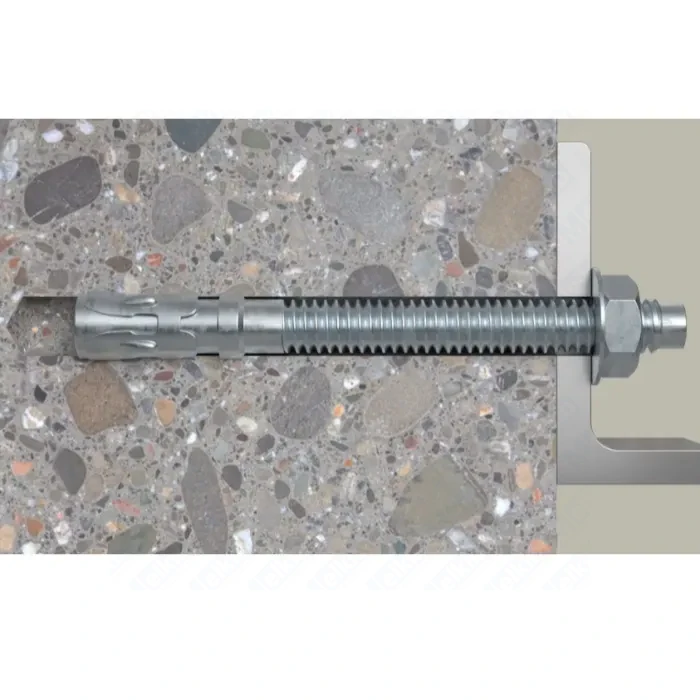

- Working principle: tightening the nut pulls the cone into the expansion clip and presses it against the hole walls.
Technical parameters
| Parameter | Value |
|---|---|
| Drill diameter (d0) | 16 mm |
| Min. hole depth for through-installation (h2) | 180 mm |
| Anchor length | 180 mm |
| Wrench size | 24 mm |
| Pack quantity | 10 pcs |
| Packaging | Folding box |
| GTIN (EAN) | 4006209457993 |
| Approvals / DoP | DWU-FWA-01, DWU-FWA-1265 |
Storage recommendations
Store dry in the original packaging, away from moisture and aggressive environments. Protect the thread and cone from damage.
FAQ
1) Which concrete class is FWA intended for?
Non-cracked concrete (e.g., C20/25) as per the technical assessment.
2) Is through-installation possible?
Yes — both pre-positioned and through-installation are supported.
3) What is the benefit of reduced embedment?
Shallower drilling shortens installation time; always follow the assessment limits.
4) Are different thread types available?
Yes — the range includes metric and imperial threads (depending on variant).
