Fischer FWA 12 × 100 stud anchor, box of 25
Product code: 00045648
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
Fischer FWA 12 × 100 stud anchor is a cost-effective fixing for non-cracked concrete, designed for fast through installation. Standard embedment provides high load capacity, while the reduced-embedment option enables shallower drilling and faster installation.
Benefits and unique features
- Economical anchoring aligned with the Technical Assessment.
- Available variants with metric or imperial thread (depending on version).
- Reduced embedment option – less drilling and quicker installation.
- Standard embedment = maximum capacity and fewer fixing points.
- Simple, repeatable pre-positioned or through installation.
Properties and applications
- Base materials: non-cracked concrete (e.g. C20/25); see registration documents for details.

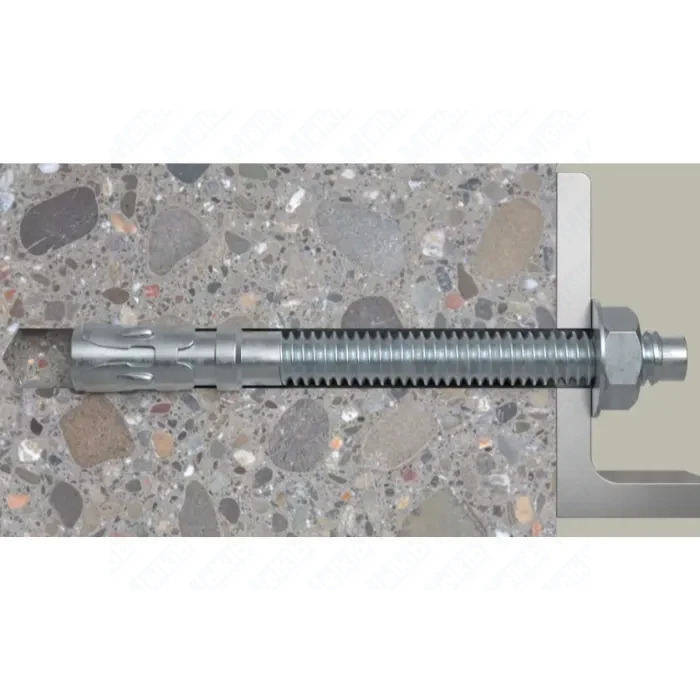

- Installation: pre-positioned or through; when tightening, the cone is drawn into the expansion clip and pressed against the hole wall.
- Typical uses: steel structures, railings, brackets, ladders, cable trays, machinery, stairways, gates, façades.
Technical parameters
| Parameter | Value |
|---|---|
| Declaration / DoP | DWU-FWA-01; DWU-FWA-1265 |
| Drill diameter (d0) | 12 mm |
| Min. hole depth, through installation (h2) | 100 mm |
| Anchor length | 100 mm |
| Wrench size | 19 mm |
| Packing / quantity | Folding box, 25 pcs |
| GTIN (EAN) | 4006209456484 |
Storage recommendations
Store in the original closed packaging in a dry, ventilated area. Protect from moisture, contamination and aggressive environments that may accelerate corrosion. Avoid mechanical damage to the thread and cone.
FAQ
1) Which drill bit for FWA 12 × 100?
Use a 12 mm bit; for through installation the minimum hole depth is 100 mm.
2) Suitable base material?
Non-cracked concrete; see DWU documents for detailed parameters.
3) Is through installation possible?
Yes, the anchor is designed for pre-positioned and through installation.
4) Typical applications?
Railings, brackets, steelwork, cable trays, gates and façade elements.
5) Are different thread types available?
Yes, the FWA range includes metric and imperial threads (depending on version).
