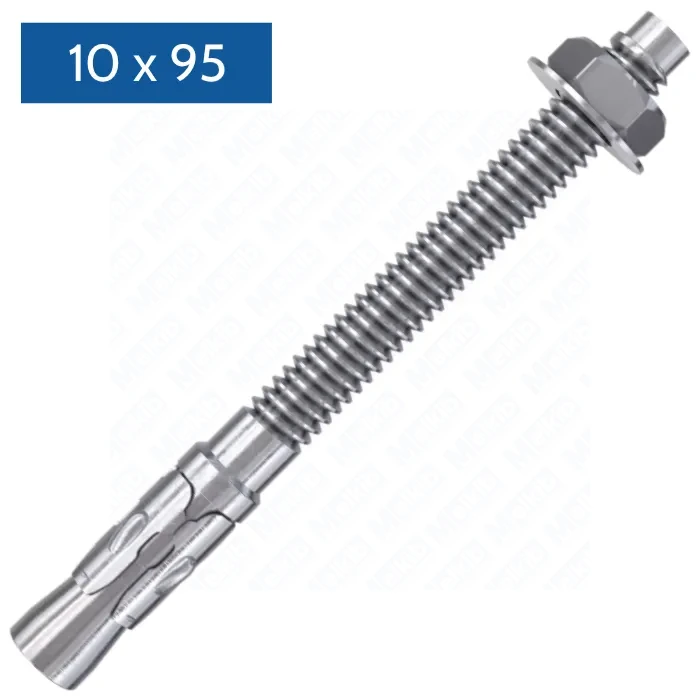

fischer FWA 10 × 95 stud anchor, non-cracked concrete, box of 50

fischer Stud anchor FWA 10 × 95 is a cost-effective, universal solution for fixings in non-cracked concrete. It allows pre-positioned and through installation, while the reduced embedment depth shortens drilling time and speeds up installation.

Benefits and unique features

• Economical fixing in accordance with the manufacturer’s technical documentation (DoP).
• Reduced embedment depth – shallower holes and faster installation.
• Suitable for pre-positioned and through installation.
• Available with metric or imperial thread (depending on version).
• Available in electro-galvanized and hot-dip galvanized steel (depending on version).

Properties and applications

• Non-cracked concrete C20/25: reliable anchoring in standard concrete substrates.
• Standard load capacity: potential to reduce the number of fixing points and use smaller base plates.
• Typical applications: steel structures, railings, brackets, ladders, cable trays, machinery, staircases, gates, façades.

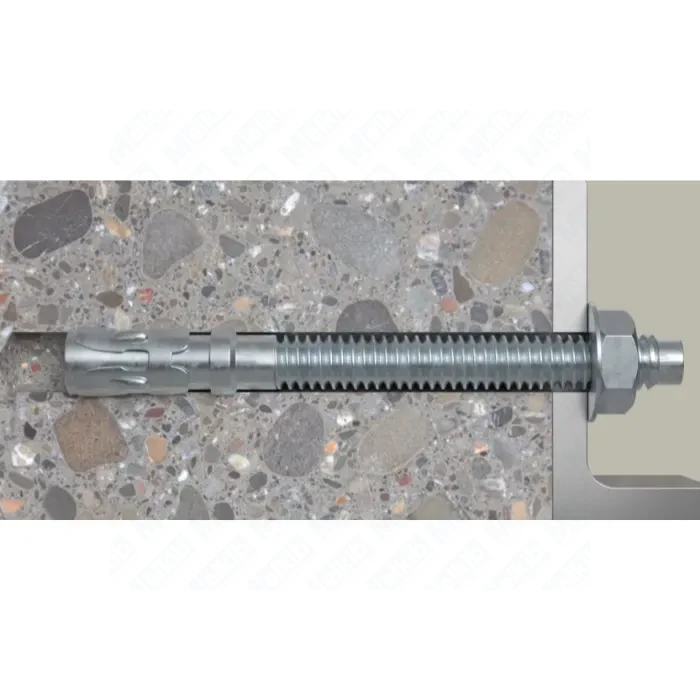

• Installation principle: when tightening the nut, the cone is drawn into the expansion clip and pressed against the hole wall.

Technical parameters

Storage recommendations

Store in the original closed packaging in a dry, ventilated area, away from moisture and heat sources. Protect from contamination and aggressive environments that may cause corrosion of steel parts.

FAQ

1) Which drill bit for FWA 10 × 95?
Use a 10 mm bit; for through installation the minimum hole depth is 95 mm.

2) Is the anchor suitable for cracked concrete?
FWA is intended for non-cracked concrete. For cracked concrete choose an appropriate anchor as required by the design.

3) How is it installed?
Set the nut, drive in the anchor and tighten. The cone is pulled into the expansion clip and pressed against the hole wall.

4) Are different coatings available?
Yes, versions in electro-galvanized and hot-dip galvanized steel exist (depending on version).

5) Recommended applications?
Steel handrails, brackets, cable trays, gates, machinery and auxiliary steelwork in non-cracked concrete.
