fischer FBN II 10/10 stud anchor, electro-galvanized, box of 50

fischer Stud anchor FBN II 10/10, electro-galvanized, box of 50, is a cost-effective, universal solution for non-cracked concrete. Standard embedment delivers high load capacity, while the reduced embedment option allows shallower holes and faster installation.

Benefits and unique features

• Maximum capacity at standard embedment – fewer fixing points and smaller base plates.
• Reduced embedment shortens drilling and installation time.
• Long thread compensates fixture thickness tolerances and enables stand-off installation.
• Few hammer blows and minimal slip while tightening – fast, simple installation.
• Pin protects the thread from damage, facilitating quicker removal of the fixture.

Properties and applications

• Base materials: non-cracked concrete C20/25–C50/60; also C12/15 and natural stone with dense structure.

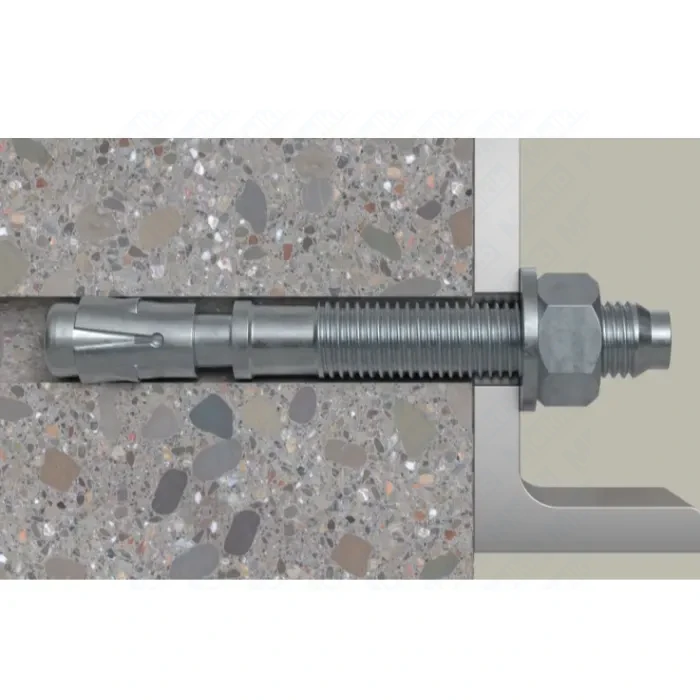

• Installation: pre-positioned or through; when tightening, the cone is drawn into the expansion clip and pressed against the hole wall.

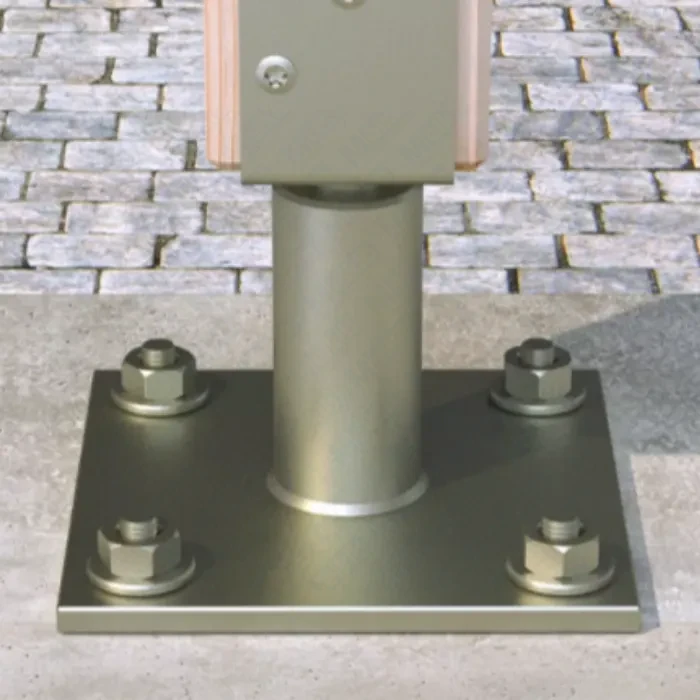

• Typical uses: steel structures, railings, brackets, ladders, cable trays, machinery, staircases, gates, façades.

Technical parameters

Storage recommendations

Store in the original closed packaging in a dry, ventilated place, away from moisture and heat sources. Protect from contamination and aggressive environments that may corrode the zinc coating.

FAQ

1) Which drill bit for FBN II 10/10?
Use a 10 mm bit; for through installation the minimum hole depth is 78 mm.

2) What is the usable fixture thickness?
Up to 10 mm at standard hef or up to 20 mm at reduced hef.

3) Suitable base materials?
Non-cracked concrete C20/25–C50/60; also C12/15 and dense natural stone under specified conditions.

4) Can it be used for stand-off installation?
Yes, the long thread compensates tolerances and enables stand-off fixing.

5) Typical applications?
Railings, brackets, cable trays, gates, steelwork and building equipment.
