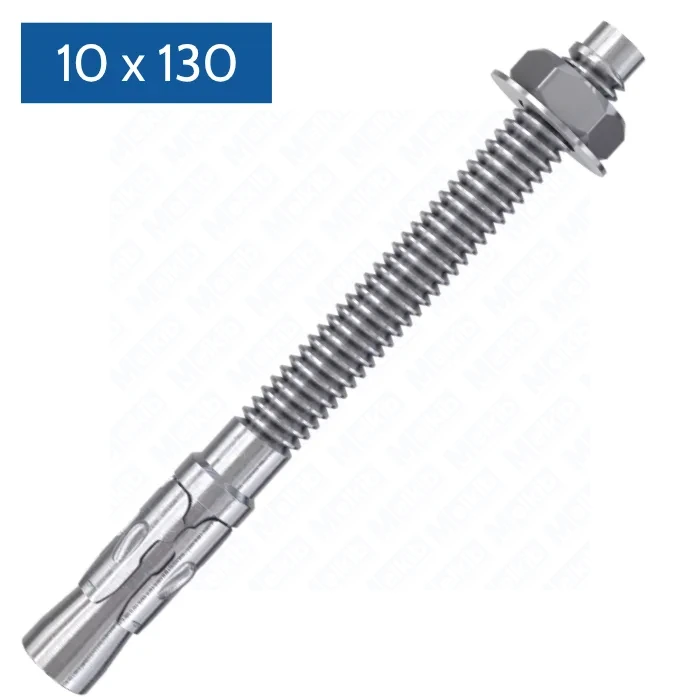

fischer FWA 10 x 130, stud anchor for C20/25 concrete, through- and pre-positioned installation, fast fixing with reduced embedment, pack of 25
Product code: 00045646
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
FISCHER FWA 10 x 130 stud anchor is a cost-effective solution for fixings in non-cracked concrete. Standard or reduced embedment depths let you balance speed and performance, while the stud design delivers secure seating and high load capacity.
Benefits and unique features
- Economical anchoring in line with Technical Assessment.
- Available material versions: electro-galvanized steel and hot-dip galvanized steel.
- Two thread types: metric or imperial (UNC), depending on the variant.
- Reduced embedment depth allows shallower drilling and faster installation.
- Suitable for pre-positioned and through-fixing installation.
Properties and applications
- Steel and façade structures: brackets, balustrades, façade components.
- Installations: cable trays and ducts, machine fixings, ladders.
- Openings and gates: staircases, industrial gates and doors.
- Base material: non-cracked concrete C20/25.

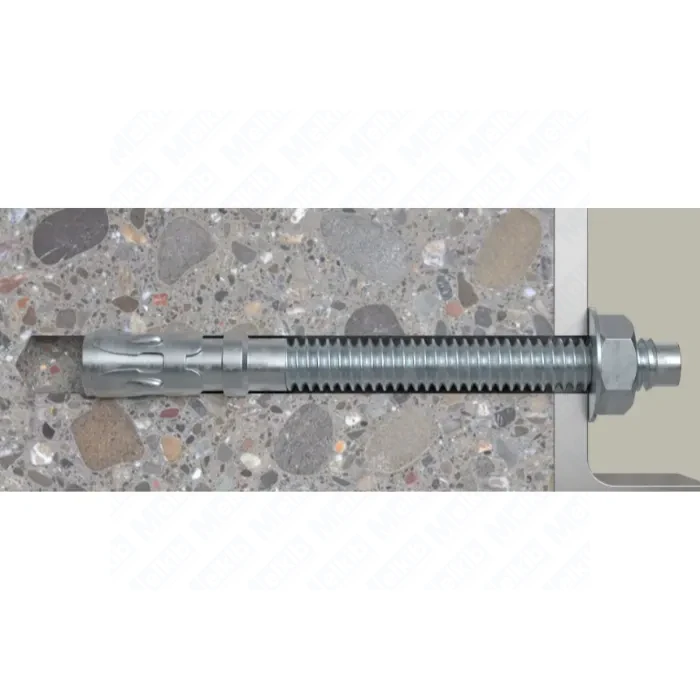

- Working principle: when tightened, the cone is drawn into the expansion clip and clamps against the hole wall.
Technical parameters
| Parameter | Value |
|---|---|
| Type | Stud anchor FWA |
| Drill diameter | 10 mm |
| Anchor length | 130 mm |
| Min. hole depth (through-fixing) | 130 mm |
| Wrench size | 17 mm |
| Installation modes | Pre-positioned and through-fixing |
| Thread versions | Metric or imperial (depending on variant) |
| Material versions | Electro-galvanized / hot-dip galvanized steel (depending on variant) |
| Packaging | Folding box |
| Quantity per pack | 25 pcs |
| GTIN (EAN) | 4006209456460 |
| Documents | Declarations of Performance: DWU-FWA-01, DWU-FWA-1265 |
Storage recommendations
Store in the original packaging in a dry place at 5–25 °C. Protect from moisture and weather; avoid contamination that could hinder installation.
FAQ
1) What concrete is FWA intended for?
Non-cracked concrete of at least C20/25.
2) Is through-fixing possible?
Yes, FWA supports both pre-positioned and through-fixing installation.
3) What drill size is required?
Ø 10 mm drill.
4) How to set the nut before installation?
Position the hex nut so that the stud protrudes approx. 3 mm beyond the nut to facilitate proper expansion.
5) Are different material and thread versions available?
Yes – electro/hot-dip galvanized and metric/imperial threads depending on the variant.
