Fischer FH II 10/25 H – heavy-duty anchor with cap nut, concrete C20/25–C50/60, 50 pcs
Product code: 00503140
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer FH II 10/25 H is a heavy-duty sleeve anchor with a cap nut for through-fixing in cracked and non-cracked concrete. The European Technical Assessment and seismic approval (C1/C2) ensure maximum safety and performance.
Benefits and unique features

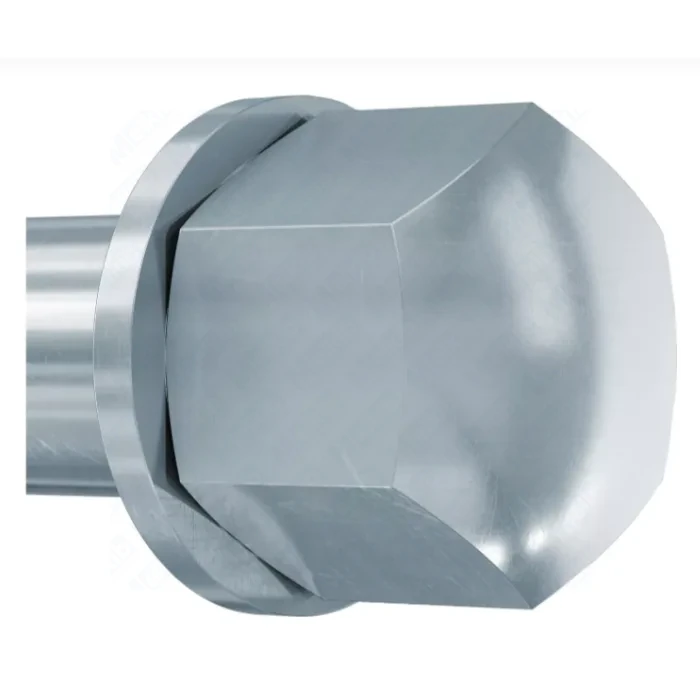

- Cap nut for a neat, protected finish.
- ETA and seismic C1/C2 approval for demanding applications.
- Screw-and-sleeve design delivers high shear capacity, reducing the number of fix points.
- Optimised geometry for easier installation and lower tightening torque.
- Black plastic ring prevents anchor rotation and absorbs deformation while tightening.
Properties and applications
- Installation type: through-fixing; the cone is pulled into the expansion sleeve and presses it against the hole walls.

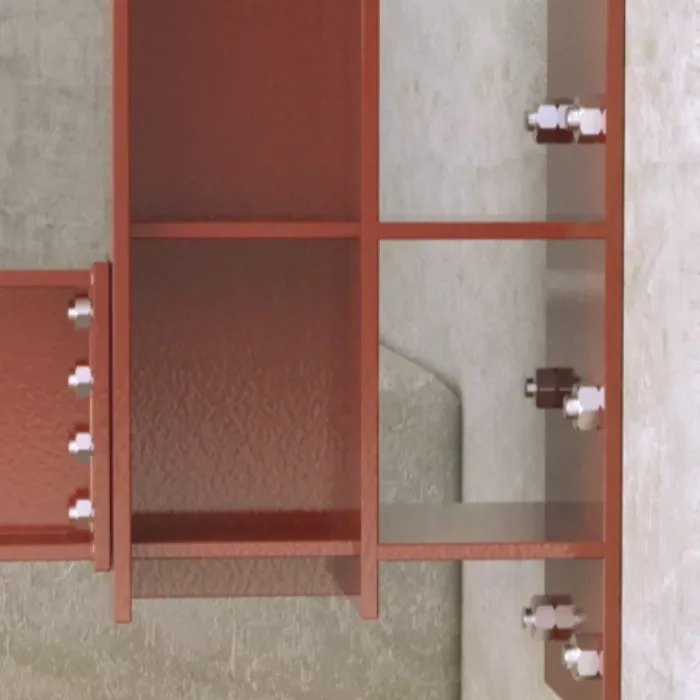

- Applications: handrails, staircases, brackets, steel structures, ladders, cable trays, machinery, gates, façades, grates.
- Base materials (per approvals): concrete C20/25–C50/60 (cracked/non-cracked); also C12/15 and dense natural stone.
Technical parameters
| Parameter | Value |
|---|---|
| Version | FH II 10/25 H (cap nut) |
| Drill diameter (d0) | 10 mm |
| Min. hole depth for through installation (h2) | 80 mm |
| Max. fixture thickness (tfix) | 25 mm |
| Thread | M6 |
| Wrench size | 13 mm |
| Packaging | Folding box |
| Quantity | 50 pcs |
| GTIN (EAN) | 4048962016802 |
Storage recommendations
Store dry in the original packaging, protected from moisture and aggressive chemicals. Avoid prolonged exposure of steel parts to water.
FAQ
1) Which concrete classes are suitable?
Concrete C20/25–C50/60 (cracked/non-cracked); also C12/15 and dense natural stone.
2) What is the maximum fixture thickness?
Up to 25 mm (tfix).
3) Required drill diameter and hole depth?
d0 10 mm; h2 80 mm for through installation.
4) Seismic use?
Approved for C1 and C2 categories.
5) Pack size and EAN?
50 pcs; EAN 4048962016802.
