Fischer FPX M10-I aerated concrete anchor with M10 internal thread 1 pc
Product code: 00519023SZT
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

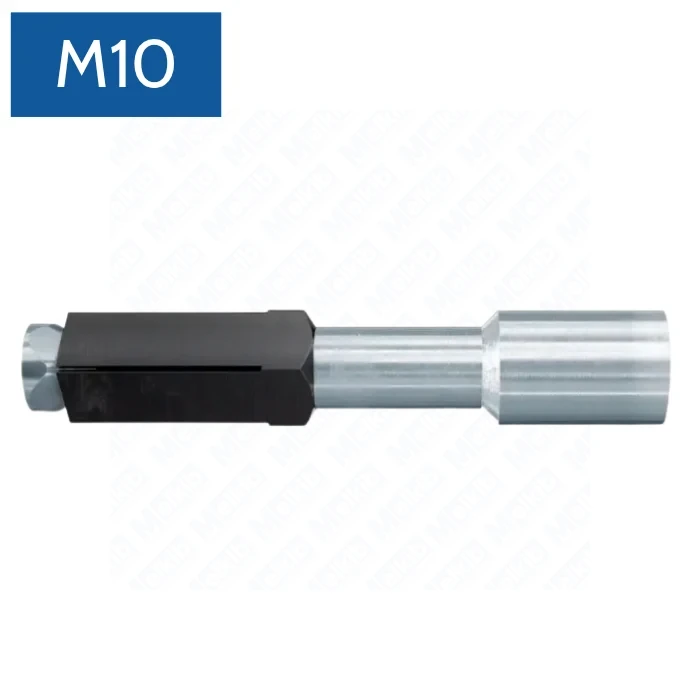

Fischer FPX M10-I – single M10 anchor for aerated concrete
Fischer FPX M10-I is a mechanical steel anchor with an M10 internal thread designed for fastening in autoclaved aerated concrete. This Melkib sales variant contains 1 anchor and is intended for customers who need a single fixing instead of a full pack.
The full pack containing 25 Fischer FPX M10-I anchors is available from Melkib under code 00519023.

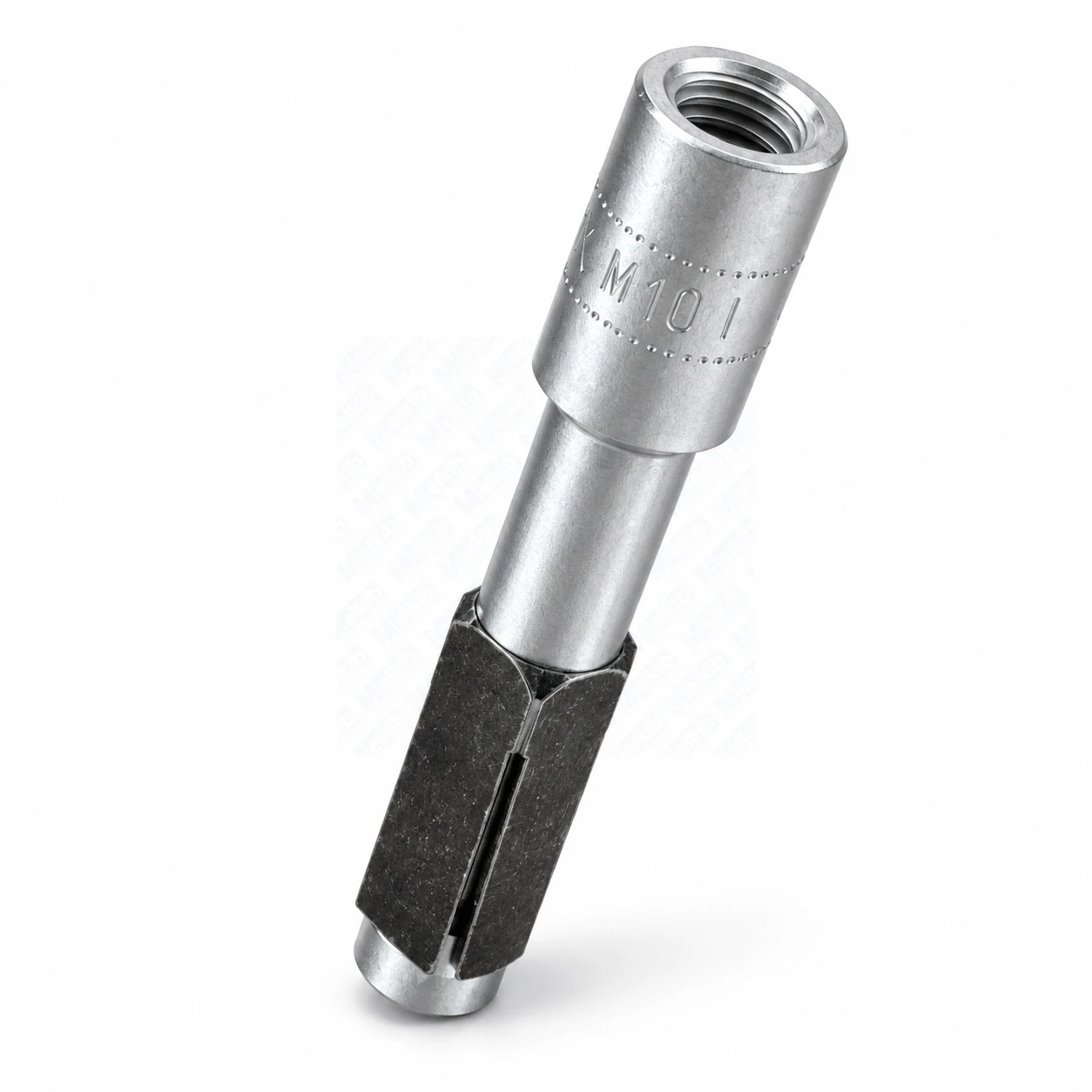

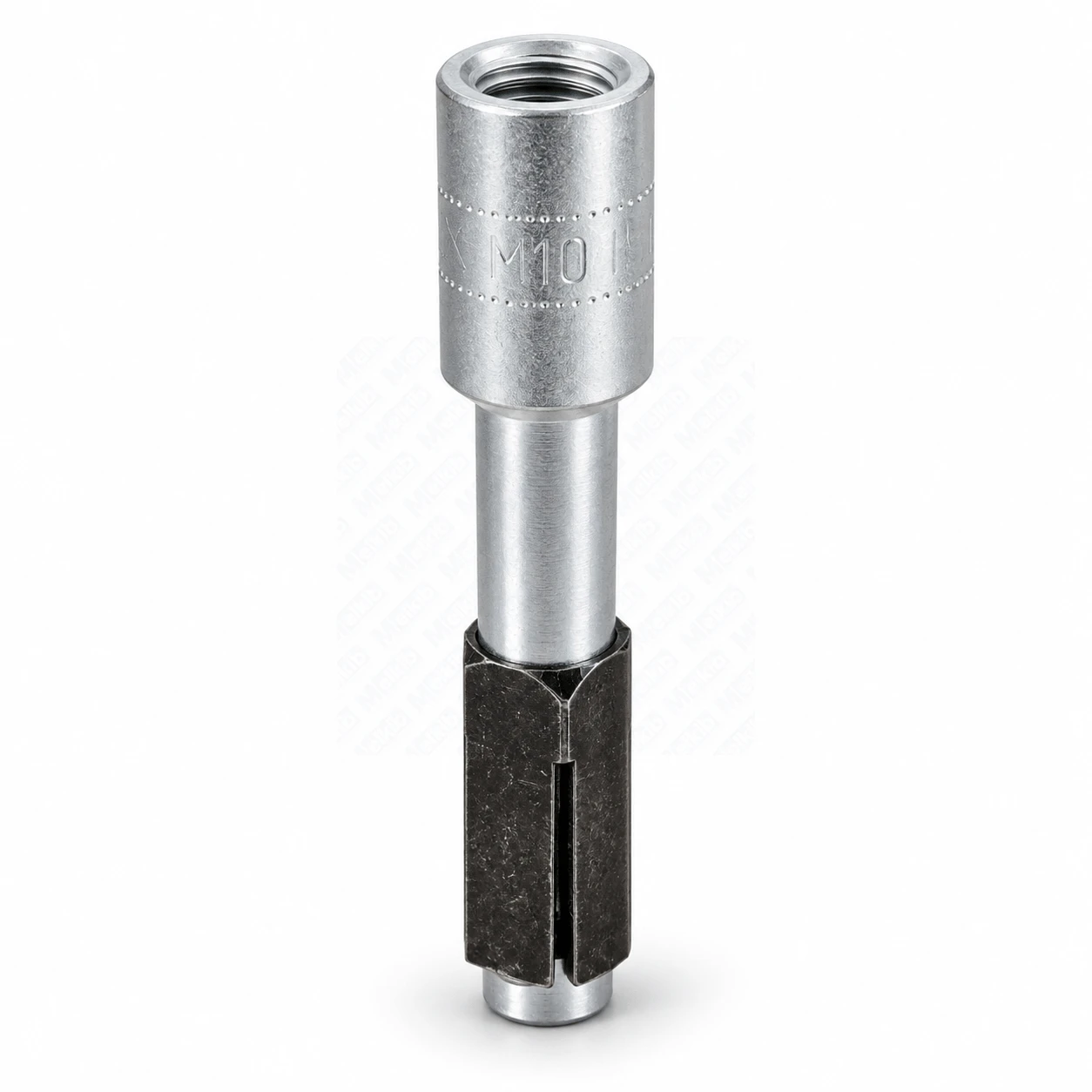

Single fixing point with M10 internal thread
FPX M10-I has an M10 internal thread for use with a suitably selected screw or another compatible threaded element. The specified insertion depth of the M10 threaded element is between 10 and 15 mm.
How does FPX M10-I work in aerated concrete?

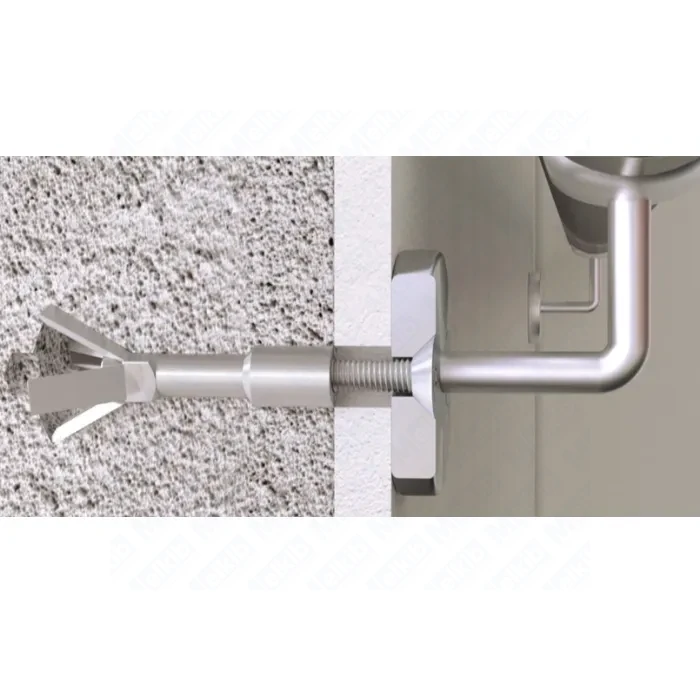

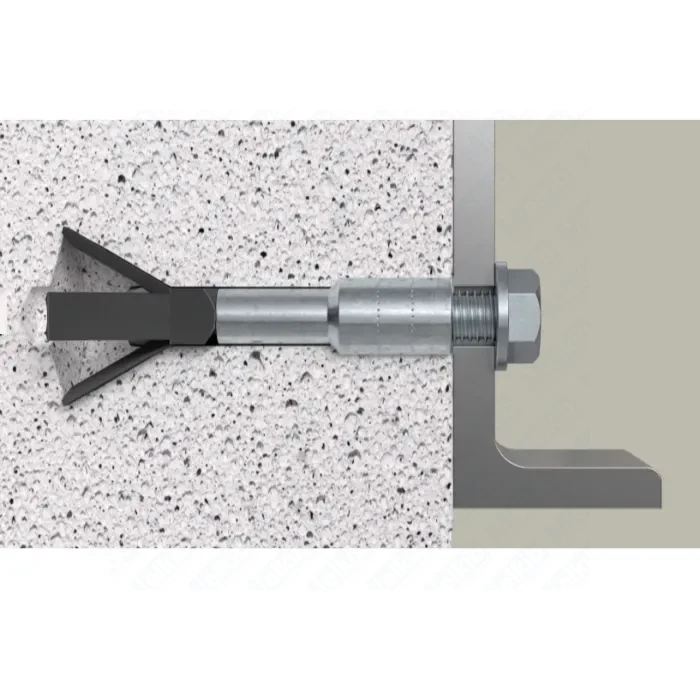

The FPX-I design expands in four directions. During installation, the expansion elements create an undercut in the aerated concrete, while the sleeve geometry helps reduce rotation of the anchor in the drill hole.
When should the M10 version be selected?
The M10 version should be selected when the connection requires a fixing point with an M10 internal thread. The thread size alone does not determine the permissible load. Fixing parameters must be selected according to the aerated concrete properties, substrate geometry and installation conditions.
Installation parameters of FPX M10-I
The anchor is 75 mm long and requires a 10 mm drill hole. The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm. The specified insertion depth of the M10 threaded element is 10–15 mm. The product label specifies an installation torque of 3 Nm.
Detailed spacing, edge distances and permissible loads should be selected in accordance with ETA-12/0456 and the manufacturer's current technical tables.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | FPX M10-I |
| Manufacturer article number of the base product | 519023 |
| Internal thread | M10 |
| Material | steel |
| Coating | electro-galvanized |
| Drill diameter | 10 mm |
| Anchor length | 75 mm |
| Minimum anchorage depth | 70 mm |
| Minimum drill hole depth | 95 mm |
| Minimum insertion depth of M10 threaded element | 10 mm |
| Maximum insertion depth of M10 threaded element | 15 mm |
| Installation torque | 3 Nm |
| Substrate | aerated concrete / autoclaved aerated concrete |
| Melkib sales unit | 1 anchor |
| European Technical Assessment | ETA-12/0456 |
Selection and fastening safety
Load capacity depends on the properties of the aerated concrete, substrate geometry, fixing spacing, edge distances and load direction. For safety-relevant fixings, use the values specified in ETA-12/0456 and the manufacturer's current technical documentation.
FAQ
Does 00519023SZT mean one anchor?
Yes. This product contains 1 Fischer FPX M10-I anchor sold individually.
Where can I buy the full pack of FPX M10-I?
The full pack containing 25 anchors is available under Melkib code 00519023.
What thread does FPX M10-I have?
The anchor has an M10 internal thread.
How far should the M10 threaded element be inserted?
The specified insertion depth is between 10 and 15 mm.
What drill bit is required?
FPX M10-I requires a 10 mm drill hole.
How deep should the drill hole be?
The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm.
