Fischer FPX M12-I aerated concrete anchor with M12 internal thread 1 pc
Product code: 00519024SZT
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

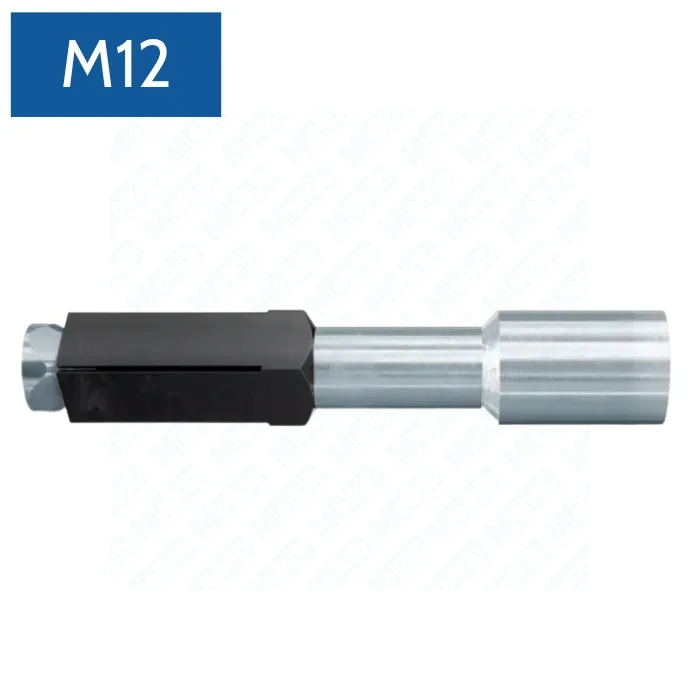

Fischer FPX M12-I – single M12 anchor for aerated concrete
Fischer FPX M12-I is a mechanical steel anchor with an M12 internal thread designed for fastening in autoclaved aerated concrete. This Melkib sales variant contains 1 anchor and is intended for situations where a single fixing is required instead of a full pack.
The full pack containing 25 Fischer FPX M12-I anchors is available from Melkib under code 00519024.
Single fixing point with M12 internal thread
The FPX M12-I version has an M12 internal thread for use with a suitably selected M12 threaded element. The manufacturer specifies an insertion depth of 12 to 15 mm for the mating threaded element.
How does FPX M12-I work in aerated concrete?

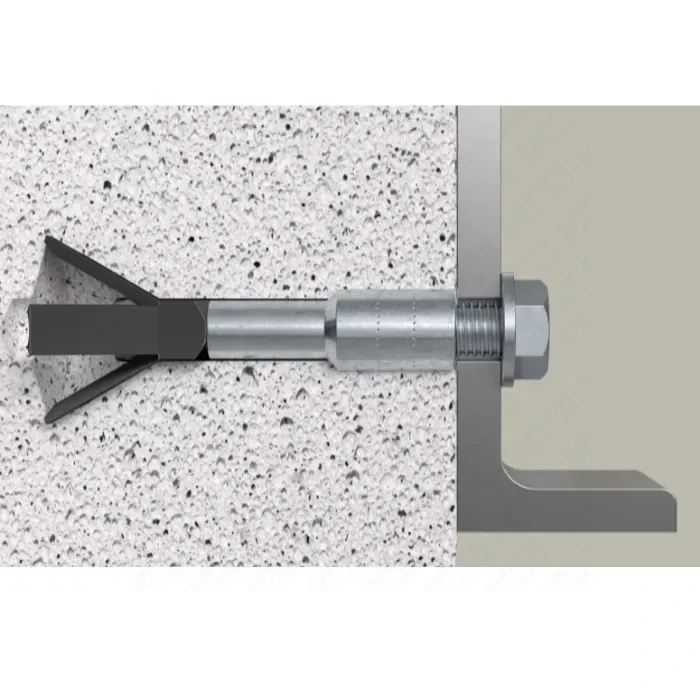

The anchor expands in four directions and creates an undercut in the aerated concrete. The square expansion sleeve helps reduce rotation of the anchor during installation and supports controlled expansion in the substrate.
Where can FPX M12-I be used?

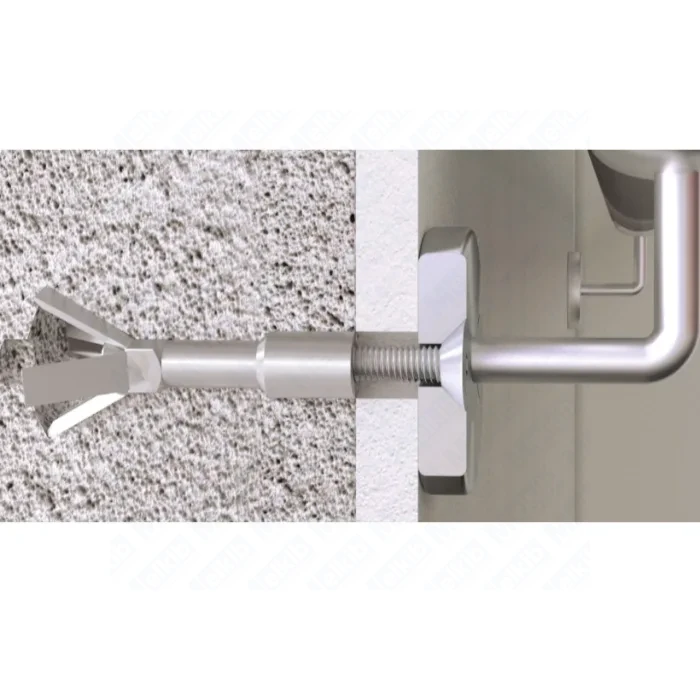

The FPX-I system is designed for fastening in autoclaved aerated concrete. Typical applications include suspended ceilings, cable trays, pipes, ventilation ducts, railings and handrails, brackets, cabinets and stand-off installations.
Installation parameters of the M12 version

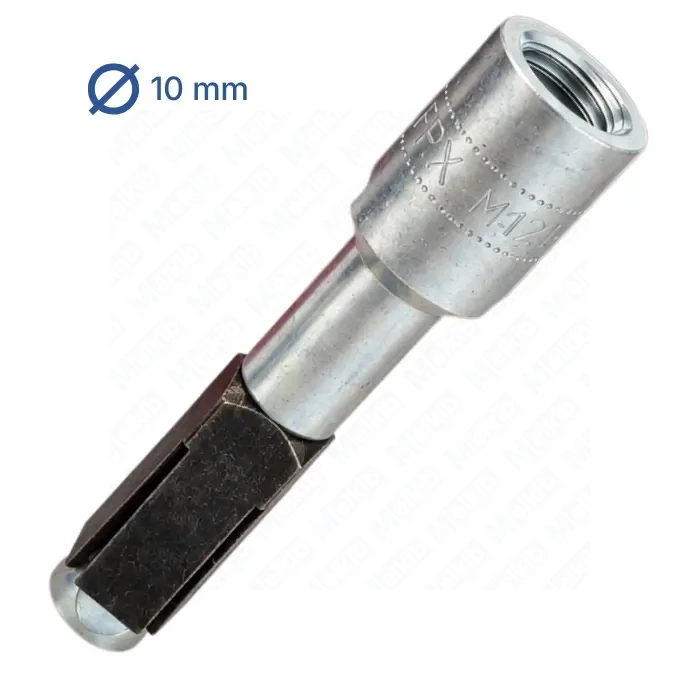

For FPX M12-I, the manufacturer specifies a drill hole diameter of 10 mm. The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm. The M12 threaded element should be inserted to a depth of 12 to 15 mm.
The anchor is designed for pre-positioned installation. Detailed fixing parameters, spacing, edge distances and permissible loads must be selected in accordance with ETA-12/0456 and the manufacturer's current load tables.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | FPX M12-I |
| Manufacturer article number of the base product | 519024 |
| Internal thread | M12 |
| Material | steel |
| Coating | electro-galvanized |
| Drill diameter d0 | 10 mm |
| Anchor length | 75 mm |
| Minimum anchorage depth hef | 70 mm |
| Minimum drill hole depth h1 | 95 mm |
| Minimum insertion depth of M12 threaded element | 12 mm |
| Maximum insertion depth of M12 threaded element | 15 mm |
| Substrate | aerated concrete / autoclaved aerated concrete |
| Melkib sales unit | 1 anchor |
| European Technical Assessment | ETA-12/0456 |
| Declaration of Performance | DoP No. 0270 |
Storage
No specific storage temperature range or separate storage conditions for FPX M12-I are stated in the manufacturer data reviewed for this description.
Selection and fastening safety
The M12 thread size alone does not determine the permissible load. Load capacity depends on the properties of the aerated concrete, substrate geometry, anchor spacing, edge distances and load direction. Use ETA-12/0456 and the manufacturer's current load tables when selecting the fixing.
FAQ
Does 00519024SZT mean one anchor?
Yes. This SKU contains 1 Fischer FPX M12-I anchor sold individually.
Where can I buy the full pack of FPX M12-I?
The full pack containing 25 anchors is available from Melkib under code 00519024.
What thread does FPX M12-I have?
The anchor has an M12 internal thread.
How far should the M12 threaded element be inserted?
The manufacturer specifies an insertion depth of 12 to 15 mm.
What drill bit is required?
FPX M12-I requires a 10 mm drill hole.
How deep should the drill hole be?
The minimum drill hole depth is 95 mm and the minimum anchorage depth is 70 mm.
