FISCHER UltraCut FBS II 10 x 100 US – concrete screw with integrated washer, 3 embedments 45/35/15 mm, fast installation, ETA, pack of 50
Product code: 00536862
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

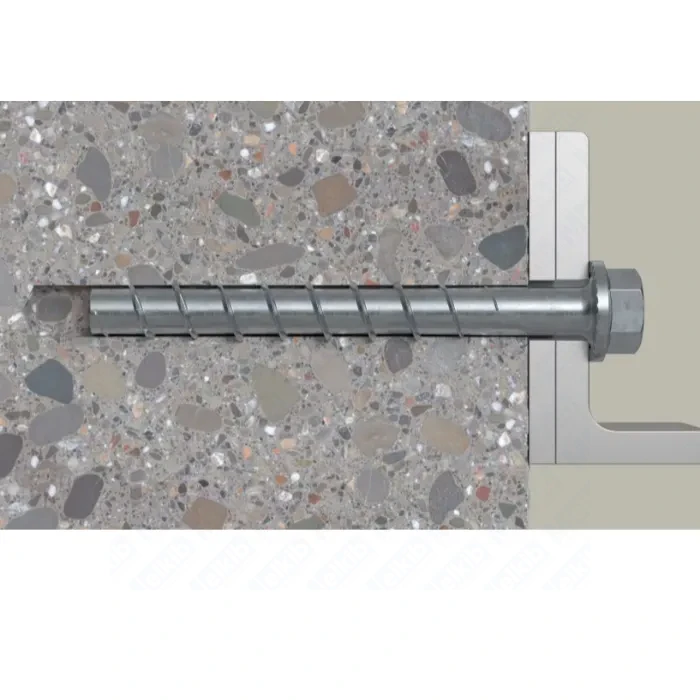

The FISCHER UltraCut FBS II 10 x 100 US is a high-performance concrete screw with a specially hardened red tip and the US version featuring an integrated washer. Three possible embedment depths (45 / 35 / 15 mm) let you use one screw for different fixture thicknesses, while the serrated thread geometry bites quickly into concrete for fast installation. It holds an ETA for cracked and non-cracked concrete and allows two re-tightenings for position correction.
Benefits and unique features
- Three embedment depths (45 / 35 / 15 mm) – one screw for many tasks.
- Serrated thread & hardened tip – fast cutting into concrete, time-saving.
- ETA – use in cracked and non-cracked concrete, including seismic C1/C2.
- Two permitted re-tightenings for adjustment and re-clamping.

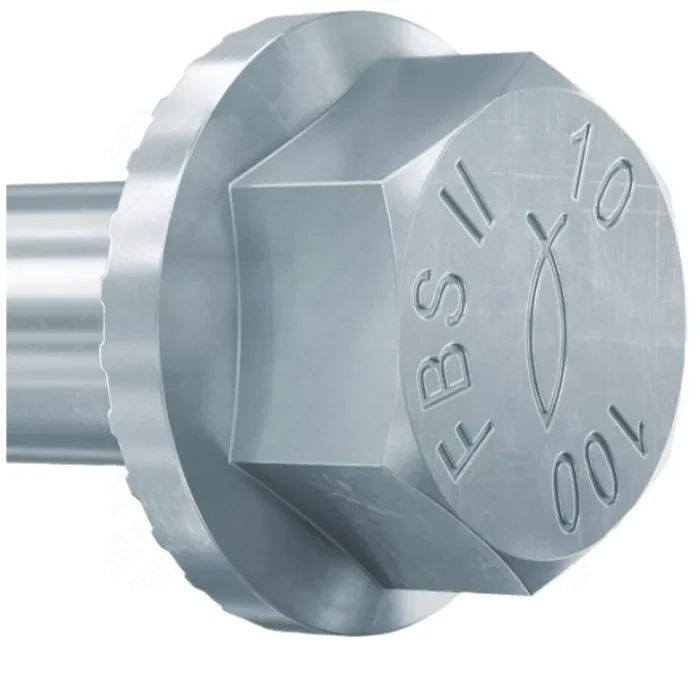

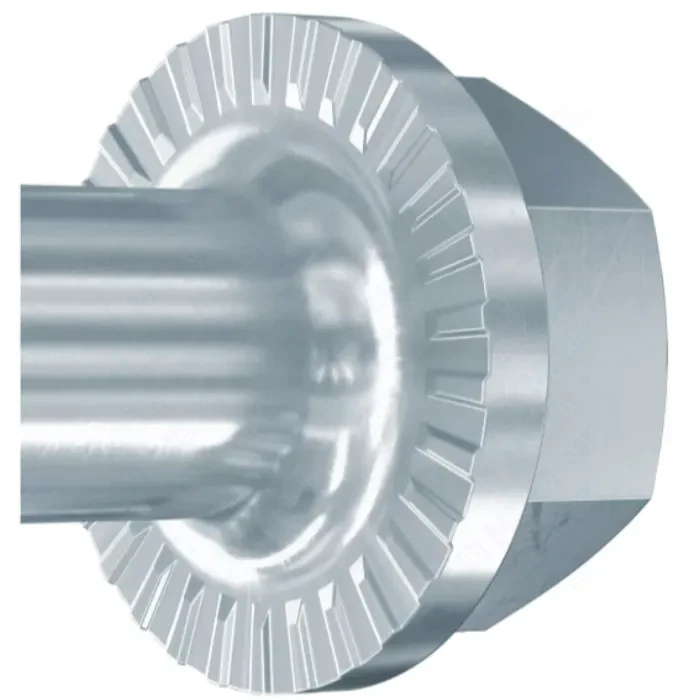

- US version with integrated washer – ideal for slotted holes and timber connections.
- No hole cleaning required for overhead/floor installation; in floors, drill ≥3×Ø deeper.
Properties and applications
- Applications: balustrades, brackets/anchor plates, steel profiles, racking systems, safety barriers, thresholds and beams, temporary site fixings, formwork props.
- Base materials: concrete C20/25–C50/60 (cracked & non-cracked); also suitable for C12/15 and dense solid masonry.
- Installation: through-fixing; use an impact driver with the proper bit.
Technical parameters
| Parameter | Value |
|---|---|
| System | UltraCut FBS II US (with integrated washer) |
| Drill diameter (d0) | 10 mm |
| Screw size (ds × la) | 12.0 × 100 mm |
| Min. hole depth (h2) | 110 mm |
| Embedment / tfix (option 1) | 55 / 45 mm |
| Embedment / tfix (option 2) | 65 / 35 mm |
| Embedment / tfix (option 3) | 85 / 15 mm |
| Drive | 15 |
| Packaging | Folding box |
| Quantity | 50 pcs |
| GTIN (EAN) | 4048962251456 |
| Approvals / docs | ETA-15/0352, ETA-20/0321, ETA-20/0134, DoP 0185 / 0227 / 0225, Z-21.8-2049 |
Storage recommendations
Store in the original closed packaging in a dry place at 5–25 °C. Protect from moisture and weather. Avoid thread contamination.
FAQ
1) What drill size for FBS II 10 x 100?
Use a Ø 10 mm drill.
2) What does “US” mean?
Version with an integrated washer for slotted holes and timber joints.
3) Do I need to clean the holes?
Not for overhead/floor installation; in floors, drill ≥3× the diameter deeper.
4) Can I adjust the position after installation?
Yes – ETA allows two re-tightenings to insert a washer up to 10 mm and re-tighten.
5) Which substrates are suitable?
Concrete C20/25–C50/60 (cracked & non-cracked); also C12/15 and dense solid masonry.
