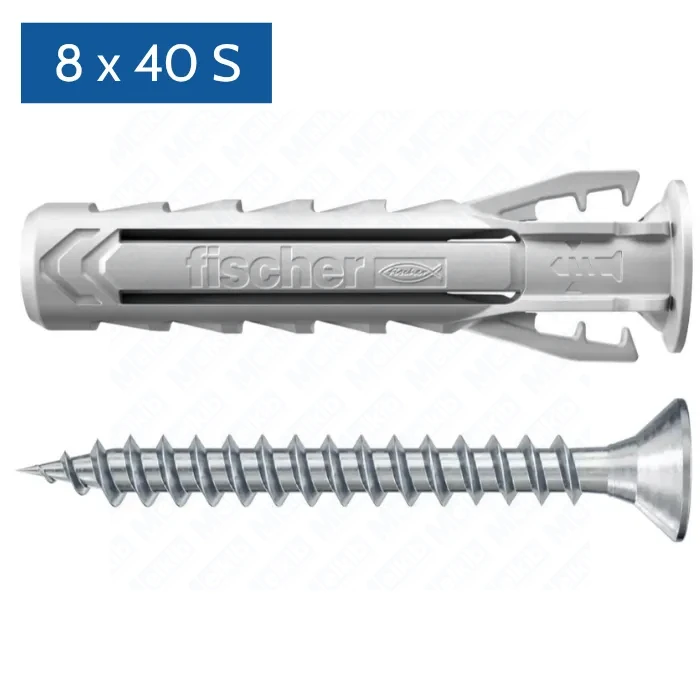

SX Plus 8×40 S expansion plug with 5.0×55 screw, for solid and hollow materials, 50 pcs
Product code: 00568208
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

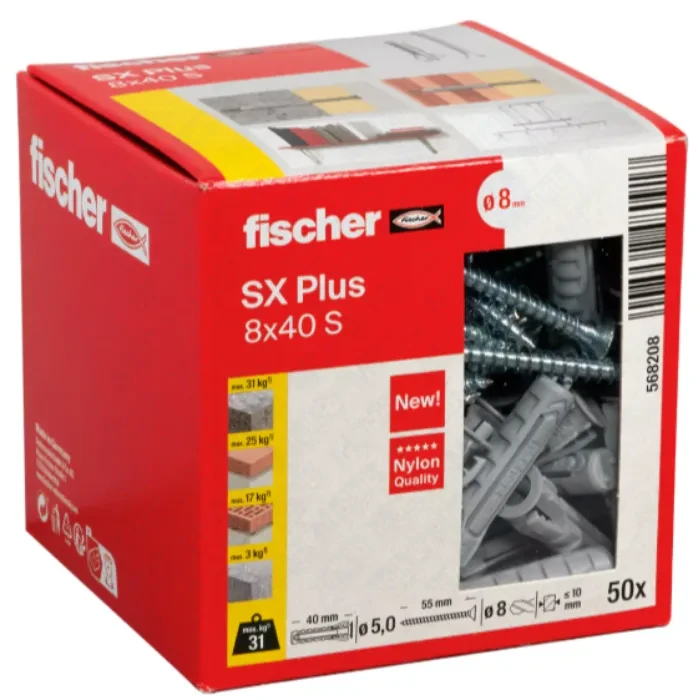

The SX Plus 8 × 40 S expansion plug with screw is a reliable fixing for solid and hollow building materials. Four-way expansion, pre-positioning wings and an anti-push-through rim ensure fast, safe installation. The box contains 50 plug + screw sets.
Benefits and unique features
- 4-way expansion – secure grip and high load capacity in many substrates.
- Holding wings – convenient pre-installation without having to support the plug.
- Special shape – easy insertion with a few hammer taps.
- Rim at the collar – prevents the plug from slipping too deep.
- Tactile tightening point – reduces the risk of overtightening the screw.
Properties and applications
- Applications: luminaires, motion and fire detectors, skirting, light shelves, mailboxes, TV brackets, shutters, mirror cabinets.
- Substrates: concrete, solid brick (incl. sand-lime), aerated concrete, hollow clay units (perforated/vertically perforated), perforated silicate units, lightweight concrete, solid gypsum panels, natural stone, mixed brick-concrete ceilings.

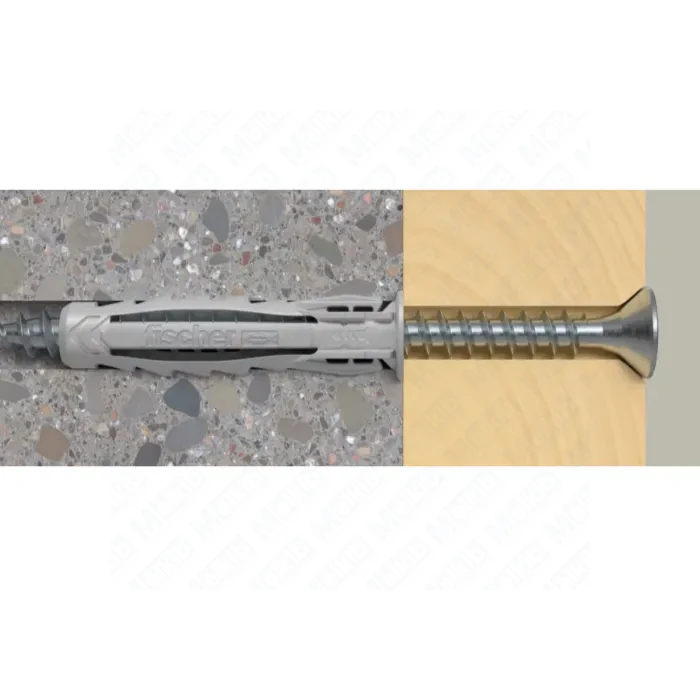

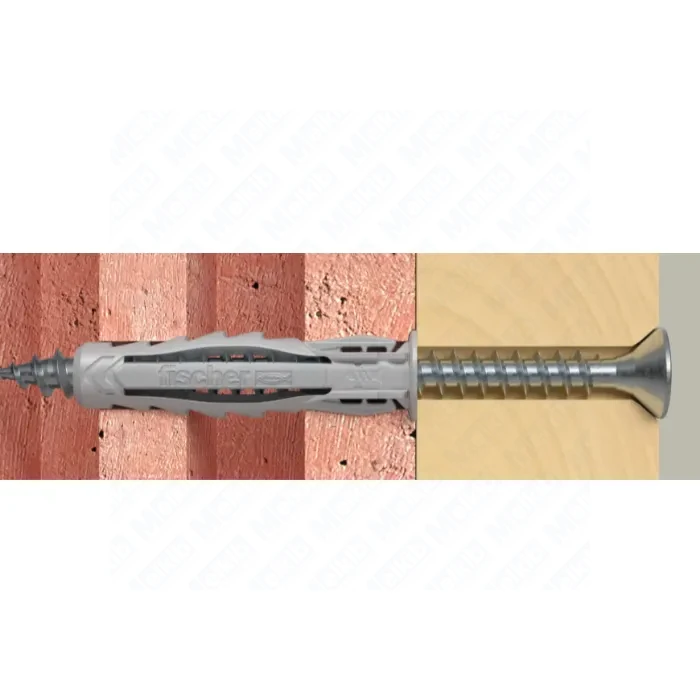

- Installation: pre-installation or through-installation; anti-rotation lock aids tightening.
- Screws: wood screws, chipboard screws or double-threaded screws.
Technical data
| Parameter | Value |
|---|---|
| Drill diameter (d0) | 8 mm |
| Min. hole depth (hl) | 60 mm |
| Plug length (l) | 40 mm |
| Min. screw embedment (le,min) | 45 mm |
| Included screw (ds × ls) | 5.0 × 55 mm |
| Drive | PZ2 |

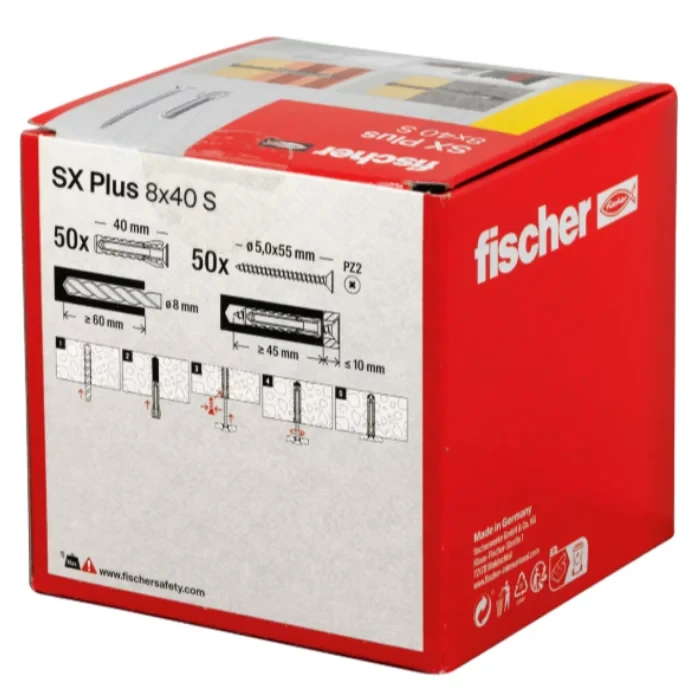

| Box contents | 50 × SX Plus 8×40, 50 × screw 5.0×55 |
| Quantity | 50 pcs |
| Packing | Folding box |
| Approvals | DWU-PLUGS-49-ed3; ITB-KOT-2017/0049 ed. 3 |
| GTIN (EAN) | 4048962480917 |
Storage recommendations
Store in a dry place in the original packaging at 5–25 °C. Protect from moisture, dust and UV. Avoid prolonged contact with chemicals and salt.
FAQ
1) How to choose screw length?
Recommendation: plug length + fixture thickness + 1× screw diameter.
2) What drill bit is needed?
Ø8 mm; minimum hole depth 60 mm.
3) Which substrates are suitable?
Concrete, solid and hollow bricks, silicate units, aerated and lightweight concrete, solid gypsum panels.
4) Is through-installation possible?
Yes, SX Plus allows pre- or through-installation; wings help pre-positioning.
