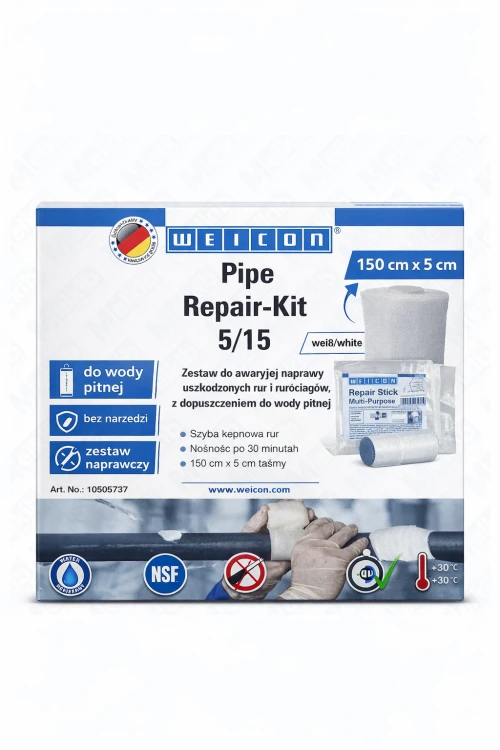

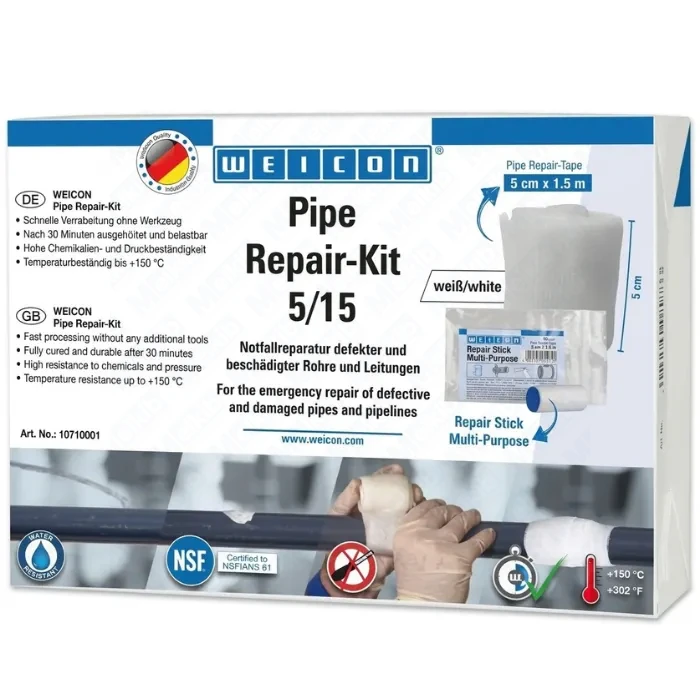

WEICON emergency pipe and pipeline repair kit 1.5 m x 5 cm white, glass-fibre repair tape, approved for drinking water
Description
WEICON Pipe Repair-Kit 5/15 white is an emergency repair kit for damaged pipes and pipelines, designed for fast sealing of cracks and leaks without additional tools. It is a practical solution wherever quick action, easy application and a durable repair result are required. The kit is approved for contact with drinking water, and thanks to the flexible repair tape it is also well suited for bends, T-joints and hard-to-reach areas.
Advantages and unique features
- Approved for contact with drinking water
- Emergency repair without additional tools
- Tape activated on contact with water
- Full load-bearing capacity after 30 minutes
- Tape temperature resistance up to 150 °C
- High resistance to pressure and chemicals
- Suitable for bends, T-joints and hard-to-reach places
- Can be used on many surface types
Properties and applications

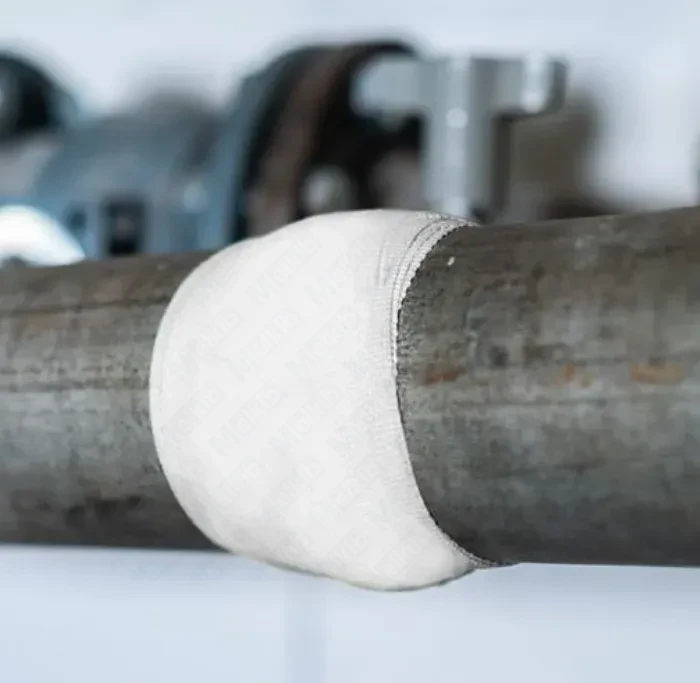

- Emergency pipe repair: the kit is designed for fast sealing of cracks and leaks in pipes and lines.
- Complete solution: includes Repair Stick Multi-Purpose, a special repair tape, installation instructions and a pair of protective gloves.
- Glass-fibre-reinforced tape: provides durable sealing and stabilization of the repaired area.
- Water activation: the resin-impregnated repair tape is activated when it comes into contact with water.
- Hard-to-reach areas: especially suitable for leaks on bends, elbows, T-joints and in confined spaces.
- Wide substrate compatibility: can be used on stainless steel, aluminium, copper, PVC, many plastics, fibreglass, concrete, ceramic and rubber.
Technical parameters
| Parameter | Value |
|---|---|
| Variant name | Pipe Repair Kit 5/15 white |
| Variant dimensions | 1.5 m x 5 cm |
| Colour | White |
| Approval | Contact with drinking water, NSF/ANSI Standard 61 |
| Kit contents | Repair Stick Multi-Purpose, repair tape, installation instructions, protective gloves |
| Tape base | Polyurethane |
| Tape open time at 20 °C | 3–5 min |
| Tape initial strength | 7–10 min |
| Tape final strength | 30 min |
| Tape tensile strength | 35 MPa |
| Tape compressive strength | 30 bar |
| Tape hardness | Shore D 70 |
| Tape temperature resistance | up to +150 °C |
| Stick base | Epoxy resin |
| Stick consistency | Filling compound |
| Filler material | Mineral |
| Application temperature | +15 °C to +40 °C |
| Mix ratio | 1:1 |
| Mix density | 1.9 g/cm³ |
| Maximum gap | 15 mm |
| Stick open time at 20 °C, 10 g portion | approx. 4 min |
| Stick mechanical strength | 60 min |
| Stick final strength | 24 h |
| Shrinkage | <1.0 % |
| Stick compressive strength | 55 MPa |
| Stick hardness | Shore D 80±3 |
| Adhesion strength | 8 MPa |
| Stick temperature resistance | -50 °C to +120 °C |
| Thermal conductivity | 0.4 W/m·K |
| Electrical resistance | approx. 5·10¹¹ Ωm |
| Dielectric strength | 3.0 kV/mm |
| Minimum shelf life | 24 months at room temperature |
Storage recommendations
Store the product in a dry place at room temperature. Unopened containers can be stored between +18 °C and +25 °C. Avoid direct sunlight in order to maintain the full performance properties of the kit.
FAQ
1) What is WEICON Pipe Repair-Kit 5/15 white used for?
It is an emergency repair kit for damaged pipes and lines, designed for quick sealing of cracks and leaks.
2) Is this kit suitable for drinking water systems?
Yes, the product is approved for contact with drinking water and complies with NSF/ANSI Standard 61.
3) Do I need additional tools to use the kit?
No, the kit is designed to be used without additional tools.
4) How long does the tape take to reach full strength?
The tape is fully cured and load-bearing after 30 minutes.
5) On which surfaces can this repair kit be used?
It can be used on stainless steel, aluminium, copper, PVC, plastics, fibreglass, concrete, ceramic and rubber.
