fischer FPX-M10-I aircrete anchor, electro-galvanised, Ø10 mm, hef 70 mm, 25 pcs
Product code: 00519023
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

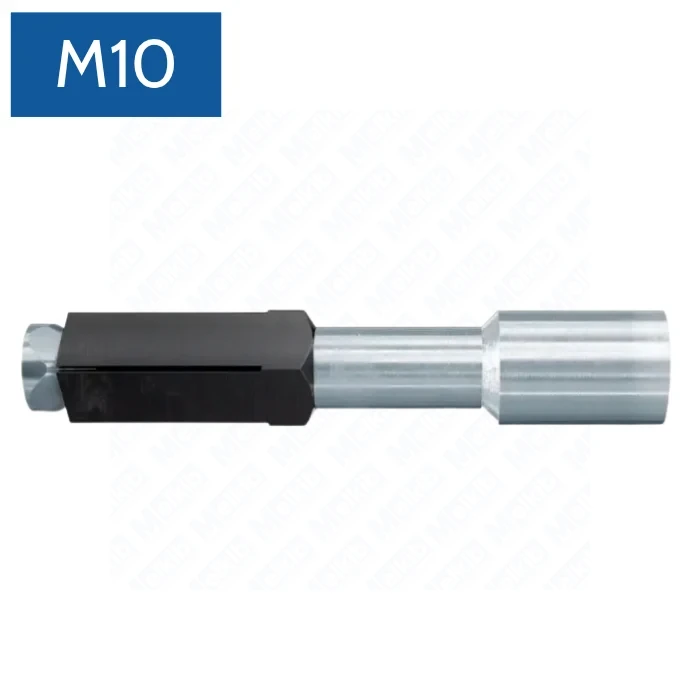

fischer FPX-M10-I is an internal-thread metal anchor for autoclaved aerated concrete (AAC), made of electro-galvanised steel. Cone-controlled expansion enables fast installation, reliable setting and high load capacity in AAC slabs and masonry.
Key benefits
- Four-direction expansion prevents anchor spin in the hole.
- Automatic set check – the hex key releases at optimal expansion.
- Use in cracked and uncracked members; reaction to fire class A1.
- Electro-galvanised finish for dry indoor conditions.
Properties & applications
- Base materials: AAC slabs and masonry.

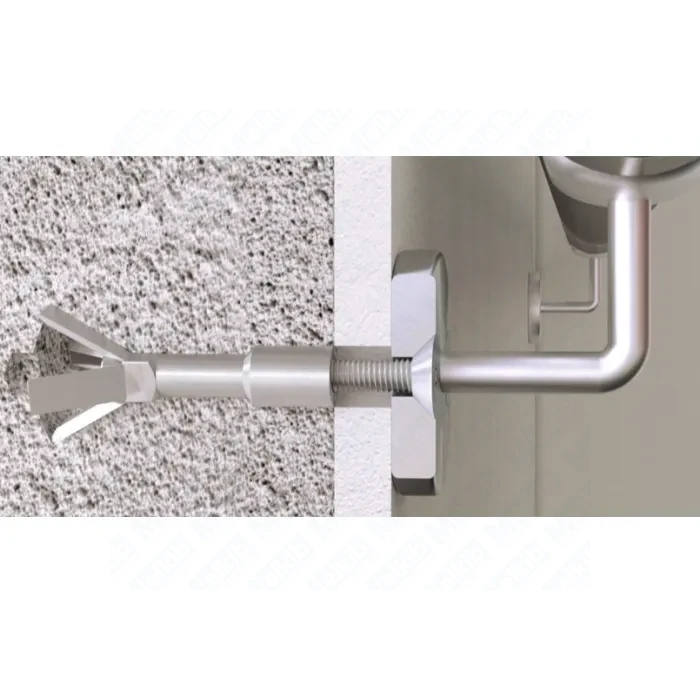

- Typical uses: suspended ceilings, cable trays, HVAC ducts, handrails, TV brackets, kitchen cabinets, stand-off fixings.

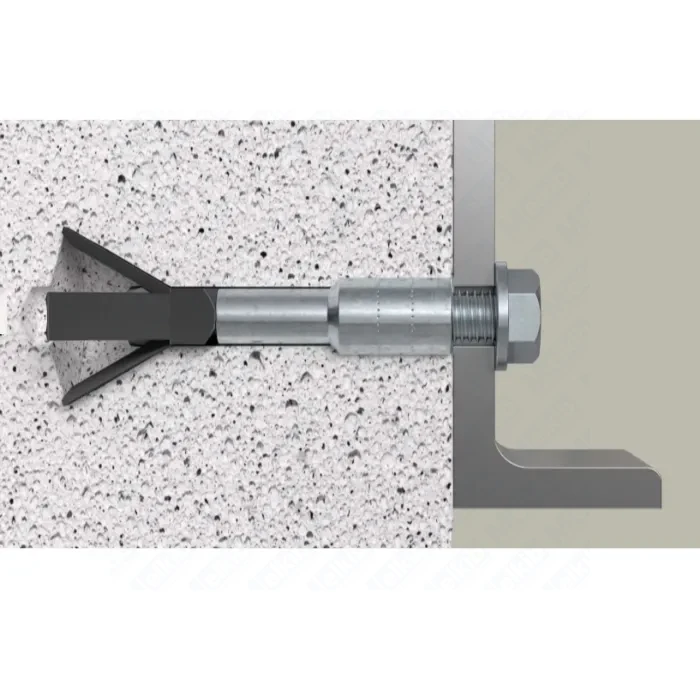

- Installation: drill Ø10 mm; effective embedment 70 mm; setting torque up to 3 Nm; member thickness 100/120 mm. Hole cleaning usually not required.
Technical data
| Parameter | Value |
|---|---|
| Size | M10 |
| Anchor length | 75 mm |
| Drill bit (d0) | 10 mm |
| Effective embedment (hef) | 70 mm |
| Drill hole depth (h1) | 80 mm with cleaning / 95 mm without cleaning |
| Max. setting torque | 3 Nm |
| Min. member thickness | 100 / 120 mm |
| Min. spacing / edge distance (AAC slab) | 100 mm / 125 mm |
| Finish | Electro-galvanised |
| Packing | 25 pcs |
| Reaction to fire | Class A1 |
Storage recommendations
Store in original packaging, dry and clean. Protect from moisture and corrosive atmospheres; keep expansion parts free of debris before installation.
FAQ
1) Is hole cleaning required?
Generally no; for members below 120 mm clean the hole and drill to 80 mm.
2) How do I know it’s properly set?
The hex key releases when the correct expansion is reached.
3) Which base materials?
AAC slabs and masonry.
