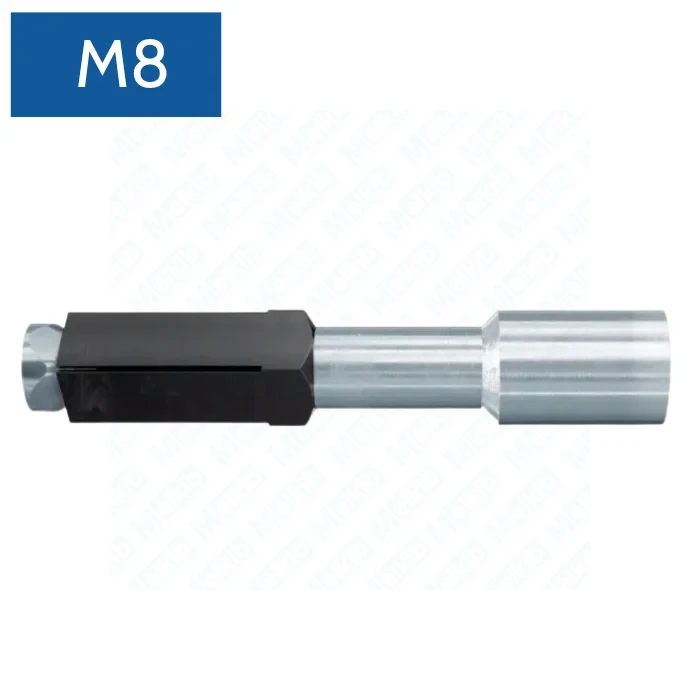

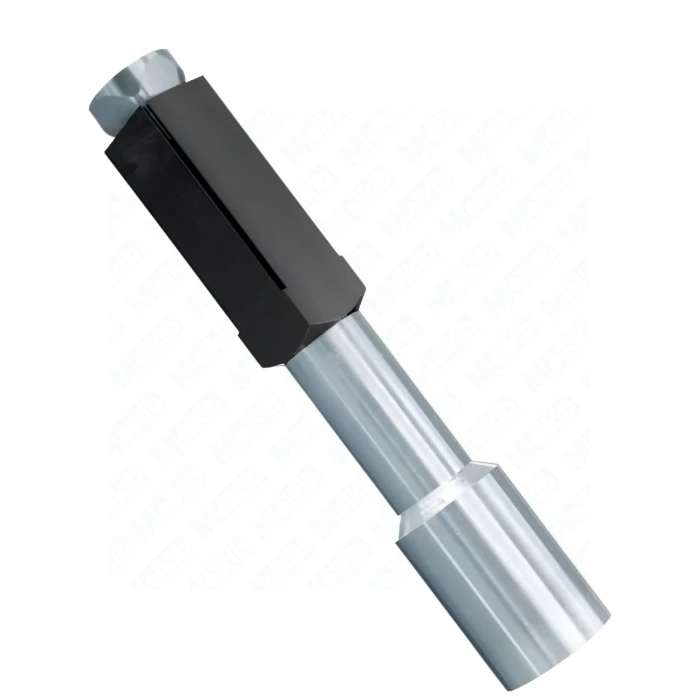

Fischer FPX-M8-I aircrete anchor, electro-galvanised, ETA-12/0456, Ø10 mm, hef 70 mm
Product code: 00519022
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

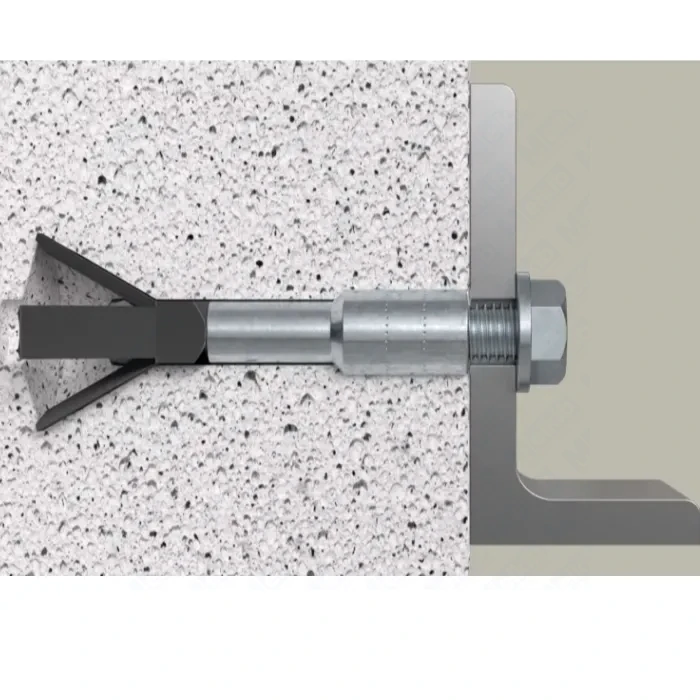

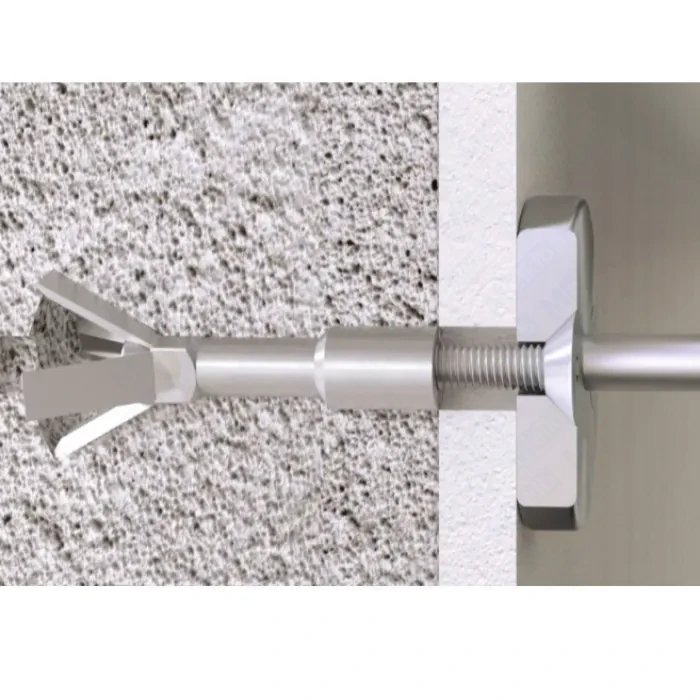

Fischer FPX-M8-I is an internal-thread metal anchor for autoclaved aerated concrete (AAC), made of electro-galvanised steel. Cone-controlled expansion delivers secure anchoring without hole cleaning, fast installation and high load capacity in AAC slabs and masonry.
Key benefits
- Four-direction expansion prevents anchor spin in the hole.
- Automatic set check – the hex key releases when optimal expansion is reached.
- Use in cracked and uncracked AAC; reaction to fire class A1.
- Electro-galvanised finish for dry indoor conditions.
Properties & applications
- Base materials: AAC slabs and masonry.
- Typical uses: suspended ceilings, cable trays, ducts, handrails, TV brackets, kitchen cabinets, stand-off fixings.
- Installation: drill Ø10 mm; effective embedment 70 mm; setting torque up to 3 Nm. Hole cleaning typically not required.
Technical data
| Parameter | Value |
|---|---|
| Internal thread | M8 |
| Anchor length | 75 mm |
| Drill bit (d0) | 10 mm |
| Effective embedment (hef) | 70 mm |
| Max. setting torque | 3 Nm |
| Min. member thickness | 100 mm (with cleaning) / 120 mm (without cleaning) |
| Min. spacing / edge distance | 100 mm / 125 mm |
| Reaction to fire | Class A1 |
| Approvals / DoP | ETA-12/0456; DoP 0270 |
| Finish | Electro-galvanised |
Storage recommendations
Store in original packaging, dry and clean. Protect from moisture and corrosive atmospheres. Keep expansion parts free of debris before installation.
FAQ
1) Is hole cleaning required?
Generally no; for thin members cleaning is recommended.
2) How do I know the anchor is set?
The hex key releases when the correct expansion is reached.
3) Which base materials?
AAC slabs and masonry.
