FISCHER FPX-M6-I aircrete anchor, electro-galvanized, M6, 75 mm length, AAC, pack of 25
Product code: 00519021
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

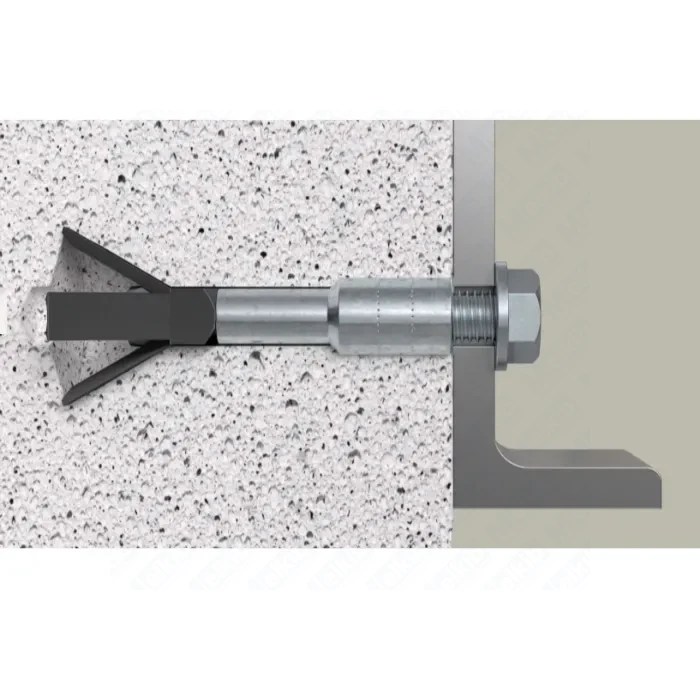

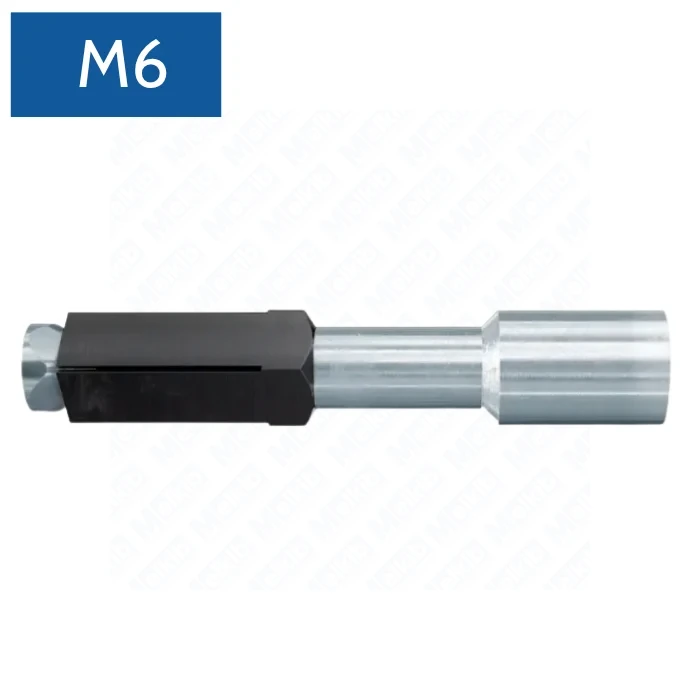

FISCHER FPX-M6-I is a steel aircrete anchor (AAC) with controlled expansion, galvanized finish. It delivers reliable fastening in AAC slabs and masonry, installed with a hex key—no extra setting tools required.
Benefits and key features
- Four-way controlled expansion – secure hold in AAC
- Simple installation in a drilled hole, cleaning not required (per guidelines)
- For reinforced and non-reinforced AAC slabs
- Electro-galvanized steel for dry indoor environments
- Pack of 25 – efficient for site work
Properties and applications
- Installations: cabinets, TV brackets, HVAC, cable trays, pipework

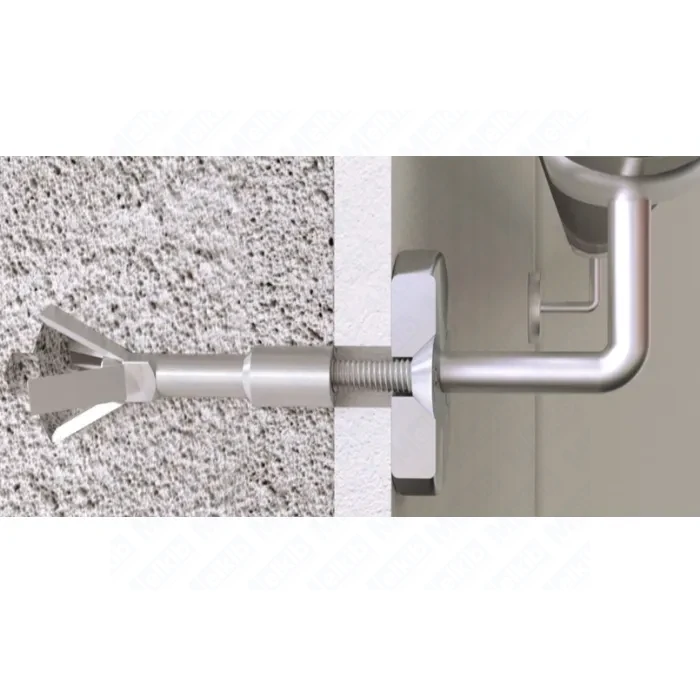

- Building elements: handrails/rails, suspended ceilings, stand-off fixings
- Base materials: autoclaved aerated concrete (AAC) slabs and masonry
- Service conditions: dry indoor areas
Technical parameters
| Parameter | Value |
|---|---|
| Internal thread size | M6 |
| Anchor length | 75 mm |
| Effective embedment (hef) | 70 mm |
| Drill bit diameter (d0) | 10 mm |
| Max. setting torque (Tmax) | 3 Nm |
| Min. member thickness – AAC slabs | 100 mm (with cleaning) / 120 mm (without cleaning) |
| Min. spacing (smin) – AAC slabs | 100 mm |
| Min. edge distance (c1) – AAC slabs, single anchor | 125 mm |
| Material | Electro-galvanized steel |
| Use conditions | Dry interiors |
| Approval / declaration | ETA-12/0456; DoP No. 0270 |

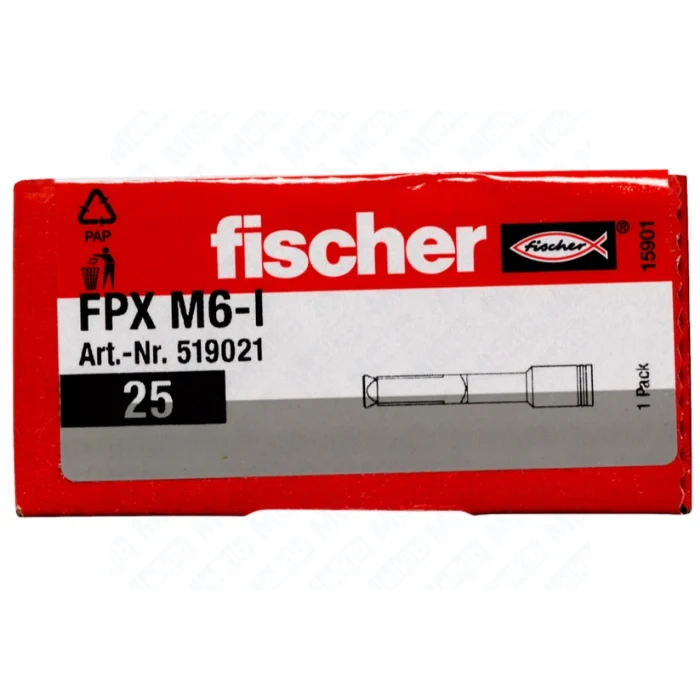

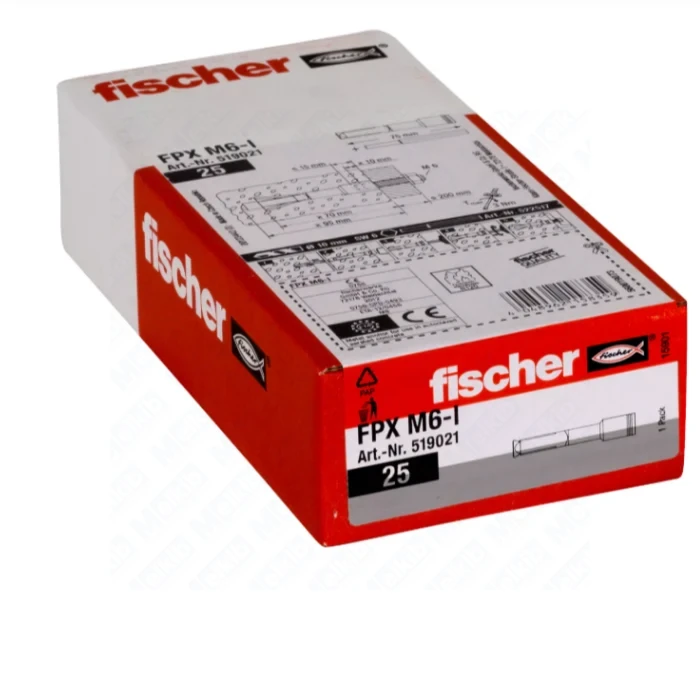

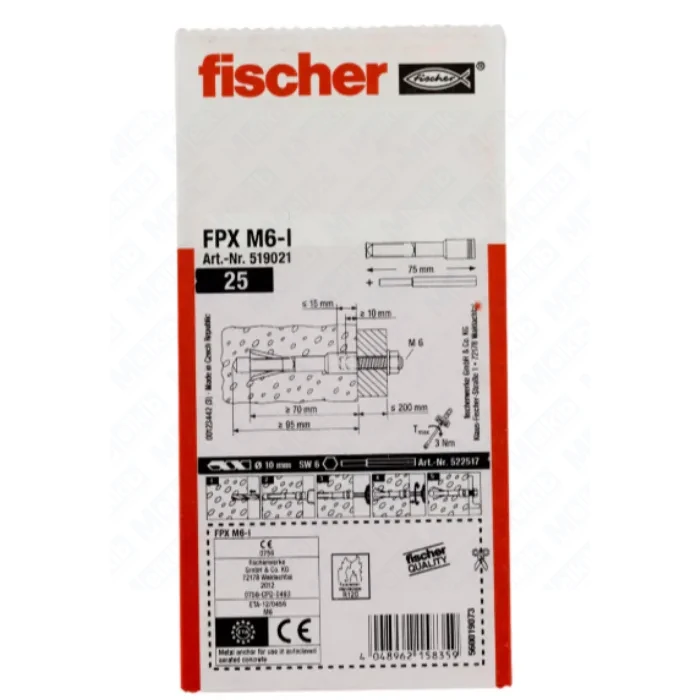

| Packaging | 25 pcs |
| GTIN (EAN) | 4048962158359 |
Storage recommendations
Store in the original closed packaging, in a dry and cool place, away from moisture and aggressive chemicals. Protect the anchor components from contamination.
FAQ
1) What drill bit is required for FPX-M6-I?
Use a Ø 10 mm drill bit.
2) Do I need to clean the hole?
For members <120 mm, clean the hole and limit drilling depth to 80 mm; for thicker members, installation without cleaning is allowed per guidelines.
3) What is the installation torque?
Recommended maximum setting torque is 3 Nm.
4) Typical uses?
AAC slabs and masonry indoors – cabinets, suspended ceilings, cable trays, handrails, etc.
