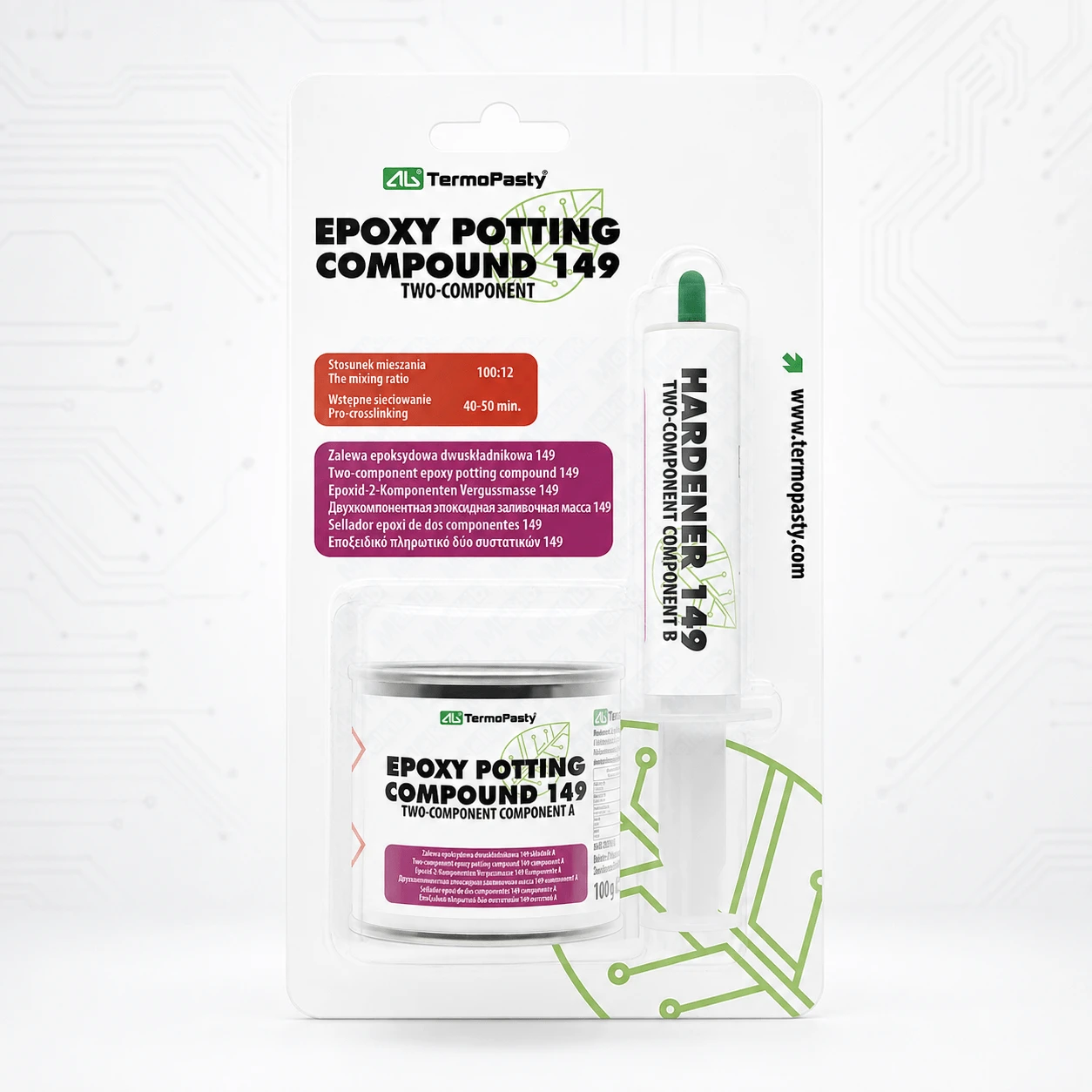

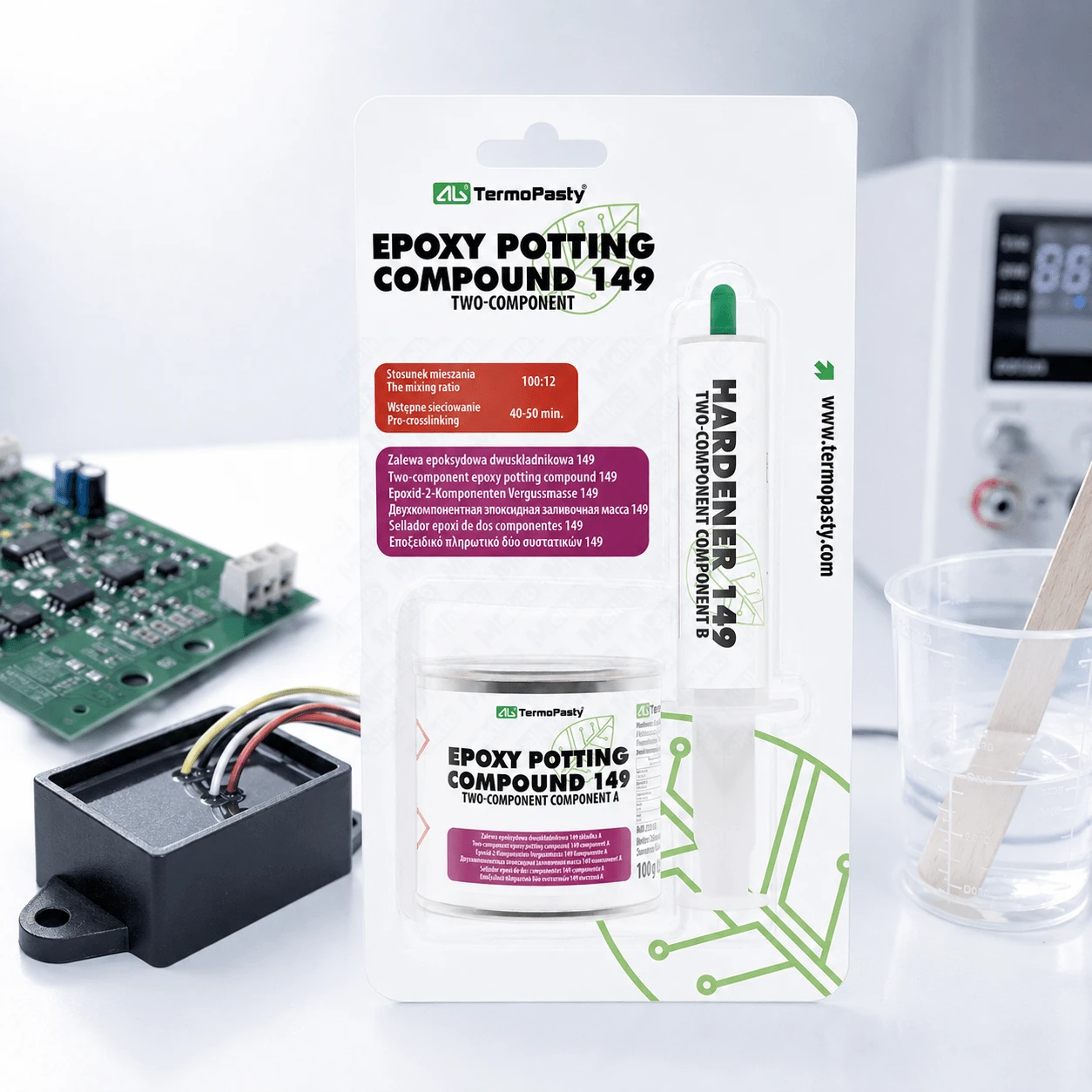

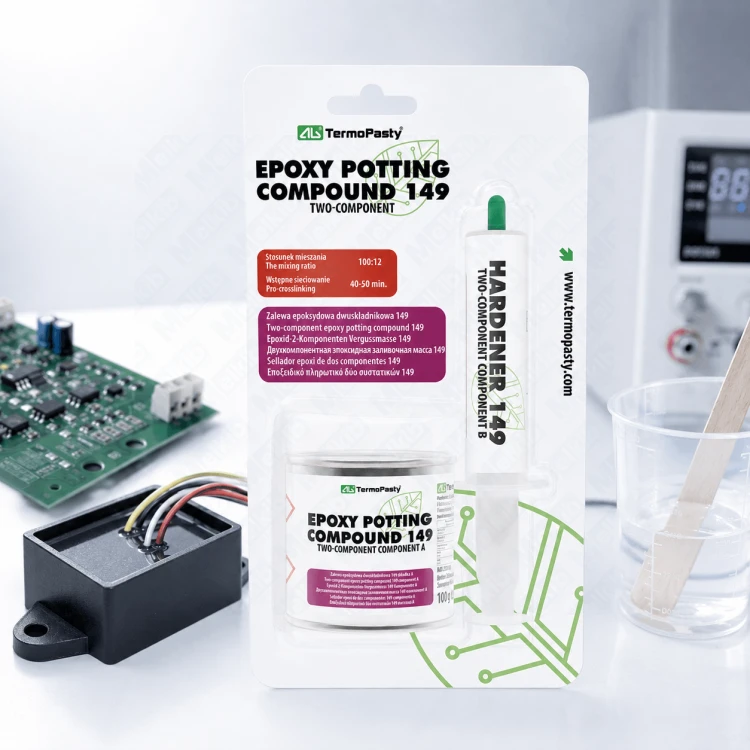

AG TermoPasty Epoxy Potting Compound 149 Two-Component 100 g for Electronics and Encapsulation
Product code: AGT-224
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
AG TermoPasty Epoxy Potting Compound 149 for electronic encapsulation
AG TermoPasty Epoxy Potting Compound 149 is a two-component material designed for encapsulating and insulating electronic, electrical, telecommunication and radio components. After curing, it forms a hard, light-yellow coating with high mechanical strength and very good electrical insulating properties.
IMPORTANT — for professional use only
Epoxy Potting Compound 149 is intended exclusively for professional users. Read the current safety data sheet before use and use appropriate personal protective equipment.
Applications of Epoxy Potting Compound 149
The product can be used for potting and protecting coils, transformers, capacitors, resistors, connectors and cable terminations. It is also suitable as an insulating and structural material in electronic, telecommunication and radio equipment.
The compound helps protect encapsulated components against moisture, dust and other external factors. It provides good adhesion to materials commonly used in electronics, including metals, glass and ceramics.
Properties and benefits
- high mechanical strength after curing,
- very good electrical insulating properties,
- high hardness of the cured material,
- protection against moisture, dust and external factors,
- good adhesion to metals, glass and ceramics,
- curing at room temperature or by an accelerated process.
Preparation and curing
Before application, the surface should be cleaned of dust, grease and other contaminants and then degreased. The components should be mixed thoroughly in a ratio of 100 parts by weight of resin to 12 parts by weight of hardener until a uniform consistency is obtained.
In the set designated as 100 g, the components are factory-proportioned as 100 g of component A and 12 g of component B. Full mechanical strength can be achieved after 7 days of curing at room temperature. The manufacturer also allows a two-stage process: 12 hours at room temperature followed by 6 hours at 80°C.
The product should not be used with polystyrene because contact with the components may damage the material.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | AG TermoPasty |
| Product | Epoxy Potting Compound 149 |
| Manufacturer SKU | ART.AGT-224 |
| EAN | 5901764325185 |
| Variant | 100 g |
| Set contents | 100 g component A + 12 g component B |
| Mixing ratio A:B | 100:12 by weight |
| Density at 25°C | 1.16 g/cm³ after mixing and conditioning |
| Viscosity of component A at 25°C | 20,000–30,000 cP |
| Gel time at 25°C | approx. 33 min |
| Shore A hardness after curing | 97 A |
| Compressive strength | 100–120 MPa |
| Flexural strength | 100–140 MPa |
| Breaking stress | 60–80 MPa |
| Martens heat deflection temperature | 90–110°C |
| Temperature resistance | 100°C |
| Shelf life | 12 months |
Storage
Store in the original, tightly closed packaging in a dry and ventilated storage area at a temperature not exceeding 25°C. Protect from direct sunlight.
Safety
The product is intended exclusively for professional use. Read the current safety data sheet before use. The resin component may cause an allergic skin reaction, causes serious eye irritation and is toxic to aquatic life with long-lasting effects. Appropriate personal protective equipment should be used and release to the environment should be prevented.
FAQ
What is Epoxy Potting Compound 149 used for?
It is used for potting, encapsulating and insulating electronic and electrical components such as coils, transformers, capacitors, resistors, connectors and cable terminations.
What is the mixing ratio?
Component A and the hardener should be mixed at a weight ratio of 100:12. The manufacturer supplies the components in appropriately measured quantities.
How long does the compound take to cure?
Full mechanical strength is reached after approximately 7 days at room temperature. Alternatively, the manufacturer allows 12 hours at room temperature followed by 6 hours at 80°C.
Can it be used with polystyrene?
No. The manufacturer states that contact with polystyrene should be avoided because the material may be damaged.
Is the product intended for consumers?
No. Epoxy Potting Compound 149 is intended exclusively for professional use.
How should Epoxy Potting Compound 149 be stored?
Store it in the original, tightly closed packaging in a dry and ventilated place at a temperature not exceeding 25°C and protect it from direct sunlight.
