Economy spill containment sump for 1 IBC 1000 L 1150x1300x780 mm powder coated

Economy spill containment sump for 1 IBC 1000 L with 1500 kg load capacity

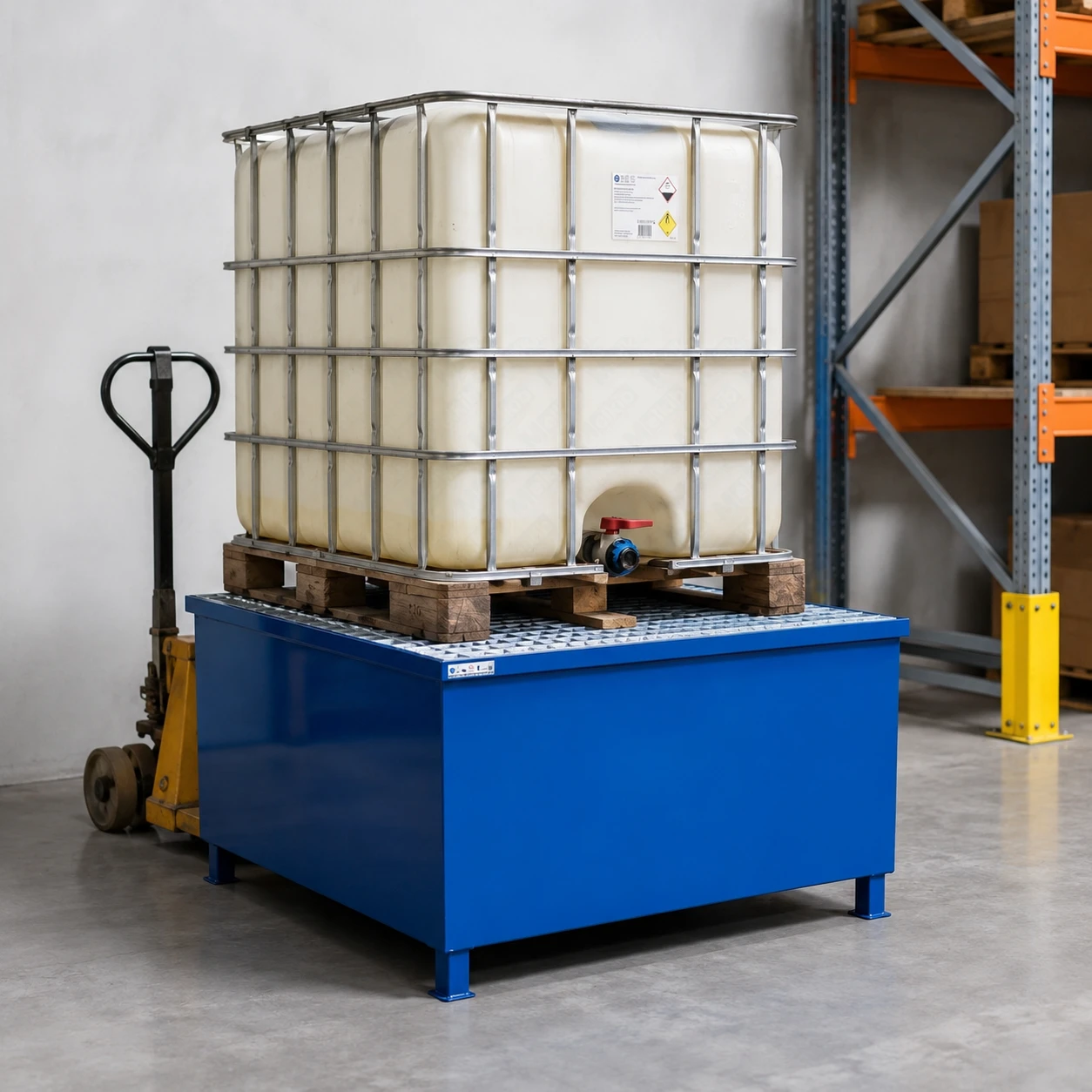

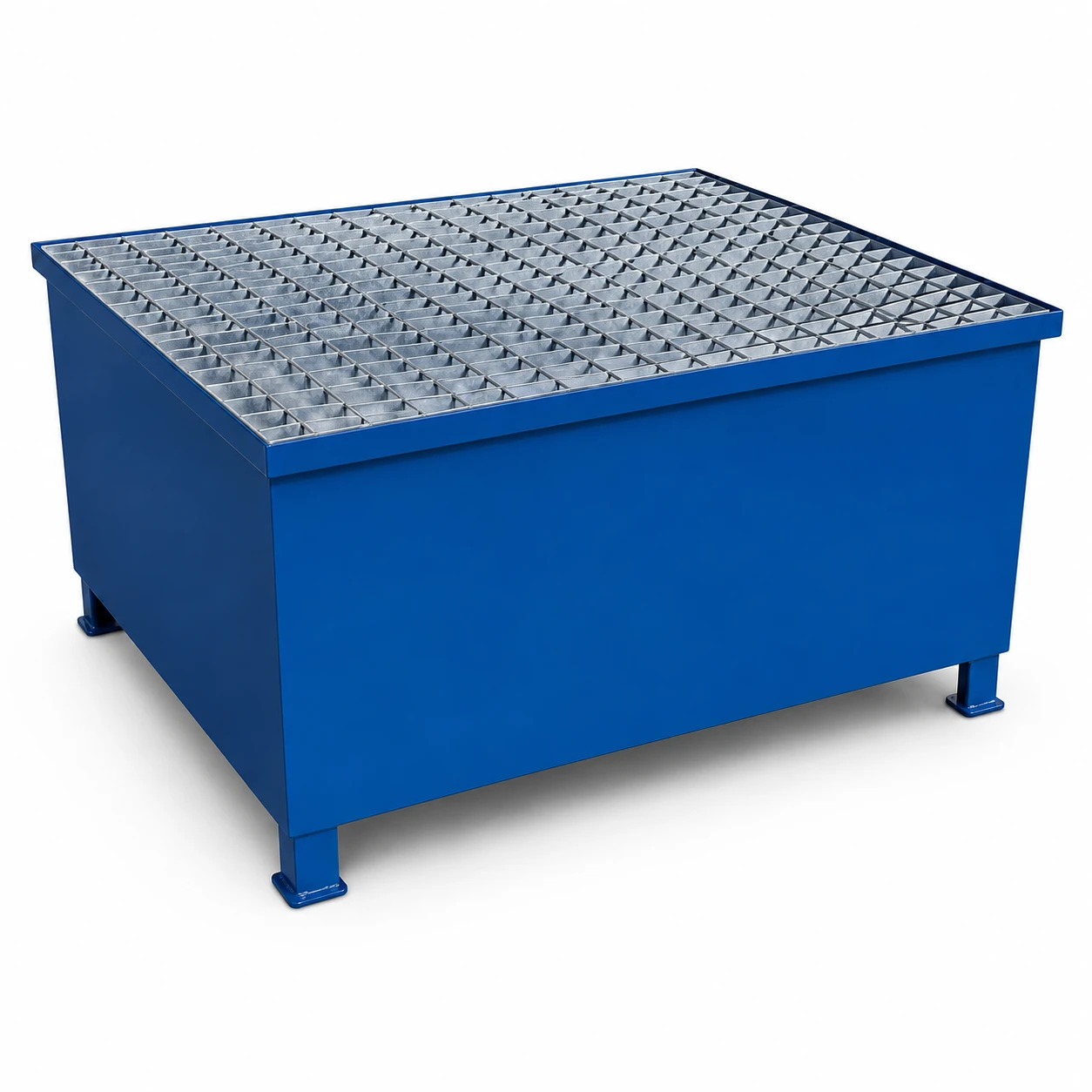

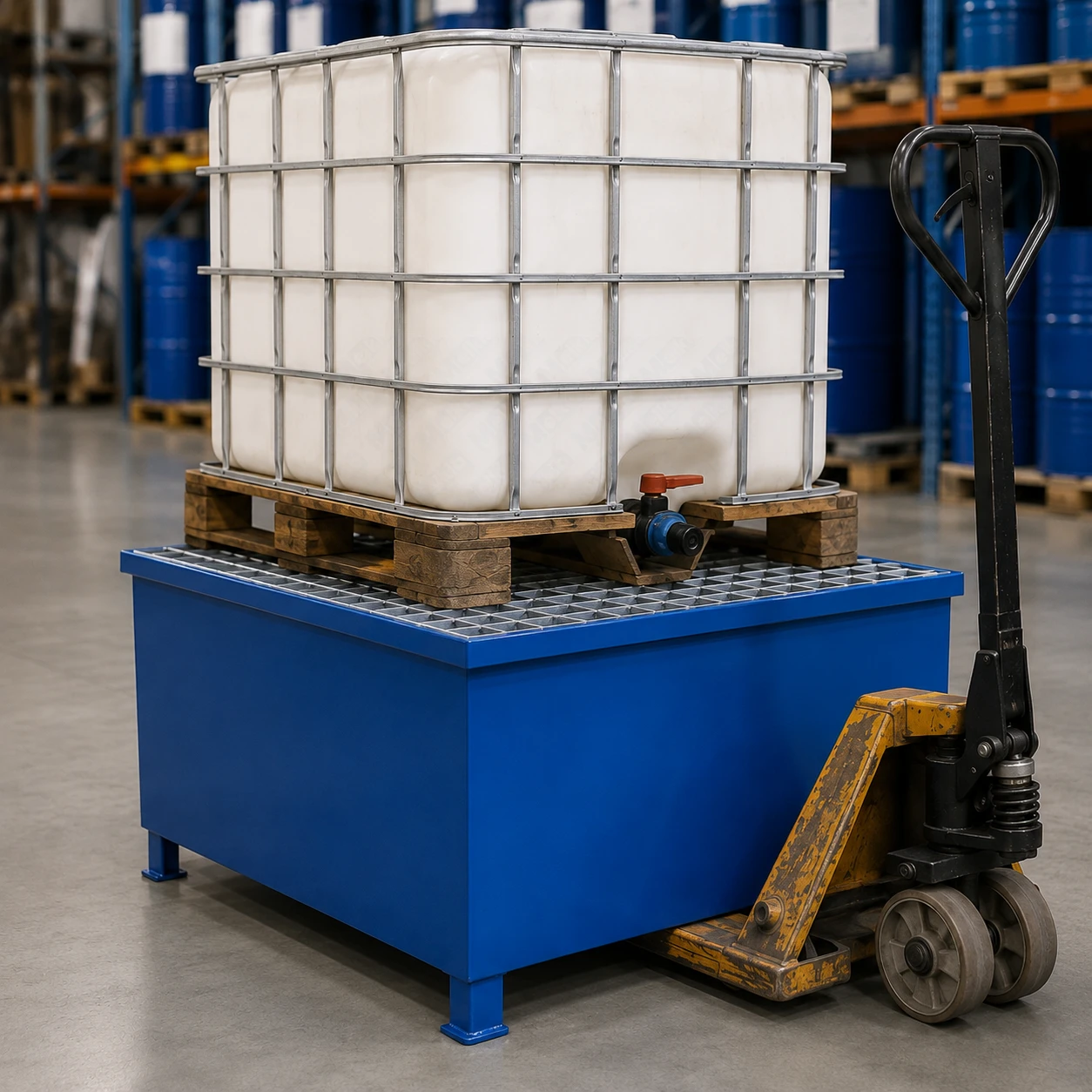

The Economy spill containment sump for 1 IBC is a steel structure designed to accommodate one standard IBC container with a nominal capacity of 1000 L. It helps protect floors and work areas against the spread of liquids in the event of leakage from the container, valve or dispensing system.

The sump capacity is 1000 L, while the permissible static load is 1500 kg. The model has undergone load testing and can be used in warehouses, production halls, workshops and designated industrial liquid storage areas.

Applications of the spill containment sump for IBC containers

• supporting one 1000 L IBC container,
• protecting the floor against the effects of accidental leaks,
• organising industrial liquid storage areas,
• collecting liquid released during dispensing or transfer,
• equipping production halls, warehouses, workshops and technical rooms.

Before using the sump with a specific substance, check its compatibility with steel, the powder-coated surface and the galvanised grating. This is particularly important for strongly corrosive and chemically aggressive substances.

What distinguishes the Economy spill containment sump

• 1000 L sump capacity – corresponds to the nominal capacity of a standard IBC container.
• 1500 kg static load capacity – the structure has undergone load testing.
• 2.0 mm steel sheet – provides rigidity and stability.
• Galvanised steel grating – the grating mesh measures 66 × 66 mm.
• Powder-coated finish – corrosion protection in RAL 5010.
• Made in Poland – the product is manufactured in Poland.

When to choose a sump for one IBC container

The 1150 × 1300 × 780 mm model is intended for workstations where one IBC container is stored or used. It is suitable when a 1000 L containment capacity is required and the total weight of the system does not exceed the permissible static load of 1500 kg.

Before placing the container on the sump, check its actual dimensions, empty weight and the weight of its contents. The total load must not exceed the value specified for the sump.

Important information before use

• place the sump on an even, stable surface with sufficient load-bearing capacity,
• do not exceed the static load capacity of 1500 kg,
• confirm material compatibility with the stored liquid before use,
• regularly inspect the body, welds, grating and powder-coated surface,
• remove collected liquid in accordance with its properties and applicable handling procedures.

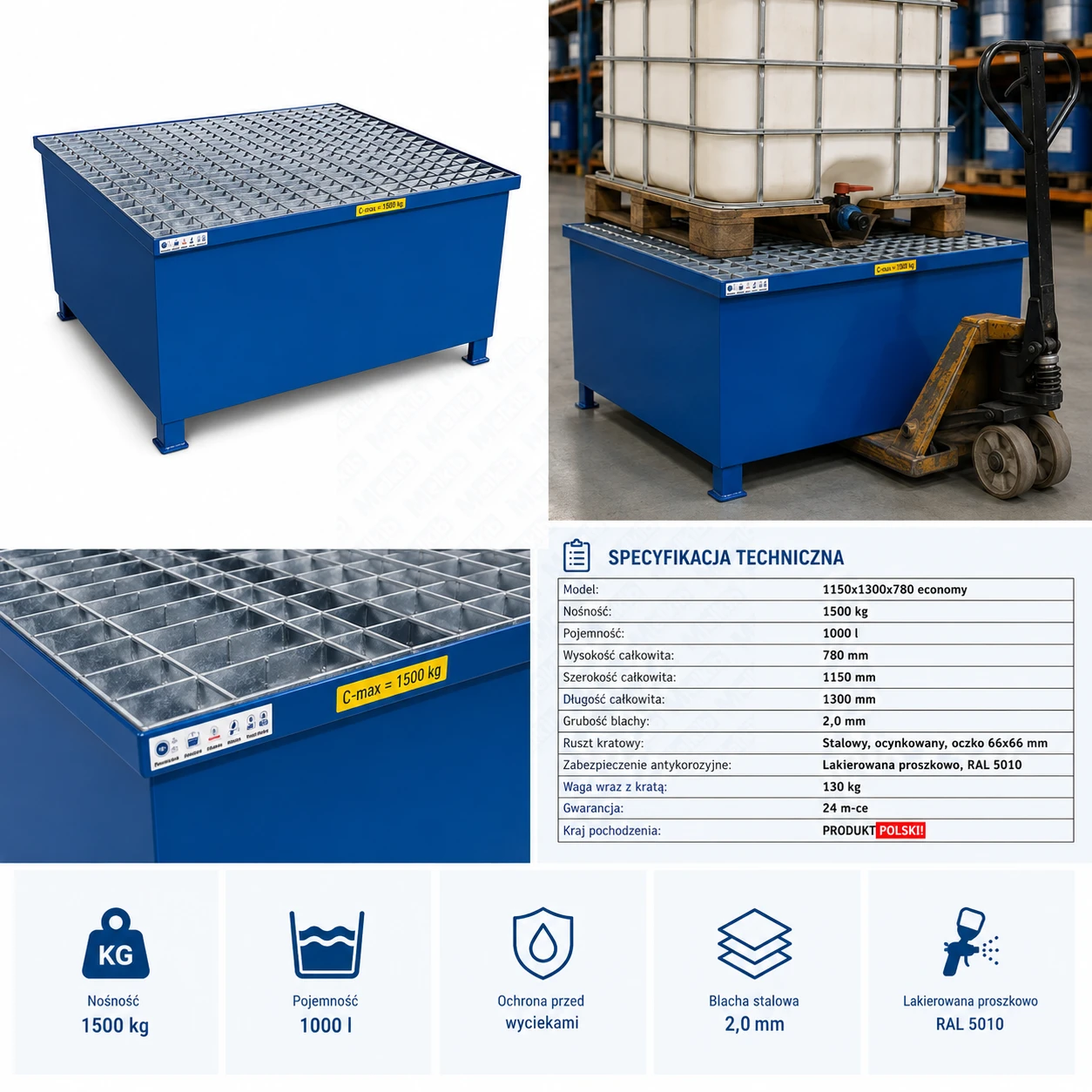

Technical data of the Economy spill containment sump

Storage and maintenance

Store and use the sump on an even, stable surface. Regularly inspect the structure, grating and powder-coated finish for mechanical damage, corrosion and leakage. After collecting liquid, empty the sump and clean it using a method appropriate for the substance concerned.

FAQ

Is the sump suitable for a standard 1000 L IBC container?

Yes. The model is designed for one IBC container with a nominal capacity of 1000 L.

What is the maximum load capacity of the sump?

The permissible static load is 1500 kg. This value includes the container, its base and the stored liquid.

Is the sump equipped with a steel grating?

Yes. The sump is equipped with a galvanised steel grating with 66 × 66 mm mesh.

How much does the sump weigh including the grating?

The complete sump including the grating weighs 130 kg.

Is the sump suitable for every chemical substance?

Universal chemical resistance should not be assumed. Before use, confirm the compatibility of the specific substance with steel, the powder-coated surface and the galvanised grating.

Does the sump capacity correspond to the capacity of an IBC container?

Yes. The sump capacity is 1000 L, corresponding to the nominal capacity of a standard 1000 L IBC container.
