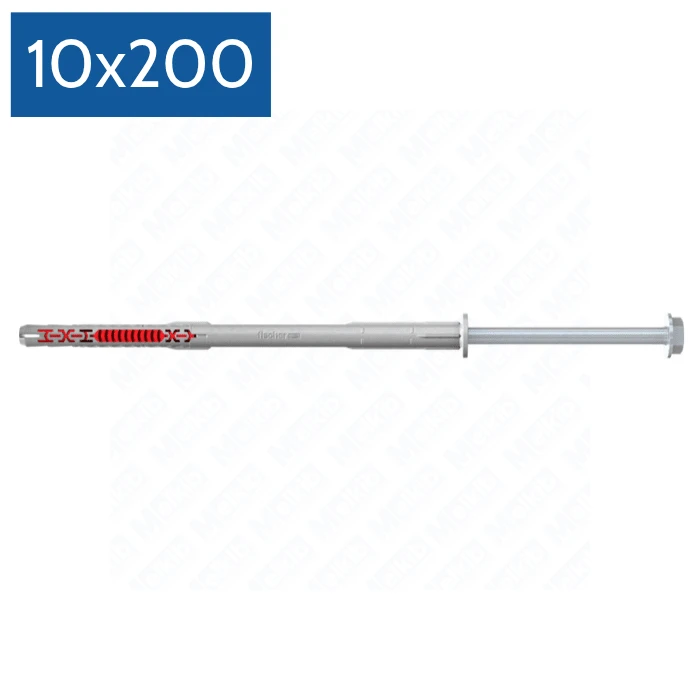

Fischer DuoXpand 10 × 200 FUS frame anchor with hex-head screw and washer, 10 mm drill, pack of 50
Availability:
Available 1-3 pcs
Rating:
0
0
Vendor:
Product code:
00562173
Description
Fischer DuoXpand 10 × 200 FUS is a frame anchor with an innovative expansion zone and a hex-head screw with integrated washer. The special rib geometry and material mix deliver secure, controlled fixings in concrete and masonry with a 10 mm drill.
Benefits and unique features
- Directional expansion reduces cracking risk and allows closer edge distances.
- Two embedment options (hef 50/70 mm) give flexible usable length (tfix).
- Lateral serrations prevent plug spinning during tightening.
- FUS hex-head screw with washer ensures firm clamping of the fixture.
- ETA for multiple non-structural fixings in concrete and masonry.
Properties and applications
- Applications: façade/roof substructures, windows, gates/doors, cupboards and hanging kitchen units, beams, TV brackets, wall claddings, metal brackets, cable trays and ducts.
- Base materials (per ETA): concrete ≥ C12/15, solid brick, solid and hollow sand-lime blocks, vertically perforated clay bricks, lightweight concrete blocks, aerated concrete; also dense natural stone and solid gypsum panels.

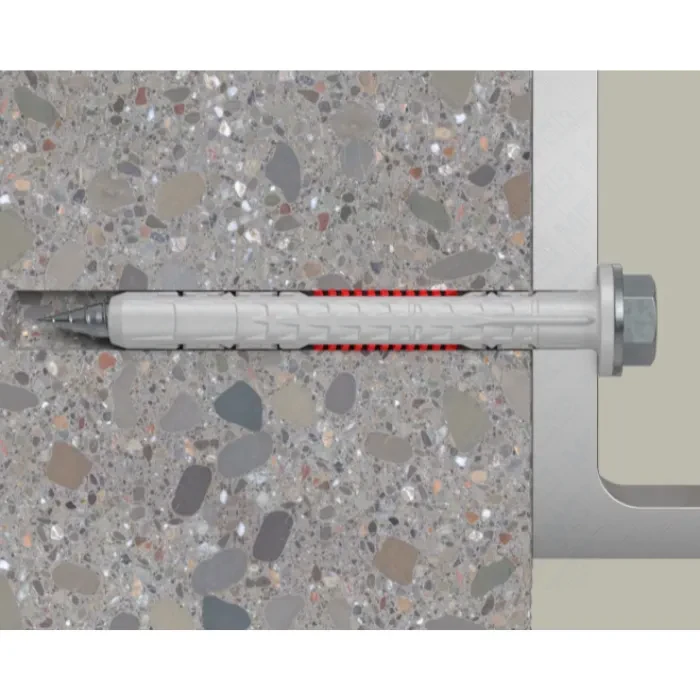

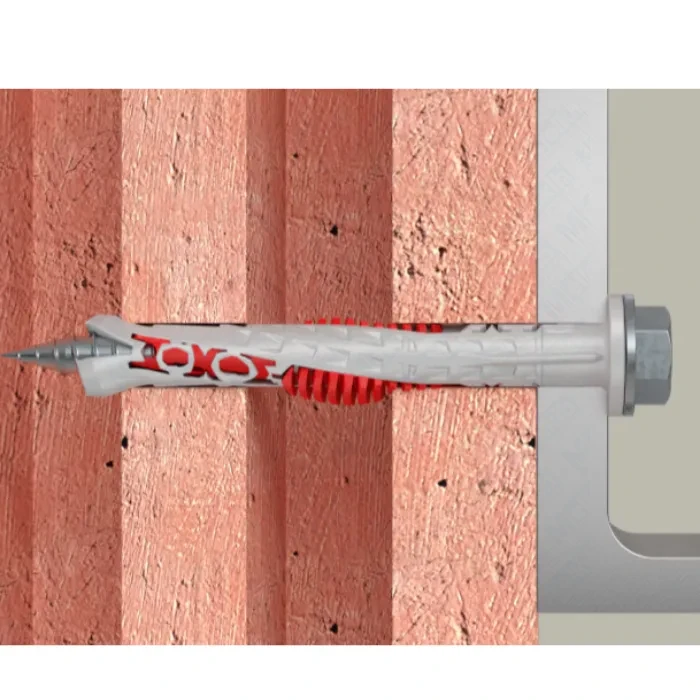

- How it works: uniform load distribution in solid bases; form-fit anchorage in hollow units while inner webs remain intact.
Technical parameters
| Parameter | Value |
|---|---|
| Drill diameter (d0) | 10 mm |
| Min. hole depth for through-setting (h2) | 210 mm |
| Usable length at hef=50 mm (tfix) | 150 mm |
| Usable length at hef=70 mm (tfix) | 130 mm |
| Usable length at hef=140 mm (tfix) | 60 mm |
| Usable length at hef=160 mm (tfix) | 40 mm |
| Anchor length | 200 mm |
| Drive / wrench size | TX40 / SW 13 |
| Screw material | Electro-galvanized steel |
| Packaging / quantity | Folding box / 50 pcs |
| GTIN (EAN) | 4048962440348 |
Storage recommendations
Store dry and cool in the original packaging, away from UV and corrosive atmospheres. Avoid prolonged mechanical loads that could deform the sleeve or screw thread.
FAQ
1) Which drill bit?
Ø 10 mm.
2) Minimum drilling depth for through-setting?
210 mm.
3) Usable lengths (tfix)?
150 / 130 / 60 / 40 mm depending on hef.
4) Suitable base materials?
Concrete and various masonry per ETA.
5) Screw drive?
TX40 / SW 13; electro-galvanized hex-head screw with washer.
