Fischer SXRL 10 × 200 FUS frame fixing with hex-head screw, box of 50

Fischer SXRL 10 × 200 FUS frame fixing with hex-head screw and integrated washer is a versatile solution for multiple fixings of non-structural elements in concrete and masonry. Its long expansion section and special geometry provide even load distribution and secure installation, also in thin-walled substrates.

Benefits and unique features

• ETA approval for safe multiple fixings in concrete and masonry.
• Long expansion zone – universal use in solid and hollow materials.
• Even load spread – reduced risk of damaging thin walls.
• Longitudinal ribs prevent plug rotation during installation.

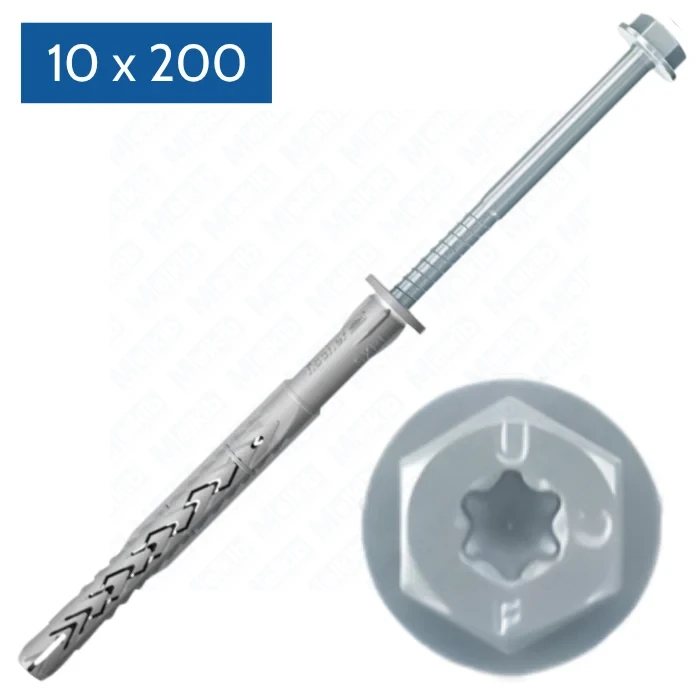

• FUS version: hex-head screw, TX40 / SW 13, fast and convenient installation.

Properties and applications

• Typical applications: façade, ceiling and roof substructures, auxiliary façade frames (incl. stand-off fixing), windows, gates and doors, built-in cabinets, hanging kitchen units, beams, TV and metal brackets, wall claddings, holders, cable ducts and trays.
• Base materials (per ETA): hollow clay blocks, aerated concrete, lightweight and normal concrete (≥ C12/15), solid bricks, solid/perforated silicate blocks, insulating blocks, dense natural stone, solid gypsum boards.

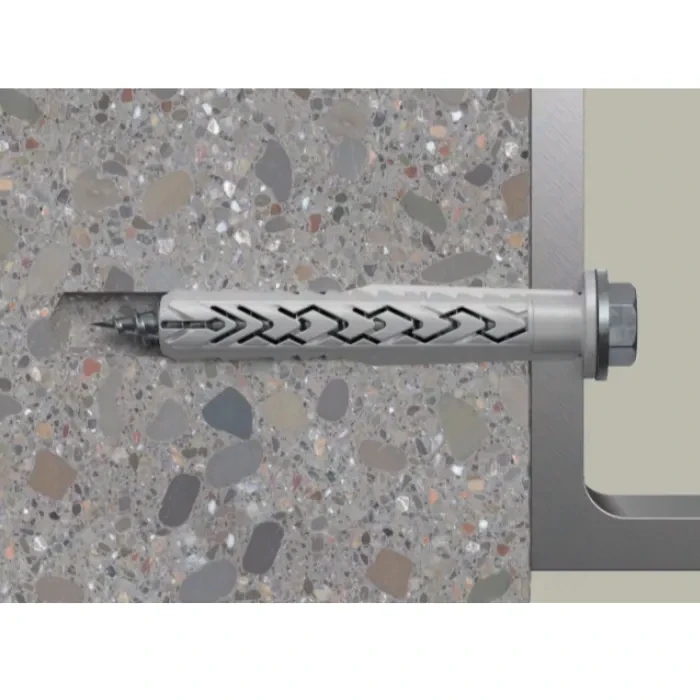

• Installation: through-installation; the two expansion zones join in solid materials and AAC to form one long expansion element, ensuring uniform load transfer.

Technical parameters

Storage recommendations

Store in the original closed packaging, in a dry and clean place away from sunlight and heat sources. Protect from moisture and contaminants that could impair fixing performance.

FAQ

1) Which drill bit for SXRL 10 × 200 FUS?
Use a 10 mm bit; for through-installation the minimum hole depth is 210 mm.

2) Which base materials is SXRL suitable for?
Concrete, brick, silicate blocks, aerated concrete and many other masonry materials as per ETA.

3) Why are there three embedment depths?
To adapt the usable length (150/130/110 mm) to the fixture thickness and base material.

4) How is rotation prevented?
Longitudinal ribs on the sleeve stop the plug from spinning while the screw is driven.

5) Is the screw included?
Yes, the FUS version includes a matching hex-head screw (TX40 / SW 13).
