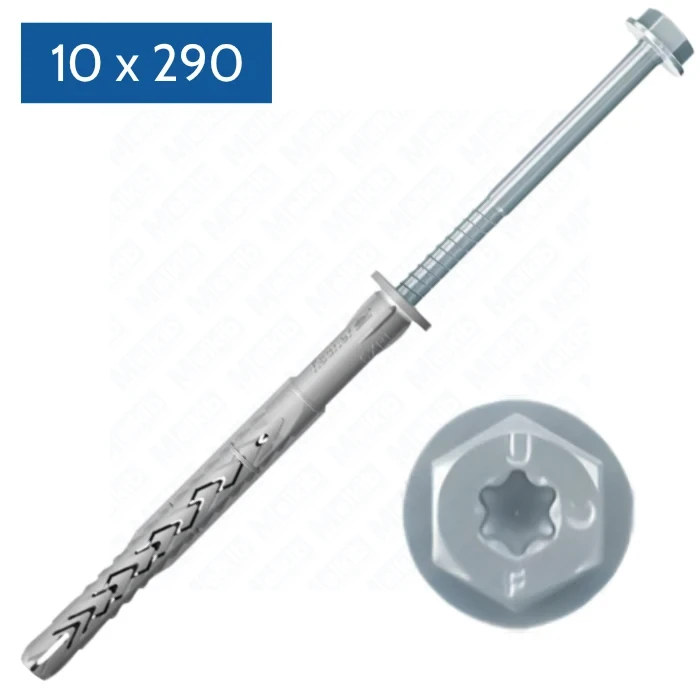

fischer SXRL 10 x 290 FUS, frame anchor with TX40/SW13 screw, electro-galvanized steel, for concrete and hollow substrates, pack of 50

The fischer SXRL 10 x 290 FUS frame anchor is a versatile fixing system for non-structural attachments in concrete and masonry, also effective in hollow materials and aerated concrete. Its long expansion section, anti-rotation ribs and a screw with TX40 / SW13 drive ensure secure installation and even load distribution. The product holds a European Technical Assessment and supports multiple embedment depths.

Benefits and unique features

• European Technical Assessment (ETA) – safe multi-point anchoring.
• Long expansion element – works in solid and hollow substrates.
• Even stress distribution in the base material – lower risk of damaging thin walls.
• Longitudinal ribs prevent anchor rotation during installation.
• Flexible embedment depths: 50 / 70 / 90 mm – adapt to the job.
• Screw with TX40 drive and SW13 hex head with integrated washer – fast fixing of metal components.

Properties and applications

• Façade and cladding works: subframes, brackets, wall claddings.
• Interior fit-out: built-in wardrobes, hanging kitchen cabinets, cable ducts and trays.
• Joinery: windows, gates and doors, battens, studs, beams.
• Base materials: concrete ≥ C12/15, solid bricks, solid and perforated silicate blocks, lightweight concrete, insulation blocks, ceramic blocks, aerated concrete.

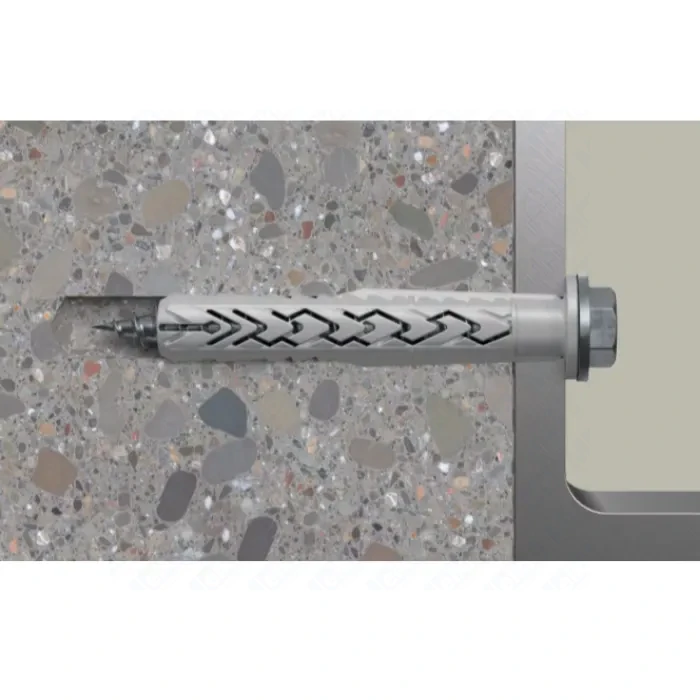

• Installation type: through-fixing; hex-head screws recommended for metal parts, countersunk for timber.

Technical parameters

Storage recommendations

Store in the original closed packaging in a dry place, away from moisture and weather. Recommended storage temperature 5–25 °C. Protect from corrosion and contamination.

FAQ

1) What drill size is required for SXRL 10 x 290 FUS?
Use a Ø 10 mm drill.

2) Which substrates can I use it in?
Concrete (≥ C12/15), solid and perforated bricks, silicates, lightweight concrete, insulation blocks, ceramic blocks and aerated concrete.

3) What does FUS mean?
FUS version includes a screw with SW13 hex head and TX40 drive with an integrated washer – recommended for metal components.

4) What embedment depths are available?
50, 70 and 90 mm; corresponding usable lengths are 240, 220 and 200 mm.

5) Is it suitable for through-fixing?
Yes. SXRL is designed for through-fixing; the minimum hole depth is 300 mm.
