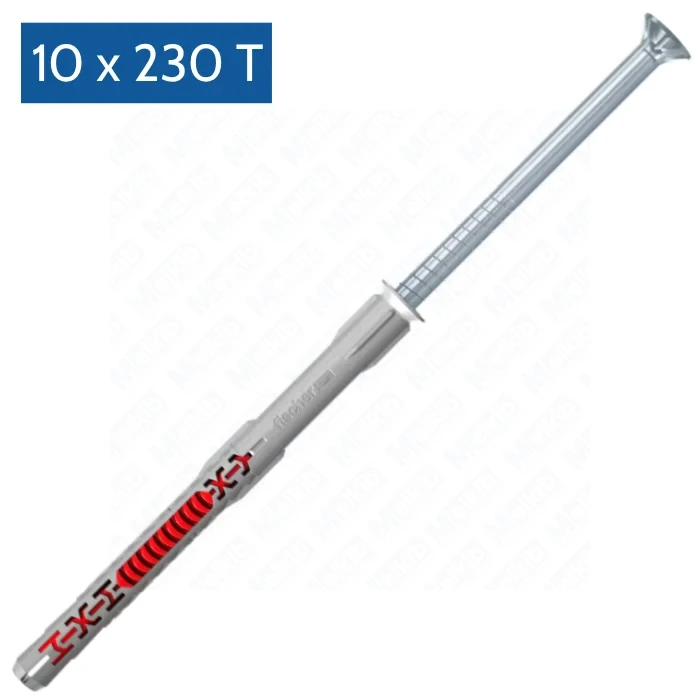

DuoXpand 10×230 T frame anchor with countersunk TX40 screw, electro-galvanized steel, for concrete and masonry, 50 pcs
Product code: 00562162
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

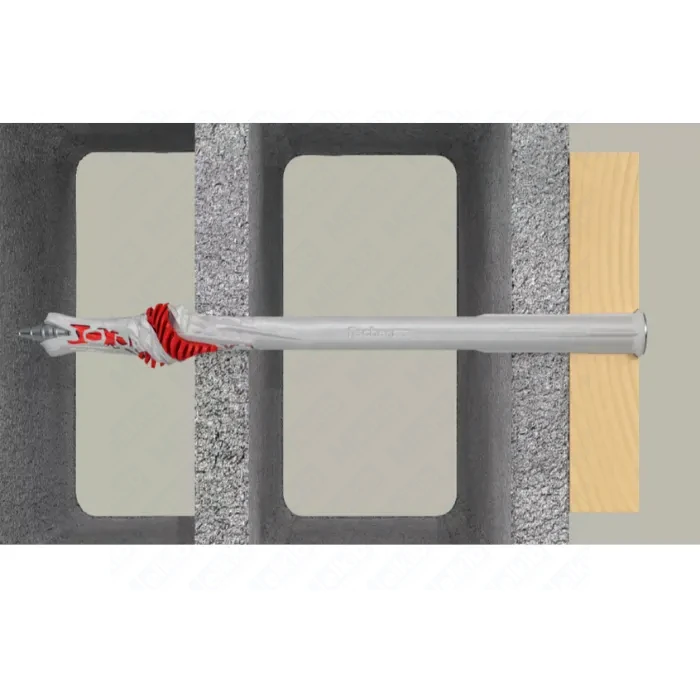

The fischer DuoXpand 10 × 230 T frame anchor with countersunk head screw is a long, universal fixing for concrete and masonry. The lamella expansion zone and material mix ensure secure anchoring even in hollow substrates. The box contains 50 pieces with electro-galvanized steel screws.
Benefits and unique features
- Dual expansion zone – effective in solid and hollow materials.
- Anti-rotation ribs – prevent spinning in the hole during tightening.
- Countersunk TX screw – neat, flush finish after installation.
- Fast through-installation – repeatable and time-saving on site.
- European Technical Assessment (ETA) for multi-point non-structural fixings.
Properties and applications
- Substrates: concrete ≥ C12/15, solid brick, calcium-silicate units (solid and hollow), perforated clay brick, lightweight concrete, aerated concrete; also suitable for dense natural stone and gypsum panels.
- Uses: façade and roof substructures, windows and doors, beams, brackets, wall cabinets, supports, cable trays and ladders.
- Edge safety: lamella geometry reduces cracking and allows fixing closer to edges.
- Durability: electro-galvanized steel screw for increased indoor corrosion resistance.
Technical data
| Parameter | Value |
|---|---|
| System | DuoXpand 10 × 230 T – anchor with countersunk screw |
| European Technical Assessment | YES (ETA) |
| Drill diameter (d0) | 10 mm |
| Min. hole depth for through-installation (h2) | 240 mm |
| Fixture thickness (tfix) at 50 mm embedment | up to 180 mm |
| Fixture thickness (tfix) at 70 mm embedment | up to 160 mm |
| Fixture thickness (tfix) at 140 mm embedment | up to 90 mm |
| Fixture thickness (tfix) at 160 mm embedment | up to 70 mm |
| Anchor length | 230 mm |
| Drive | TX40 |
| Screw material | electro-galvanized steel |
| Packing / quantity | folding box / 50 pcs |
| GTIN (EAN) | 4048962440232 |
Storage recommendations
Store in the original closed packaging in a dry place at 5–25 °C. Protect from moisture, dust, UV and aggressive chemical vapours. Avoid brine contact and condensation.
FAQ
1) Which substrates suit the DuoXpand 10 × 230 T?
Concrete, solid brick, calcium-silicate units (solid/hollow), perforated clay brick, lightweight and aerated concrete, and dense natural stone.
2) What drill bit is required?
10 mm; for through-installation the minimum hole depth is 240 mm.
3) Maximum fixture thickness?
Up to 180 mm at 50 mm embedment; alternatively 160 mm (70 mm), 90 mm (140 mm) or 70 mm (160 mm).
4) What approvals does it have?
European Technical Assessment (ETA) for multi-point non-structural fixings.
