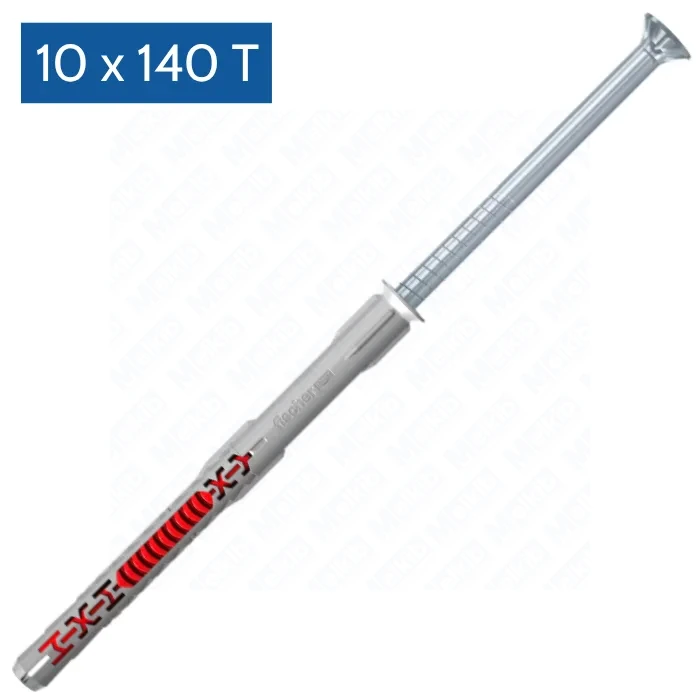

DuoXpand 10×140 T frame anchor with countersunk TX40 screw, electro-galvanized steel, for concrete and masonry, 50 pcs

kolek-ramowy-duoxpand-10x140-t-stozkowy-tx40
Availability: Available 1-3 pcs
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €75.12 75.12
Net price: €61.07
quantity szt.
You gain 31 points [?]
add to wish list
Rating: 0
Vendor: Fischer
Product code: 00562158

Description

The fischer DuoXpand 10 × 140 T frame anchor with countersunk head screw is a universal fixing for secure anchoring in concrete and masonry. The lamella expansion zone and material mix ensure reliable hold even in hollow substrates. The box contains 50 pieces with electro-galvanized steel screws.

Benefits and unique features

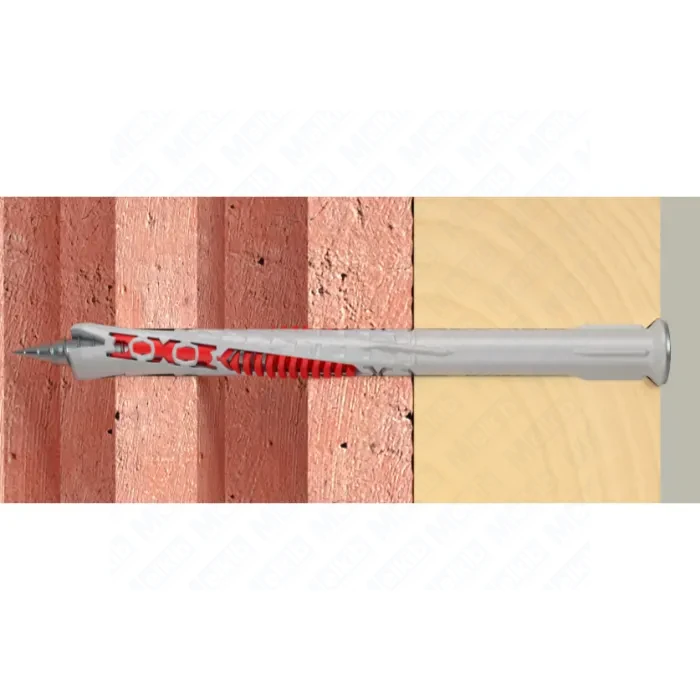

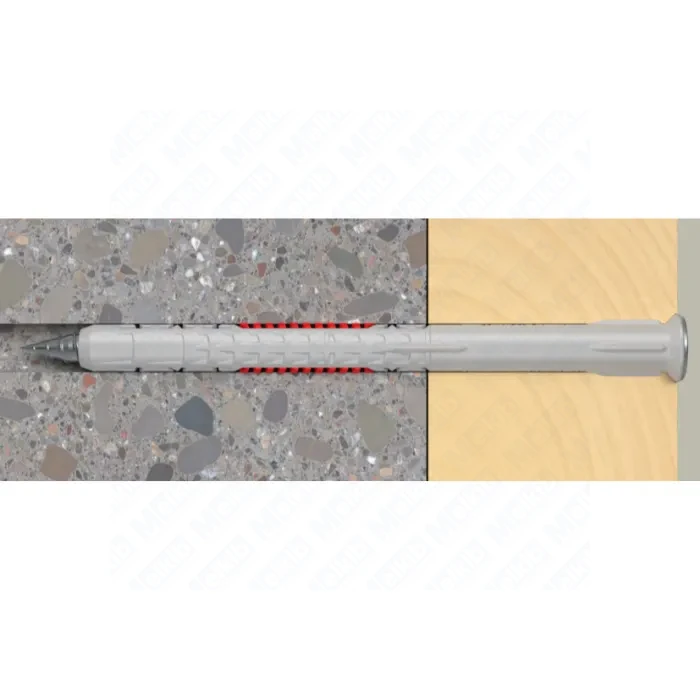

  • Dual expansion zone – effective in solid and hollow materials.
  • Anti-rotation ribs – prevent spinning in the hole during tightening.
  • Countersunk TX screw – neat, flush finish.
  • Through-installation – fast and repeatable on site.
  • ETA for multi-point non-structural fixings in concrete and masonry.

Properties and applications

  • Substrates: concrete ≥ C12/15, solid brick, calcium-silicate units (solid and hollow), perforated clay brick, lightweight concrete units, lightweight concrete and aerated concrete; also dense natural stone and gypsum panels.
  • Uses: façade/roof substructures, windows, doors, beams, brackets, wall cabinets, supports, cable trays and ladders.
  • Edge safety: lamella geometry reduces cracking and allows closer-to-edge fixing.
  • Durability: electro-galvanized steel screw for increased indoor corrosion resistance.

Technical data

Parameter Value
System DuoXpand 10 × 140 T – anchor with countersunk screw
Approvals ETA-21/0324, DoP 0347, REPORT NO.: 21-010-3 (1)
Drill diameter (d0) 10 mm
Min. hole depth for through-installation (h2) 150 mm
Fixture thickness (tfix) at 50 mm embedment up to 90 mm
Fixture thickness (tfix) at 70 mm embedment up to 70 mm
Anchor length 140 mm
Drive TX40
Screw material electro-galvanized steel
Packing / quantity folding box / 50 pcs
GTIN (EAN) 4048962440195

Storage recommendations

Store in the original closed packaging in a dry place at 5–25 °C. Protect from moisture, dust, UV and aggressive chemical vapours. Avoid brine contact and condensation.

FAQ

1) What drill bit is required?
Ø10 mm; for through-installation the minimum hole depth is 150 mm.

2) Maximum fixture thickness?
Up to 90 mm at 50 mm embedment or 70 mm at 70 mm embedment.

3) Which substrates are suitable?
Concrete and most masonry types, including calcium-silicate and perforated clay units, as well as aerated concrete.

4) Does it have approvals?
Yes – ETA-21/0324 and DoP 0347.
